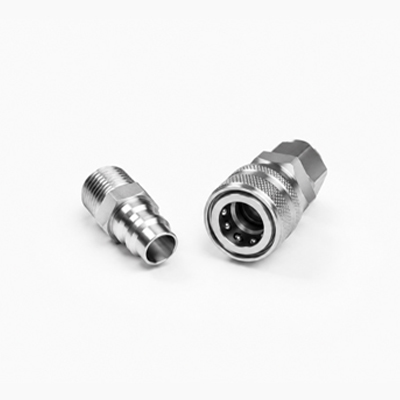

Quick Connect / DF Series / DF Series
| Stems | |||||||
| Basic Ordering Number | End Connection | Cv | Orifice Min. | L | h in. | Download | |
| mm (in.) | |||||||
| DFSA- | D-4T- | 1/4 in. DK-Lok | 2.2 | 4.8 (0.19) | 45.0 (1.77) | 9/16 | [3D]DFSA-D-4T.stp |
| D-6T- | 3/8 in. DK-Lok | 2.8 | 6.1(0.24) | 45.0 (1.77) | 11/16 | ||
| D-6M- | 6 mm DK-Lok | 2.2 | 4.8(0.19) | 45.0 (1.77) | 9/16 | [3D]DFSA-D-6M.stp | |
| M-4N- | 1/4 in. Male NPT | 1.7 | 6.1(0.24) | 40.4 (1.59) | 9/16 | [3D]DFSA-M-4N.stp | |
| M-6N- | 3/8 in. Male NPT | 1.7 | 6.1(0.24) | 40.4 (1.59) | 11/16 | [3D]DFSA-M-6M.stp | |
| F-4N- | 1/4 in. Female NPT | 1.7 | 6.1(0.24) | 40.6 (1.60) | 3/4 | [3D]DFSA-F-4N.stp | |
| F-6N- | 3/8 in. Female NPT | 1.7 | 6.1(0.24) | 42.4 (1.67) | 7/8 | [3D]DFSA-F-6N.stp | |
| DFSB- | D-6T- | 3/8 in. DK-Lok | 2.9 | 7.1 (0.28) | 47.8 (1.88) | 7/8 | [3D]DFSB-D-6T.stp |
| D-8T- | 1/2 in. DK-Lok | 13 | 10.4 (0.41) | 50.5 (1.99) | 7/8 | [3D]DFSB-D-8T.stp | |
| M-6N- | 3/8 in. Male NPT | 7.1 | 10.4(0.41) | 40.4 (1.59) | 7/8 | [3D]DFSB-M-6N.stp | |
| M-8N- | 1/2 in. Male NPT | 11.5 | 12.7(0.50) | 46.7 (1.84) | 7/8 | [3D]DFSB-M-8N.stp | |
| F-6N- | 3/8 in. Female NPT | 7.1 | 11.9(0.47) | 40.4 (1.59) | 1 1/16 | [3D]DFSB-F-6N.stp | |
| F-8N- | 1/2 in. Female NPT | 11.5 | 12.7(0.50) | 46.2 (1.82) | 1 1/16 | [3D]DFSB-F-8N.stp | |
| DFSC- | D-12T- | 3/4 in. DK-Lok | 26 | 15.7(0.62) | 54.6 (2.15) | 1 1/16 | [3D]DFSC-D-12T.stp |
| M-12N- | 3/4 in. Male NPT | 23.6 | 18.3(0.72) | 51.6 (2.03) | 1 1/16 | [3D]DFSC-M-12N.stp | |
| F-12N- | 3/4 in. Female NPT | 23.6 | 18.3(0.72) | 52.8 (2.08) | 1 5/16 | [3D]DFSC-F-12N.stp | |
| DFSD- | D-16T- | 1 in. DK-Lok | 45 | 22.4(0.88) | 62.2 (2.45) | 1 3/8 | [3D]DFSD-D-16T.stp |
| M-16N- | 1 in. Male NPT | 39 | 22.4(0.88) | 59.7 (2.35) | 1 3/8 | [3D]DFSD-M-16N.stp | |
| F-16N- | 1 in. Female NPT | 39 | 22.4(0.88) | 63.2 (2.49) | 1 5/8 | [3D]DFSD-F-16N.stp | |
| Bodis | |||||||
| Basic Ordering Number | End Connection | Orifice Min. | L | D | h in. | Download | |
| mm (in.) | |||||||
| DFBA- | D-4T- | 1/4 in. DK-Lok | 4.8 (0.19) | 45.7 (1.80) | 22.1 (0.87) | 1 1/16 | [3D]DFBA-D-4T.stp |
| D-6T- | 3/8 in. DK-Lok | 7.1 (0.28) | 46.0 (1.81) | 22.1 (0.87) | 1 1/16 | [3D]DFBA-D-6T.stp | |
| D-6M- | 6 mm DK-Lok | 4.8 (0.19) | 45.7 (1.80) | 22.1 (0.87) | 11/16 | [3D]DFBA-D-6M.stp | |
| M-4N- | 1/4 in. Male NPT | 6.4 (0.25) | 39.9 (1.57) | 22.1 (0.87) | 11/16 | [3D]DFBA-M-4N.stp | |
| M-6N- | 3/8 in. Male NPT | 9.4 (0.37) | 39.9 (1.57) | 22.1 (0.87) | 11/16 | [3D]DFBA-M-6N.stp | |
| F-4N- | 1/4 in. Female NPT | 9.7 (0.38) | 38.1 (1.50) | 22.1 (0.87) | 3/4 | [3D]DFBA-F-4N.stp | |
| F-6N- | 3/8 in. Female NPT | 9.7 (0.38) | 41.4 (1.63) | 22.1 (0.87) | 7/8 | [3D]DFBA-F-6N.stp | |
| DFBB- | D-6T- | 3/8 in. DK-Lok | 7.1 (0.28) | 55.1 (2.17) | 33.0 (1.30) | 1 1/16 | [3D]DFBB-D-6T.stp |
| D-8T- | 1/2 in. DK-Lok | 11.9 (0.47) | 56.6 (2.23) | 33.0 (1.30) | 1 1/16 | [3D]DFBB-D-8T.stp | |
| M-6N- | 3/8 in. Male NPT | 10.4 (0.41) | 46.5 (1.83) | 33.0 (1.30) | 1 1/16 | [3D]DFBB-M-6N.stp | |
| M-8N- | 1/2 in. Male NPT | 12.7 (0.50) | 52.8 (2.08) | 33.0 (1.30) | 1 1/16 | [3D]DFBB-M-8N.stp | |
| F-6N- | 3/8 in. Female NPT | 15.0 (0.59) | 43.9 (1.73) | 33.0 (1.30) | 1 1/16 | [3D]DFBB-F-6N.stp | |
| F-8N- | 1/2 in. Female NPT | 16.0 (0.63) | 43.9 (1.73) | 33.0 (1.30) | 1 1/16 | [3D]DFBB-F-8N.stp | |
| DFBC- | D-12T- | 3/4 in. DK-Lok | 15.7 (0.62) | 62.2 (2.45) | 42.2 (1.66) | 1 1/2 | [3D]DFBC-D-12T.stp |
| M-12N- | 3/4 in. Male NPT | 18.3 (0.72) | 59.2 (2.33) | 42.2 (1.66) | 1 1/2 | [3D]DFBC-M-12N.stp | |
| F-12N- | 3/4 in. Female NPT | 22.4 (0.88) | 48.0 (1.89) | 42.2 (1.66) | 1 1/2 | ||
| DFBD- | D-16T- | 1 in. DK-Lok | 22.4 (0.88) | 69.9 (2.75) | 47.8 (1.88) | 1 11/16 | [3D]DFBD-D-16T.stp |
| M-16N- | 1 in. Male NPT | 22.4 (0.88) | 67.3 (2.65) | 47.8 (1.88) | 1 11/16 | ||
| F-16N- | 1 in. Female NPT | 26.9 (1.06) | 53.8 (2.12) | 47.8 (1.88) | 1 11/16 | [3D]DFBD-F-16N.stp | |
