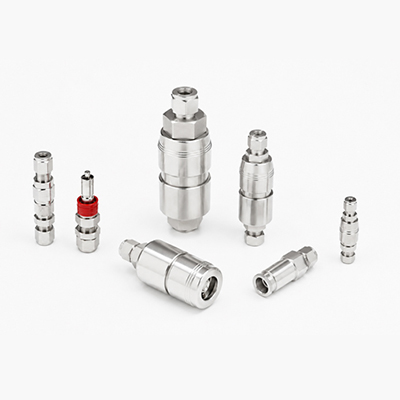

DQ Series

Quick Connect / DQ Series / DQ Series

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

DQS Stems
Series	End Connection	Basic Ordering Number	Cv				L mm(in.)	h Hex. in.	Download
Series	End Connection	SV	SV	DV	Full Flow	SV	DV	h Hex. in.	Download
DQA	1/8 in. DK-Lok	DQSA-D-2T-	0.08	0.08	0.08	58.9 (2.32)	70.4 (2.77)	5/8	[3D]DQSA-D-2T.stp
	1/4 in. DK-Lok	DQSA-D-4T-	0.3	0.2	0.4	59.9 (2.36)	61.5 (2.42)	5/8	[3D]DQSA-D-4T.stp
	6 mm DK-Lok	DQSA-D-6M-	0.3	0.2	0.4	59.9 (2.36)	61.5 (2.42)	5/8	[3D]DQSA-D-6M.stp
	1/8 in. Male NPT	DQSA-M-2N-	0.3	0.2	0.4	52.6 (2.07)	54.1 (2.13)	5/8	[3D]DQSA-M-2N.stp
	1/4 in. Male NPT	DQSA-M-4N-	0.3	0.2	0.4	56.4 (2.22)	57.9 (2.28)	5/8	[3D]DQSA-M-4N.stp
	1/8 in. Female NPT	DQSA-F-2N-	0.3	0.2	0.4	51.1 (2.01)	52.6 (2.07)	5/8	[3D]DQSA-F-2N.stp
	1/4 in. Female NPT	DQSA-F-4N-	0.3	0.2	0.4	57.4 (2.26)	58.9 (2.32)	3/4	[3D]DQSA-F-4N.stp
DQB	3/8 in. DK-Lok	DQSB-D-6T-	1	0.5	1.5	64.0 (2.52)	67.1 (2.64)	3/4	[3D]DQSB-D-6T.stp
	10 mm DK-Lok	DQSB-D-10M-	1	0.5	1.5	67.3 (2.65)	70.4 (2.77)	3/4	[3D]DQSB-D-10M.stp
	1/4 in. Male NPT	DQSB-M-4N-	0.9	0.5	1.5	58.9 (2.32)	61.9 (2.44)	3/4
	3/8 in. Male NPT	DQSB-M-6N-	0.8	0.5	1.6	59.7 (2.35)	62.7 (2.47)	3/4	[3D]DQSB-M-6N.stp
	1/4 in. Female NPT	DQSB-F-4N-	0.9	0.5	1.5	59.7 (2.35)	62.7 (2.47)	3/4	[3D]DQSB-F-4N.stp
	3/8 in. Female NPT	DQSB-F-6N-	0.8	0.5	1.6	59.7 (2.35)	62.7 (2.47)	7/8	[3D]DQSB-F-6N.stp
DQC	1/2 in. DK-Lok	DQSC-D-8T-	2.4	1.5	3.3	75.2 (2.96)	80.3 (3.16)	15/16	[3D]DQSC-D-8T.stp
	12 mm DK-Lok	DQSC-D-12M-	2.4	1.5	3.3	75.2 (2.96)	60.3 (3.16)	15/16	[3D]DQSC-D-12M-R.stp
	1/2 in. Male NPT	DQSC-M-8N-	2	1.3	3.1	72.1 (2.84)	77.2 (3.04)	15/16	[3D]DQSC-M-8N.stp
	1/2 in. Female NPT	DQSC-F-8N-	2	1.3	3.1	71.6 (2.82)	76.7 (3.02)	1 1/16	[3D]DQSC-F-8N-R.stp

DQVS Stems
Series	End Connection	Basic Ordering Number	Cv				L mm(in.)	h Hex. in.	Download
Series	End Connection	DV	SV	DV	Full Flow	SV	DV	h Hex. in.	Download
DQA	1/8 in. DK-Lok	DQVSA-D-2T-	0.08	0.08	0.08	58.9 (2.32)	70.4 (2.77)	5/8	[3D]DQVSA-D-2T.stp
	1/4 in. DK-Lok	DQVSA-D-4T-	0.3	0.2	0.4	59.9 (2.36)	61.5 (2.42)	5/8	[3D]DQVSA-D-4T.stp
	6 mm DK-Lok	DQVSA-D-6M-	0.3	0.2	0.4	59.9 (2.36)	61.5 (2.42)	5/8	[3D]DQVSA-D-6M.stp
	1/8 in. Male NPT	DQVSA-M-2N-	0.3	0.2	0.4	52.6 (2.07)	54.1 (2.13)	5/8	[3D]DQVSA-M-2N.stp
	1/4 in. Male NPT	DQVSA-M-4N-	0.3	0.2	0.4	56.4 (2.22)	57.9 (2.28)	5/8	[3D]DQVSA-M-4N.stp
	1/8 in. Female NPT	DQVSA-F-2N-	0.3	0.2	0.4	51.1 (2.01)	52.6 (2.07)	5/8	[3D]DQVSA-F-2N.stp
	1/4 in. Female NPT	DQVSA-F-4N-	0.3	0.2	0.4	57.4 (2.26)	58.9 (2.32)	3/4	[3D]DQVSA-F-4N.stp
DQB	3/8 in. DK-Lok	DQVSB-D-6T-	1	0.5	1.5	64.0 (2.52)	67.1 (2.64)	3/4	[3D]DQVSB-D-6T.stp
	10 mm DK-Lok	DQVSB-D-10M-	1	0.5	1.5	67.3 (2.65)	70.4 (2.77)	3/4	[3D]DQVSB-D-10M.stp
	1/4 in. Male NPT	DQVSB-M-4N-	0.9	0.5	1.5	58.9 (2.32)	61.9 (2.44)	3/4	[3D]DQVSB-M-4N.stp
	3/8 in. Male NPT	DQVSB-M-6N-	0.8	0.5	1.6	59.7 (2.35)	62.7 (2.47)	3/4	[3D]DQVSB-M-6N.stp
	1/4 in. Female NPT	DQVSB-F-4N-	0.9	0.5	1.5	59.7 (2.35)	62.7 (2.47)	3/4	[3D]DQVSB-F-4N.stp
	3/8 in. Female NPT	DQVSB-F-6N-	0.8	0.5	1.6	59.7 (2.35)	62.7 (2.47)	7/8	[3D]DQVSB-F-6N.stp
DQC	1/2 in. DK-Lok	DQVSC-D-8T-	2.4	1.5	3.3	75.2 (2.96)	80.3 (3.16)	15/16	[3D]DQVSC-D-8T.stp
	12 mm DK-Lok	DQVSC-D-12M-	2.4	1.5	3.3	75.2 (2.96)	60.3 (3.16)	15/16	[3D]DQVSC-D-12M.stp
	1/2 in. Male NPT	DQVSC-M-8N-	2	1.3	3.1	72.1 (2.84)	77.2 (3.04)	15/16	[3D]DQVSC-M-8N.stp
	1/2 in. Female NPT	DQVSC-F-8N-	2	1.3	3.1	71.6 (2.82)	76.7 (3.02)	1 1/16	[3D]DQVSC-F-8N.stp

DQS Stems-Bulkhead
Series	End Connection	Basic Ordering Number	Panel Thickness Max. mm (in.)	Panel Hole Dia. Min. mm (in.)	L mm (in.)		h Hex. in.	Download
Series	End Connection	SV	Panel Thickness Max. mm (in.)	Panel Hole Dia. Min. mm (in.)	SV	DV	h Hex. in.	Download
DQA	1/4 in. DK-Lok	DQSA-BH-D-4T-	6.4 (0.25)	11.9 (15/32)	69.6 (2.74)	71.1 (2.80)	5/8	[3D]DQSA-BH-D-4T.stp
DQA	6 mm DK-Lok	DQSA-BH-D-6M-	6.4 (0.25)	11.5 (29/64)	69.6 (2.74)	71.1 (2.80)	16 mm
DQB	3/8 in. DK-Lok	DQSB-BH-D-6T-	6.9 (0.27)	15.1 (19/32)	74.2 (2.92)	76.0 (3.07)	3/4	[3D]DQSB-BH-D-6T.stp
DQB	10 mm DK-Lok	DQSB-BH-D-10M-	6.9 (0.27)	16.7 (21/32)	77.7 (3.06)	78.7 (3.10)	22 mm
DQC	1/2 in. DK-Lok	DQSC-BH-D-8T-	6.6 (0.26)	19.8 (25/32)	87.1 (3.43)	92.2 (3.63)	15/16	[3D]DQSC-BH-D-8T.stp
DQC	12 mm DK-Lok	DQSC-BH-D-12M-	6.6 (0.26)	19.4 (49/64)	87.1 (3.43)	92.2 (3.63)	24 mm

DQVS Stems-Bulkhead
Series	End Connection	Basic Ordering Number	Panel Thickness Max. mm (in.)	Panel Hole Dia. Min. mm (in.)	L mm (in.)		h Hex. in.	Download
Series	End Connection	DV	Panel Thickness Max. mm (in.)	Panel Hole Dia. Min. mm (in.)	SV	DV	h Hex. in.	Download
DQA	1/4 in. DK-Lok	DQVSA-BH-D-4T-	6.4 (0.25)	11.9 (15/32)	69.6 (2.74)	71.1 (2.80)	5/8	[3D]DQVSA-BH-D-4T.stp
DQA	6 mm DK-Lok	DQVSA-BH-D-6M-	6.4 (0.25)	11.5 (29/64)	69.6 (2.74)	71.1 (2.80)	16 mm
DQB	3/8 in. DK-Lok	DQVSB-BH-D-6T-	6.9 (0.27)	15.1 (19/32)	74.2 (2.92)	76.0 (3.07)	3/4	[3D]DQVSB-BH-D-6T.stp
DQB	10 mm DK-Lok	DQVSB-BH-D-10M-	6.9 (0.27)	16.7 (21/32)	77.7 (3.06)	78.7 (3.10)	22 mm	[3D]DQVSB-BH-D10M.stp
DQC	1/2 in. DK-Lok	DQVSC-BH-D-8T-	6.6 (0.26)	19.8 (25/32)	87.1 (3.43)	92.2 (3.63)	15/16	[3D]DQVSC-BH-D-8T.stp
DQC	12 mm DK-Lok	DQVSC-BH-D-12M-	6.6 (0.26)	19.4 (49/64)	87.1 (3.43)	92.2 (3.63)	24 mm

Bodies
Series	End Connection	Basic Ordering Number	L mm (in.)	D mm (in.)	Download
DQA	1/8 in. DK-Lok	DQBA-D-2T-	57.4 (2.26)	23.1 (0.91)	[3D]DQBA-D-2T.stp
	1/4 in. DK-Lok	DQBA-D-4T-	56.4 (2.30)	23.1 (0.91)	[3D]DQBA-D-4T.stp
	6 mm DK-Lok	DQBA-D-6M-	58.4 (2.30)	23.1 (0.91)	[3D]DQBA-D-6M.stp
	1/8 in. Male NPT	DQBA-M-2N-	51.1 (2.01)	23.1 (0.91)	[3D]DQBA-M-2N.stp
	1/4 in. Male NPT	DQBA-M-4N-	54.9 (2.16)	23.1 (0.91)	[3D]DQBA-M-4N.stp
	1/4 in. Male ISO	DQBA-M-4R-	54.9 (2.16)	23.1 (0.91)
	1/8 in. Female NPT	DQBA-F-2N-	54.9 (2.16)	23.1 (0.91)	[3D]DQBA-F-2N.stp
	1/4 in. Female NPT	DQBA-F-4N-	61.5 (2.42)	23.1 (0.91)	[3D]DQBA-F-4N.stp
	1/4 in. Female ISO	DQBA-F-4R-	61.5 (2.42)	23.1 (0.91)	[3D]DQBA-F-4R.stp
DQB	3/8 in. DK-Lok	DQBB-D-6T-	65.5 (2.58)	26.2 (1.03)	[3D]DQBB-D-6T-R.stp
	10 mm DK-Lok	DQBB-D-10M-	68.1 (2.68)	26.2 (1.03)	[3D]DQBB-D-10M-R.stp
	1/4 in. Male NPT	DQBB-M-4N-	60.5 (2.38)	26.2 (1.03)	[3D]DQBB-M-4N-R.stp
	3/8 in. Male NPT	DQBB-M-6N-	60.5 (2.38)	26.2 (1.03)	[3D]DQBB-M-6N-R.stp
	3/8 in. Male ISO	DQBB-M-6R-	60.5 (2.38)	26.2 (1.03)	[3D]DQBB-M-6R-R.stp
	1/4 in. Female NPT	DQBB-F-4N-	64.5 (2.54)	26.2 (1.03)	[3D]DQBB-F-4N-R.stp
	3/8 in. Female NPT	DQBB-F-6N-	65.3 (2.57)	26.2 (1.03)	[3D]DQBB-F-6N-R.stp
	3/8 in. Female ISO	DQBB-F-6R-	65.3 (2.57)	26.2 (1.03)	[3D]DQBB-F-6R-R.stp
DQC	1/2 in. DK-Lok	DQBC-D-8T-	78.5 (3.09)	30.7 (1.21)	[3D]DQBC-D-8T-R.stp
	12 mm DK-Lok	DQBC-D-12M-	78.5 (3.09)	30.7 (1.21)	[3D]DQBC-D-12M-R.stp
	1/2 in. Male NPT	DQBC-M-8N-	75.4 (2.97)	30.7 (1.21)	[3D]DQBC-M-8N-R.stp
	1/2 in. Male ISO	DQBC-M-8R-	75.4 (2.97)	30.7 (1.21)	[3D]DQBC-M-8R-R.stp
	1/2 in. Female NPT	DQBC-F-8N-	81.8 (3.22)	30.7 (1.21)	[3D]DQBC-F-8N-R.stp
	1/2 in. Female ISO	DQBC-F-8R-	81.8 (3.22)	30.7 (1.21)	[3D]DQBC-F-8R-R.stp

Bodies-Bulkhead
Series	End Connection	Basic Ordering Number	Panel Thickness Max.	Panel Hole Dia. Min.	L	D	Download
Series	End Connection	Basic Ordering Number	mm (in.)				Download
DQA	1/4 in. DK-Lok	DQBA-BH-D-4T-	6.4 (0.25)	11.9 (15/32)	67.8 (2.67)	23.1 (0.91)	[3D]DQBA-BH-D-4T.stp
DQA	6 mm DK-Lok	DQBA-BH-D-6M-	6.4 (0.25)	11.9 (15/32)	67.8 (2.67)	23.1 (0.91)
DQB	3/8 in. DK-Lok	DQBB-BH-D-6T-	6.9 (0.27)	15.1 (19/32)	75.7 (2.98)	26.2 (1.03)	[3D]DQBB-BH-D-6T-R.stp
DQB	10 mm DK-Lok	DQBB-BH-D-10M-	6.9 (0.27)	16.7 (21/32)	75.9 (2.99)	26.2 (1.03)
DQC	1/2 in. DK-Lok	DQBC-BH-D-8T-	6.6 (0.26)	19.8 (25/32)	90.4 (3.56)	30.7 (1.21)	[3D]DQBC-BH-D-8T-R.stp
DQC	12 mm DK-Lok	DQBC-BH-D-12M-	6.6 (0.26)	19.4 (49/64)	90.4 (3.56)	30.7 (1.21)
