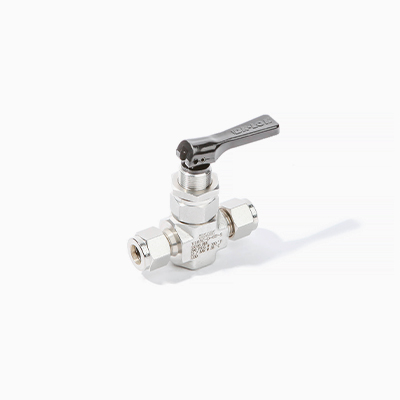

Toggle Valves
Valves / Rising Plug & Toggle Valves / V103
| V103A | |||||||||||||||
| Basic Ordering Number | End Connection | Orifice | Cv | Dimensions mm (in.) | Download | ||||||||||
| Inlet | Outlet | in. | mm | L | L1 | L2 | D | E | F | G | A | ||||
| V103A- | M-2N- | 1/8 in. Male NPT | 0.08 | 2 | 0.11 | 38.1 (1.5) | 19.05 (0.75) | 19.05 (0.75) | 23.4 (0.92) | 10.6 (0.42) | 27.0 (1.06) | 13.5 (0.53) | 72.9 (2.87) | [3D]V103A-M-2N.stp | |
| D-2T- | 1/8 in. DK-Lok | 49.8 (1.96) | 24.9 (0.98) | 24.9 (0.98) | 32.8 (1.29) | [3D]V103A-D-2T.stp | |||||||||
| D-3M- | 3 mm DK-Lok | [3D]V103A-D-3M.stp | |||||||||||||
| MD-2N2T- | 1/8 in. Male NPT | 1/8 in. DK-Lok | 43.9 (1.73) | 19.05 (0.75) | 24.9 (0.98) | [3D]V103A-MD-2N2T.stp | |||||||||
| V103B- | F-2N- | 1/8 in. Female NPT | 0.125 | 3.2 | 0.2 | 41.4 (1.63) | 20.6 (0.81) | 20.6 (0.81) | 21.8 (0.86) | 9.5 (0.38) | 30.2 (1.19) | 13.5 (0.53) | 71.4 (2.81) | [3D]V103B-F-2N.stp | |
| M-2N- | 1/8 in. Male NPT | 43.7 (1.72) | 21.8 (0.86) | 21.8 (0.86) | 31.2 (1.23) | [3D]V103B-M-2N.stp | |||||||||
| M-4N- | 1/4 in. Male NPT | 49.8 (1.96) | 24.9 (0.98) | 24.9 (0.98) | 34.5 (1.36) | [3D]V103B-M-4N.stp | |||||||||
| D-4T- | 1/4 in. DK-Lok | 57.4 (2.26) | 28.7 (1.13) | 28.7 (1.13) | 38.1 (1.5) | [3D]V103B-D-4T.stp | |||||||||
| D-6M- | 6 mm DK-Lok | 57.4 (2.26) | 28.7 (1.13) | 28.7 (1.13) | 38.1 (1.5) | [3D]V103B-D-6M.stp | |||||||||
| D-8M- | 8 mm DK-Lok | 56.4 (2.22) | 28.2 (1.11) | 28.2 (1.11) | 37.6 (1.48) | [3D]V103B-D-8M.stp | |||||||||
| MF-2N- | 1/8 in. Male NPT | 1/8 in. Female NPT | 41.4 (1.63) | 20.6 (0.81) | 20.6 (0.81) | 30.2 (1.19) | [3D]V103B-MF-2N.stp | ||||||||
| MD-4N4T- | 1/4 in. Male NPT | 1/4 in. DK-Lok | 53.6 (2.11) | 24.9 (0.98) | 28.7 (1.13) | 38.1 (1.5) | [3D]V103B-MD-4N4T.stp | ||||||||
| V103C- | F-4N- | 1/4 in. Female NPT | 0.25 | 6.4 | 0.7 | 53.8 (2.12) | 26.9 (1.06) | 26.9 (1.06) | 26.9 (1.06) | 12.7 (0.5) | 39.6 (1.56) | 16.8 (0.66) | 90.4 (3.56) | [3D]V103C-F-4N.stp | |
| M-6N- | 3/8 in. Male NPT | 57.2 (2.25) | 28.4 (1.12) | 28.4 (1.12) | 41.1 (1.62) | [3D]V103C-M-6N.stp | |||||||||
| D-6T- | 3/8 in. DK-Lok | 65.5 (2.58) | 32.8 (1.29) | 32.8 (1.29) | 45.5 (1.79) | [3D]V103C-D-6T.stp | |||||||||
| D-8T- | 1/2 in. DK-Lok | 71.1 (2.8) | 35.6 (1.4) | 35.6 (1.4) | 48.3 (1.9) | [3D]V103C-D-8T.stp | |||||||||
| D-10M- | 10 mm DK-Lok | 69.1 (2.72) | 34.5 (1.36) | 34.5 (1.36) | 47.2 (1.86) | [3D]V103C-D-10M.stp | |||||||||
| D-12M- | 12 mm DK-Lok | 74.2 (2.92) | 37.1 (1.46) | 37.1 (1.46) | 49.8 (1.96) | [3D]V103C-D-12M.stp | |||||||||
