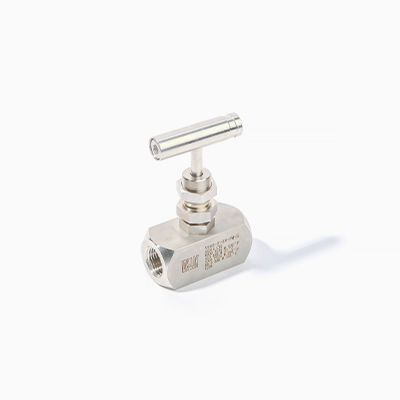

Rising Stem Plug Valves
Valves / Rising Plug & Toggle Valves / V96
| V96 | |||||||||||
| Basic Ordering Number | End Connections | Orifice mm(in.) | Cv | Dimensions, mm(in.) | Download | ||||||
| Inlet | Outlet | L | L1 | L2 | D | H | |||||
| V96A- | F-4N | 1/4 in. Female NPT | 4.8 (0.187) | 0.63 | 56.9 (2.24) | 28.4 (1.12) | 28.4 (1.12) | 12.7 (0.5) | 95.8 (3.77) | [3D]V96A-F-4N.stp | |
| MF-4N | 1/4 in. Male NPT | 1/4 in. Female NPT | 73.4 (2.90) | 45.2 (1.78) | [3D]V96A-MF-4N.stp | ||||||
| MF-8N4N | 1/2 in. Male NPT | 1/4 in. Female NPT | 76.5 (3.01) | 48.0 (1.89) | [3D]V96A-MF-8N4N.stp | ||||||
| V96A-G4*- | F-4N | 1/4 in. Female NPT | 72.9 (2.87) | 28.4 (1.12) | 44.4 (1.75) | [3D]V96A-G4-F4N.stp | |||||
| MF-8N4N | 1/2 in. Male NPT | 1/4 in. Female NPT | 124 (4.87) | 79.2 (3.12) | [3D]V96A-G4-MF-8N4N.stp | ||||||
| V96B | F-8N | 1/2 in. Female NPT | 6.4 (0.25) | 1.8 | 67.6 (2.66) | 33.8 (1.33) | 33.8 (1.33) | 16.0 (0.63) | 97.3 (3.83) | [3D]V96B-F-8N.stp | |
| MF-8N | 1/2 in. Male NPT | 1/2 in. Female NPT | 88.6 (3.49) | 54.9 (2.16) | |||||||
| MF-12N8N | 3/4 in. Male NPT | 1/2 in. Female NPT | [3D]V96B-MF-12N8N.stp | ||||||||
| V96B-G8*- | F-8N | 1/2 in. Female NPT | 90.9 (3.58) | 33.8 (1.33) | 57.2 (2.25) | [3D]V96B-G8-F-8N.stp | |||||
| MF-8N | 1/2 in. Male NPT | 1/2 in. Female NPT | 142 (5.58) | 84.6 (3.33) | |||||||
| MF-12N8N | 3/4 in. Male NPT | 1/2 in. Female NPT | [3D]V96B-G8-MF-12N8N.stp | ||||||||
