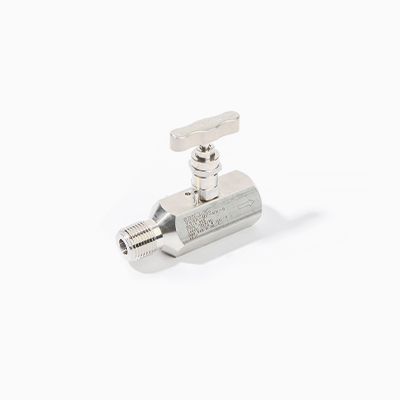

Gauge Root Valves
Valves / Manifolds & Gauge Root / V46
| V46 Series | ||||||||
| Valve Ordering Number | End Connection NPT | Orifice mm(in.) | Body Length mm (in.) L | MAX. OPEN mm (in.) H | SQ mm (in.) | G mm (in.) | A mm (in.) | Download |
| V46G-8N-S | 1/2 Male to 1/2 in. Female | 5.0 (0.20) | 90.0 (3.54) | 85.9(3.38) | 32(1.26) | - | 50.00(1.97) | [3D]V46G-8N.stp |
| V46GR-8N-S | 1/2 Male to 1/2 in. Female | 136.0 (5.35) | 38.10(1.50) | [3D]V46GR-8N.stp | ||||
| V46GR-12N8N-S | 3/4 Male to 1/2 in. Female | 136.0 (5.35) | [3D]V46GR-12N8N.stp | |||||
| V46GRL-8N-S | 1/2 Male to 1/2 in. Female | 184.0 (7.24) | [3D]V46GRL-8N.stp | |||||
| V46GRL-12N8N-S | 3/4 Male to 1/2 in. Female | 184.0 (7.24) | [3D]V46GRL-12N8N.stp | |||||
| V46V2-8N-S | 1/2 Male to 1/2 in. Female | 119.0 (4.68) | ||||||
| V46V2-F-8N-S | 1/2 Female to 1/2 in. Female | 109.0 (4.29) |
