Bleed Valves

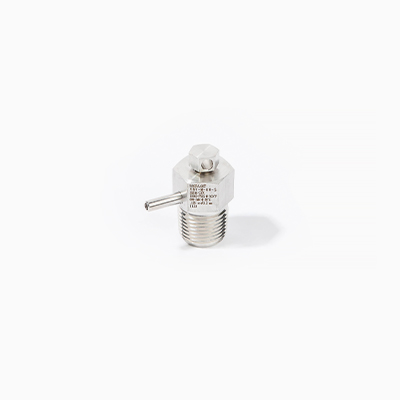

VBV Series
Valves / Bleed & Purge Valves / VBV Series
| VBV Series | |||||||||
| Basic Ordering No. | End Connection | Orifice | Cv | Dimensions in. (mm) | Download | ||||
| Inlet | Outlet | in.(mm) | L | L1 | D | h Hex | |||
| VBV-M-2N- | 1/8" Male NPT | O.D. 3/16” Tube Stub | 0.125 (3.2) | 0.25 | 1.34 (34.03) | 0.94 (23.87) | 0.75 (19.05) | 5/8 (15.87) | [3D]VBV-M-2N.stp |
| VBV-M-4N- | 1/4” Male NPT | 0.69 (17.52) | [3D]VBV-M-4N.stp | ||||||
| VBV-M-6N- | 3/8” Male NPT | 1.47 (37.33) | 1.03 (26.16) | 0.75 (19.05) | 7/8 (22.22) | [3D]VBV-M-6N.stp | |||
| VBV-M-8N- | 1/2” Male NPT | 0.69 (17.52) | [3D]VBV-M-8N.stp | ||||||
