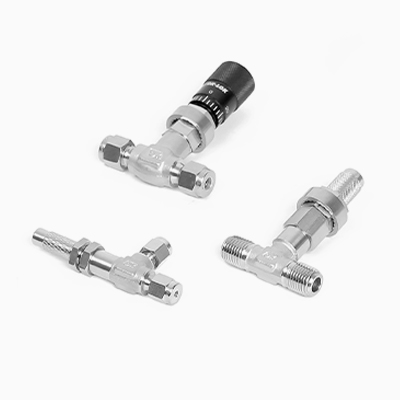

VM Series

Metering Valves

Valves / Regulator & Metering Valves / VM Series

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download
VM Series
Basic Ordering NumberAngle patternEnd Connections Inlet & OutletDimensions in. (mm)Download
ABCDE
VM1D-D1T-1/16 in.DK-Lok2.34 (59.4)1.56 (39.6)0.92 (23.4)0.38 (9.6)-[3D]VM1D-D-1T.stp
D2T-1/8 in.DK-Lok1.90 (48.3)[3D]VM1D-D-2T.stp
D4T-1/4 in.DK-Lok2.04 (51.8)[3D]VM1D-D-4T.stp
D3M-3mmDK-Lok1.90 (48.3)[3D]VM1D-D-3M.stp
D6M-6mmDK-Lok2.04 (51.8)[3D]VM1D-D-6M.stp
D1T-A-1/16 in.DK-Lok3.22 (81.8)0.81 (20.6)0.88 (22.4)[3D]VM1D-D-1T-A.stp
D2T-A-1/8 in.DK-Lok3.32 (84.3)0.98 (24.9)0.98 (24.9)[3D]VM1D-D-2T-A.stp
VM3D-D2T-1/8 in.DK-Lok2.78 (70.6)2.02 (51.3)1.56 (39.6)0.50 -12.7-[3D]VM3D-D-2T.stp
D4T-1/4 in.DK-Lok2.20 (55.9)
D3M-3mmDK-Lok2.02 (51.3)[3D]VM3D-D-3M.stp
D6M-6mmDK-Lok2.20 (55.9)[3D]VM3D-D-6M.stp
D2T-A-1/8 in.DK-Lok3.30 (83.8)1.01 (25.7)1.07 (27.2)1.01 (25.7)[3D]VM3D-D-2T-A.stp
D4T-A-1/4 in.DK-Lok3.39 (86.1)1.10 (27.9)1.10 (27.9)[3D]VM3D-D-4T-A.stp
M2N-1/8 in.Male NPT2.78 (70.6)1.50 (38.1)1.56 (39.6)-[3D]VM3D-M-2N.stp
M4N-1/4 in.Male NPT1.96 (49.8)[3D]VM3D-M-4N.stp
F2N-1/8 in. Female NPT2.78 (70.6)1.94 (49.3)[3D]VM3D-F-2N.stp
F2N-A-1/8 in.Female NPT3.26 (82.8)0.98 (24.9)1.07 (27.2)0.97 (24.6)
VM6D-D4T-1/4 in.DK-Lok2.82 (71.6)2.34 (59.4)1.26 (32.0)1.13 (28.7)-[3D]VM6D-D-4T.stp
D6T-3/8 in.DK-Lok2.46 (62.5)[3D]VM6D-D-6T.stp
D6M-6mmDK-Lok2.34 (59.4)[3D]VM6D-D-6M.stp
D4T-A-1/4 in.DK-Lok3.77 (95.8)1.17 (29.7)1.04 (26.4)1.17 (29.7)[3D]VM6D-D-4T-A.stp
M4N-1/4 in.Male NPT2.82 (71.6)2.00 (50.8)1.26 (32.0)-[3D]VM6D-M-4N.stp
