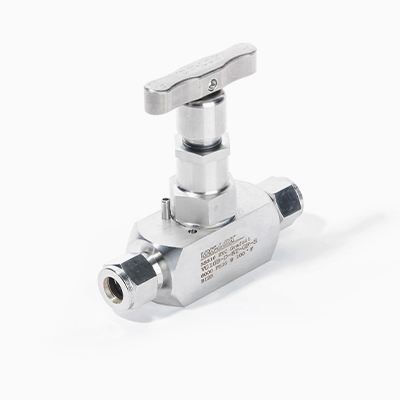

General Utility Service Needle Valves
Valves / Needle Valves / VG16
| VG16 | |||||||||||||
| Valve Basic Ordering Number | End Connections | Orifice mm(in.) | Cv | DIMENSION, mm(in.) | Download | ||||||||
| Inlet | Outlet | G | D | H | A | E | B | C | |||||
| VG16A | F-4N | 1/4” Female NPT | 5.0(0.20) | 0.45 | 45(1.77) | 12.7(0.50) | 81.2(3.20) | 54.1(2.13) | - | - | - | [3D]VG16A-F-4N.stp | |
| F-4N-A | 0.55 | - | - | 21.6(0.85) | 38.1(1.50) | 25.4(1.00) | [3D]VG16A-F-4N-A.stp | ||||||
| F-6N | 3/8” Female NPT | 0.45 | 12.7(0.50) | 57.2(2.25) | - | - | - | [3D]VG16A-F-6N.stp | |||||
| F-6N-A | 0.55 | - | - | 27.9(1.10) | 44.5(1.75) | 31.8(1.25) | |||||||
| F-8N | 1/2” Female NPT | 0.45 | 16.0(0.63) | 84.6(3.33) | 66.8(2.63) | - | - | - | [3D]VG16A-F-8N.stp | ||||
| F-8N-A | 0.55 | - | - | 31.2(1.23) | 51.0(2.00) | 33.3(1.31) | |||||||
| MF-4N | 1/4” Male NPT | 1/4” Female NPT | 0.45 | 12.7(0.50) | 81.2(3.20) | 60.5(2.38) | - | [3D]VG16A-MF-4N.stp | |||||
| MF-6N | 3/8” Male NPT | 3/8” Female NPT | |||||||||||
| MF-8N | 1/2” Male NPT | 1/2” Female NPT | 16.0(0.63) | 84.6(3.33) | 70.0(2.76) | [3D]VG16A-MF-8N.stp | |||||||
| SW-4P | 1/4” Pipe Socket weld | 12.7(0.50) | 81.2(3.20) | 57.2(2.25) | |||||||||
| SW-6P | 3/8” Pipe Socket weld | 16.0(0.63) | 84.6(3.33) | ||||||||||
| SW-8P | 1/2” Pipe Socket weld | 19.1(0.75) | 87.6(3.45) | 63.5(2.50) | [3D]VG16A-SW-8P.stp | ||||||||
| SW-4T | 1/4” Tube Socket weld | 12.7(0.50) | 81.2(3.20) | 50.8(2.00) | [3D]VG16A-SW-4T.stp | ||||||||
| SW-6T | 3/8” Tube Socket weld | [3D]VG16A-SW-6T.stp | |||||||||||
| SW-8T | 1/2” Tube Socket weld | 57.2(2.25) | [3D]VG16A-SW-8T.stp | ||||||||||
| SW-6M | 6mm Tube Socket weld | 60.5(2.38) | |||||||||||
| SW-8M | 8mm Tube Socket weld | 51.0(2.00) | [3D]VG16A-SW-8M.stp | ||||||||||
| SW-10M | 10mm Tube Socket weld | ||||||||||||
| SW-12M | 12mm Tube Socket weld | 57.2(2.25) | |||||||||||
| VG16B | F-8N | 1/2” Female NPT | 8.0(0.31) | 1.2 | 64(2.52) | 16.0(0.63) | 98.3(3.87) | 70.0(2.76) | - | - | - | [3D]VG16B-F-8N.stp | |
| F-8N-A | 1/2” Female NPT | 1.6 | - | - | 31.2(1.23) | 51.0(2.00) | 35.1(1.38) | [3D]VG16B-F-8N-A.stp | |||||
| F-12N | 3/4” Female NPT | 1.2 | 19.1(0.75) | 101(3.98) | 76.2(3.00) | - | - | - | [3D]VG16B-F-12N.stp | ||||
| F-12N-A | 3/4” Female NPT | 1.6 | - | - | 40.6(1.60) | 63.5(2.50) | 38.1(1.50) | [3D]VG16B-F-12N-A.stp | |||||
| F-16N | 1” Female NPT | 1.2 | 25.4(1.00) | 108(4.25) | 88.9(3.50) | - | - | - | [3D]VG16B-F-16N.stp | ||||
| F-16N-A | 1” Female NPT | 1.6 | - | - | 40.6(1.60) | 70.0(2.76) | 44.5(1.75) | [3D]VG16B-F-16N-A.stp | |||||
| MF-8N | 1/2” Male NPT | 1/2” Female NPT | 1.2 | 16.0(0.63) | 98.3(3.87) | 76.2(3.00) | - | [3D]VG16B-MF-8N.stp | |||||
| MF-12N | 3/4” Male NPT | 3/4” Female NPT | 19.1(0.75) | 101(3.98) | 79.6(3.13) | [3D]VG16B-MF-12N.stp | |||||||
| MF-16N | 1” Male NPT | 1” Female NPT | 25.4(1.00) | 108(4.25) | 88.9(3.50) | [3D]VG16B-MF-16N.stp | |||||||
| SW-8P | 1/2” Pipe Socket weld | 19.1(0.75) | 101(3.98) | 66.8(2.63) | [3D]VG16B-SW-8P.stp | ||||||||
| SW-12P | 3/4” Pipe Socket weld | 22.4(0.88) | 105(4.13) | 82.6(3.25) | [3D]VG16B-SW-12P.stp | ||||||||
| SW-16P | 1” Pipe Socket weld | 25.4(1.00) | 108(4.25) | 88.9(3.50) | [3D]VG16B-SW-16P.stp | ||||||||
| SW-8T | 1/2” Tube Socket weld | 16.0(0.63) | 98.3(3.87) | 66.8(2.63) | [3D]VG16B-SW-8T.stp | ||||||||
| SW-12T | 3/4” Tube Socket weld | [3D]VG16B-SW-12T.stp | |||||||||||
| SW-16T | 1” Tube Socket weld | 19.1(0.75) | 101(3.98) | [3D]VG16B-SW-16T.stp | |||||||||
| SW-12M | 12mm Tube Socket weld | 16.0(0.63) | 98.3(3.87) | [3D]VG16B-SW-12M.stp | |||||||||
| SW-14M | 14mm Tube Socket weld | [3D]VG16B-SW-14M.stp | |||||||||||
| SW-16M | 16mm Tube Socket weld | [3D]VG16B-SW-16M.stp | |||||||||||
| VG16C | F-12N | 3/4” Female NPT | 11.0(0.43) | 2.25 | 64(2.52) | 22.4(0.88) | 133(5.24) | 82.6(3.25) | - | ||||
| F-16N | 1” Female NPT | 25.4(1.00) | 136(5.35) | 102(4.02) | |||||||||
| MF-12N | 3/4” Male NPT | 3/4” Female NPT | 22.4(0.88) | 133(5.24) | 88.9(3.50) | ||||||||
| MF-16N | 1” Male NPT | 1” Female NPT | 25.4(1.00) | 136(5.35) | 102(4.02) | ||||||||
| SW-12P | 3/4” Pipe Socket weld | 22.4(0.88) | 133(5.24) | 88.9(3.50) | |||||||||
| SW-16P | 1” Pipe Socket weld | 25.4(1.00) | 136(5.35) | ||||||||||
| SW-12T | 3/4” Tube Socket weld | 22.4(0.88) | 133(5.24) | 82.6(3.25) | |||||||||
| SW-16T | 1” Tube Socket weld | ||||||||||||
| SW-14M | 14mm Tube Socket weld | 95.3(3.75) | |||||||||||
| SW-16M | 16mm Tube Socket weld | 88.9(3.50) | |||||||||||
| SW-18M | 18mm Tube Socket weld | 82.6(3.25) | |||||||||||
| SW-25M | 25mm Tube Socket weld | ||||||||||||
