VEX110

VEX110

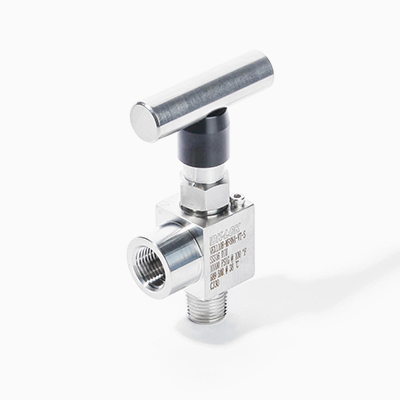

Bar Stock Union Bonnet High Pressure Needle Valve

Valves / Needle Valves / VEX110

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download
VEX110
Basic Ordering NumberEnd ConnectionsOrifice mm (in.)CvDimensions, mm (inch)Download
InletOutletLL1L2L3HP
In-line pattern VEX110B-MF-4N-*-S1/4" Male NPT1/4" Female NPT4.76 (0.19)0.7588.9 (3.5)44.45 (1.75)44.45 (1.75)-90.0 (3.54)71.5 (2.81)[3D]VEX110B-MF-4N.stp
MF-6N-*-S3/8" Male NPT3/8" Female NPT[3D]VEX110B-MF-6N.stp
MF-8N-*-S1/2" Male NPT1/2" Female NPT[3D]VEX110B-MF-8N.stp
Angle pattern VEX110B-MF-4N-A-*-S1/4" Male NPT1/4" Female NPT50.8 (2.0)15.87 (0.62)34.93 (1.38)36.6 (1.44)90.0 (3.54)71.5 (2.81)[3D]VEX110B-MF-4N-A.stp
MF-6N-A-*-S3/8" Male NPT3/8" Female NPT[3D]VEX110B-MF-6N-A.stp
MF-8N-A-*-S1/2" Male NPT1/2" Female NPT[3D]VEX110B-MF-8N-A-S.stp
