V46A

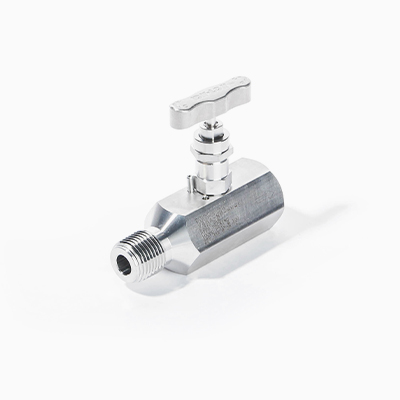

Hex. Body Needle Valves

Valves / Needle Valves / V46A

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

V46A

Basic Ordering No.

End Connection

Orifice in. (mm)

Dimensions, in.(mm)

Download

Inlet

Outlet

Hex

V46A-

D-4T-

1/4 DK-Lok

0.126 (3.2)

0.37

3.21 (81.5)

1.59 (40.4)

1.62 (41.1)

1.25 (31.75)

1.77 (45)

2.64 (67.2)

[3D]V46A-D-4T.stp

D-6T-

3/8 DK-Lok

0.64

3.33 (84.5)

1.65 (41.9)

1.68 (42.6)

[3D]V46A-D-6T.stp

D-8T-

1/2 DK-Lok

0.83

3.54 (90.0)

1.76 (44.7)

1.78 (45.3)

[3D]V46A-D-8T.stp

F-4N-

1/4 Female NPT

0.83

3.0 (76.2)

1.75 (44.4)

1.25 (31.8)

[3D]V46A-F-4N.stp

F-6N-

3/8 Female NPT

[3D]V46A-F-6N.stp

F-8N-

1/2 Female NPT

[3D]V46A-F-8N.stp

MF-8N-

1/2 Male NPT

1/2 Female NPT

3.5 (88.9)

2.25 (57.1)

[3D]V46A-MF-8N.stp

MF-12N8N-

1/2 Male NPT

1/2 Female NPT

2.25 (57.1)

[3D]V46A-MF-12N8N.stp
