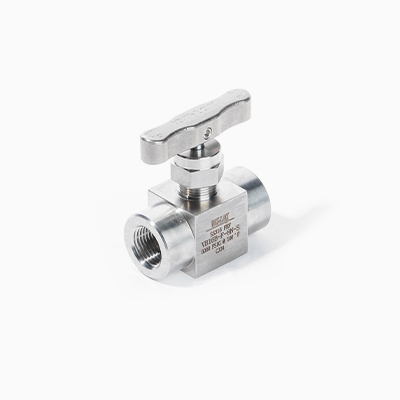

Integral Bonnet Needle Valves
Valves / Needle Valves / VB16
| VB16 | |||||||||||
| Ordering Number | End Connection | Dimensions, mm(in.) | H2 | L | L1 | A | W | Download | |||
| Orifice/Cv | H | H1 | |||||||||
| VB16A- | D4T-S | 1/4 in. DK-Lok | 3.2 (0.125) Cv 0.21 | 43.1 (1.69) | 10.7 (0.42) | 29.5 (1.16) | 62.5 (2.46) | 39.9 (1.57) | 44.5 (1.75) *36.0 (1.42) | 21.6 (0.85) | [3D]VB16A-D-4T.stp |
| F4N-S | 1/4 in. Female NPT | 10.7 (0.42) | 25.4 (1.00) | 47.8 (1.88) | 36.6 (1.44) | [3D]VB16A-F-4N.stp | |||||
| M4N-S | 1/4 in. Male NPT | - | 49.3 (1.94) | - | [3D]VB16A-M-4N.stp | ||||||
| MF4N-S | 1/4 in. Male | 26.2 (1.03) | 48.5 (1.91) | 36.6 (1.44) | [3D]VB16A-MF-4N.stp | ||||||
| VB16B- | D6T-S | 3/8 in. DK-Lok | 6.4 (0.25) Cv 0.73 | 58.0 (2.28) | 16.8 (0.66) | - | 78.2 (3.08) | - | 64.0 (2.52) *50.0 (1.97) | 32.0 (1.26) | [3D]VB16B-D-6T.stp |
| D8T-S | 1/2 in. DK-Lok | - | 83.8 (3.30) | - | [3D]VB16B-D-8T.stp | ||||||
| F6N-S | 3/8 in. Female NPT | - | 63.5 (2.50) | - | [3D]VB16B-F-6N.stp | ||||||
| F8N-S | 1/2 in. Female NPT | 35.8 (1.41) | 52.3 (2.06) | [3D]VB16B-F-8N.stp | |||||||
| MF6N-S | 3/8 in. Male NPT | 31.0 (1.22) | [3D]VB16B-MF-6N.stp | ||||||||
| MF8N-S | 1/2 in. Male NPT | 35.8 (1.41) | [3D]VB16B-MF-8N.stp | ||||||||
| MF12N8N-S | 3/4 in. Male NPT | - | - | ||||||||
