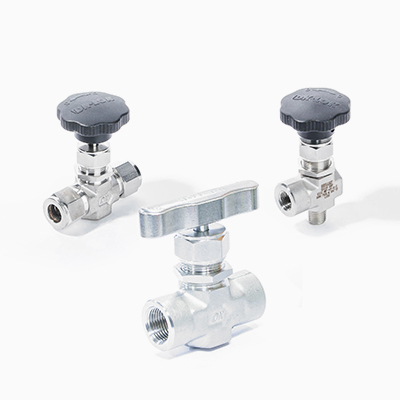

Needle Valves
Valves / Needle Valves / V15
| V15 | |||||||||||||||
| Valve Basic Ordering Number | End Connections | Orifice | Cv | Dimensions | Download | ||||||||||
| Inlet | Outlet | A | B | L | L1 | L2 | E | D | H | H1 | |||||
| V15A | F-2N- | 1/8" Female NPT | 2.0 (0.08) | 0.09 | 60 (2.36) | 21(0.83) | 42(1.65) | 21(0.83) | 9.5 (0.37) | 11 (0.43) | 36 (1.42) | 32 (1.26) | [3D]V15A-F2N.stp | ||
| M-2N- | 1/8" Male NPT | 21(0.83) | 20(0.79) | [3D]V15A-M2N.stp | |||||||||||
| MD-2N2T | 1/8" Male NPT | 1/8" DK-Lok | 47(1.85) | 26(1.02) | [3D]V15A-MD-2N2T.stp | ||||||||||
| D-2T- | 1/8" DK-Lok | 26(1.02) | 52(2.05) | 26(1.02) | [3D]V15A-D2T.stp | ||||||||||
| D-3M- | 3mm DK-Lok | [3D]V15A-D3M.stp | |||||||||||||
| V15B | F-2N- | 1/8" Female NPT | 4.3 (0.17) | 0.37 | 60 (2.36) | 21(0.83) | 42(1.65) | 21(0.83) | 9.5 (0.37) | 11 (0.43) | 36 (1.42) | 45 (1.77) | [3D]V15B-F-2N.stp | ||
| M-2N- | 1/8" Male NPT | [3D]V15B-M-2N.stp | |||||||||||||
| M-4N- | 1/4" Male NPT | 25(0.98) | 50(1.97) | 25(0.98) | 25(0.98) | [3D]V15B-M-4N.stp | |||||||||
| MD-4N4T- | 1/4" Male NPT | 1/4" DK-Lok | 54(2.13) | 28.8(1.13) | [3D]V15B-MD-4N4T.stp | ||||||||||
| D-6M- | 6mm DK-Lok | 29(1.14) | 57.6(2.27) | 28.8(1.13) | [3D]V15B-D-6M.stp | ||||||||||
| D-4T- | 1/4" DK-Lok | [3D]V15B-D-4T.stp | |||||||||||||
| D-8M- | 8mm DK-Lok | 30(1.18) | 59.2(2.33) | 29.6(1.16) | [3D]V15B-D-8M.stp | ||||||||||
| V15C | F-4N- | 1/4" Female NPT | 6.4 (0.252) | 0.73 | 71 (2.80) | 28(1.10) | 56(2.20) | 28(1.10) | 28(1.10) | 13 (0.51) | 13.5 (0.53) | 50 (1.97) | 64 (2.52) | [3D]V15C-F-4N.stp | |
| F-4R- | 1/4" Female ISO Tapered | [3D]V15C-F-4R.stp | |||||||||||||
| MF-4N- | 1/4" Male NPT | 1/4" Female NPT | [3D]V15C-MF-4N.stp | ||||||||||||
| MD-4N6T- | 1/4" Male NPT | 3/8" DK-Lok | 61.2(2.41) | 33.2(1.31) | [3D]V15C-MD-4N6T.stp | ||||||||||
| M-6N- | 3/8" Male NPT | 29(1.14) | 58(2.28) | 29(1.14) | 29(1.14) | [3D]V15C-M-6N.stp | |||||||||
| MD-6N6T- | 3/8" Male NPT | 3/8" DK-Lok | 62.2(2.45) | 33.2(1.31) | [3D]V15C-MD-6N6T.stp | ||||||||||
| MD-6N8T- | 3/8" Male NPT | 1/2" DK-Lok | 65(2.56) | 36(1.42) | [3D]V15C-MD-6N8T.stp | ||||||||||
| D-10M- | 10mm DK-Lok | 33(1.30) | 66(2.60) | 33.2(1.31) | 33.2(1.31) | [3D]V15C-D-10M.stp | |||||||||
| D-6T- | 3/8" DK-Lok | [3D]V15C-D-6T.stp | |||||||||||||
| D-12M- | 12mm DK-Lok | 36(1.42) | 72(2.83) | 36(1.42) | 36(1.42) | [3D]V15C-D-12M.stp | |||||||||
| D-8T- | 1/2" DK-Lok | [3D]V15C-D-8T.stp | |||||||||||||
| V15D | F-6N- | 3/8" Female NPT | 9.5 (0.374) | 1.8 | 99 (3.90) | 38(1.50) | 76(2.99) | 38(1.50) | 38(1.50) | 19 (0.75) | 19 (0.75) | 66 (2.60) | 76 (3.00) | [3D]V15D-F-6N.stp | |
| F-6R- | 3/8" Female ISO Tapered | [3D]V15D-F-6R.stp | |||||||||||||
| F-8N- | 1/2" Female NPT | [3D]V15D-F-8N.stp | |||||||||||||
| F-8R- | 1/2" Female ISO Tapered | [3D]V15D-F-8R.stp | |||||||||||||
| M-8N- | 1/2" Male NPT | [3D]V15D-M-8N.stp | |||||||||||||
| MF-8N- | 1/2" Male NPT | 1/2" Female NPT | [3D]V15D-MF-8N.stp | ||||||||||||
| D-8T- | 1/2" DK-Lok | 49(1.93) | 97(3.82) | 48.5(1.91) | [3D]V15D-D-8T.stp | ||||||||||
| D-12T- | 3/4" DK-Lok | [3D]V15D-D-12T.stp | |||||||||||||
