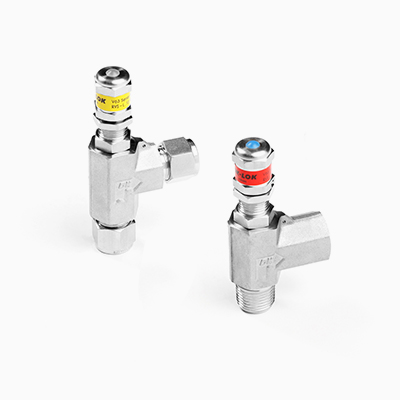

Relief Valves
Valves / Check & Relief Valves / V63 & V66
| V63 | ||||||||
| Basic Ordering Number | End Connections | Orifice mm(in.) | Dimensions mm (in.) | Download | ||||
| Inlet | Outlet | H | B | L | ||||
| V63- | D-4T- | 1/4 DK-Lok | V63 : 4.8 (0.19) V66 : 3.4 (0.13) | 100 (3.93) | 37 (1.45) | 39 (1.53) | [3D]V63&V66-D-4T.stp | |
| D-6M- | 6 mm DK-Lok | [3D]V63&V66-D-6M.stp | ||||||
| D-8M- | 8 mm DK-Lok | 38 (1.49) | 40 (1.57) | [3D]V63&V66-D-8M.stp | ||||
| D-8T- | 1/2 DK-Lok | 105 (4.13) | 44 (1.73) | 42 (1.65) | [3D]V63&V66-D-8T.stp | |||
| D-12M- | 12 mm DK-Lok | [3D]V63&V66-D-12M.stp | ||||||
| MD-8N8T- | 1/2 Male NPT | 1/2 DK-Lok | 98 (3.85) | 36 (1.41) | 42 (1.65) | [3D]V63&V66-MD-8N8T.stp | ||
| MD-8N12M- | 1/2 Male NPT | 12 mm DK-Lok | [3D]V63&V66-MD-8N12M.stp | |||||
| MF-4N- | 1/4 Male NPT | 1/4 Female NPT | 94 (3.70) | 32 (1.25) | 30 (1.18) | [3D]V63&V66-MF-4N.stp | ||
| MF-4R- | 1/4 Male ISO 7/1 | 1/4 Female ISO 7/1 | [3D]V63&V66-MF-4R.stp | |||||
| MF-6N- | 3/8 Male NPT | 3/8 Female NPT | 35 (1.37) | [3D]V63&V66-MF-6N.stp | ||||
| MF-6R- | 3/8 Male ISO 7/1 | 3/8 Female ISO 7/1 | [3D]V63-MF-6R-L.stp | |||||
| MF-8N- | 1/2 Male NPT | 1/2 Female NPT | 98 (3.85) | 36 (1.41) | 38 (1.49) | [3D]V63&V66-MF-8N.stp | ||
| MF-8R- | 1/2 Male ISO 7/1 | 1/2 Female ISO | V63&V66-MF-8R | |||||
| V66 | ||||||||
| Basic Ordering Number | End Connections | Orifice mm(in.) | Dimensions mm (in.) | Download | ||||
| Inlet | Outlet | H | B | L | ||||
| V66- | D-4T- | 1/4 DK-Lok | V63 : 4.8 (0.19) V66 : 3.4 (0.13) | 100 (3.93) | 37 (1.45) | 39 (1.53) | [3D]V63&V66-D-4T.stp | |
| D-6M- | 6 mm DK-Lok | [3D]V63&V66-D-6M.stp | ||||||
| D-8M- | 8 mm DK-Lok | 38 (1.49) | 40 (1.57) | [3D]V63&V66-D-8M.stp | ||||
| D-8T- | 1/2 DK-Lok | 105 (4.13) | 44 (1.73) | 42 (1.65) | [3D]V63&V66-D-8T.stp | |||
| D-12M- | 12 mm DK-Lok | [3D]V63&V66-D-12M.stp | ||||||
| MD-8N8T- | 1/2 Male NPT | 1/2 DK-Lok | 98 (3.85) | 36 (1.41) | 42 (1.65) | [3D]V63&V66-MD-8N8T.stp | ||
| MD-8N12M- | 1/2 Male NPT | 12 mm DK-Lok | [3D]V63&V66-MD-8N12M.stp | |||||
| MF-4N- | 1/4 Male NPT | 1/4 Female NPT | 94 (3.70) | 32 (1.25) | 30 (1.18) | [3D]V63&V66-MF-4N.stp | ||
| MF-4R- | 1/4 Male ISO 7/1 | 1/4 Female ISO 7/1 | [3D]V63&V66-MF-4R.stp | |||||
| MF-6N- | 3/8 Male NPT | 3/8 Female NPT | 35 (1.37) | [3D]V63&V66-MF-6N.stp | ||||
| MF-6R- | 3/8 Male ISO 7/1 | 3/8 Female ISO 7/1 | [3D]V66-MF-6R.stp | |||||
| MF-8N- | 1/2 Male NPT | 1/2 Female NPT | 98 (3.85) | 36 (1.41) | 38 (1.49) | [3D]V63&V66-MF-8N.stp | ||
| MF-8R- | 1/2 Male ISO 7/1 | 1/2 Female ISO | [3D]V63&V66-MF-8R.stp | |||||
