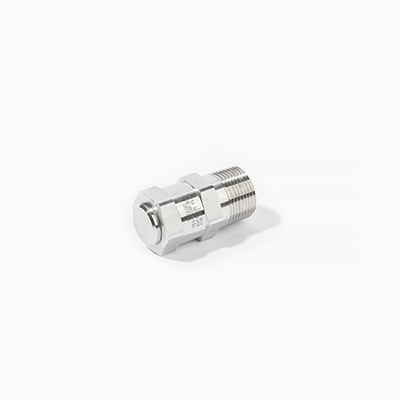

Vent Relief valves
Valves / Check & Relief Valves / V61
| V61 | |||||||||
| Basic Ordering No. | Pipe Size NPT | Orifice mm(inch) | Dimension mm(inch) | Download | |||||
| A | Hex. | ||||||||
| V61-M-2N | 1/8” Male NPT | 4.74 (0.187) | 24.6 (0.97) | 12.7(1/2) | [3D]V61-M-2N.stp | ||||
| V61-M--4N | 1/4” Male NPT | 6.98 (0.275) | 30.48 (1.2) | 15.87 (5/8) | [3D]V61-M-4N.stp | ||||
| V61-M-6N | 3/8” Male NPT | 8.76 (0.345) | 31.5 (1.24) | 19.05 (3/4) | [3D]V61-M-6N-1-S.stp | ||||
| V61-M-8N | 1/2” Male NPT | 10.41 (0.41) | 44.5 (1.75) | 25.4 (1.0) | [3D]V61-M-8N.stp | ||||
| V61-M-12N | 3/4” Male NPT | 14.47 (0.57) | 57.15 (2.25) | 28.57 (1-1/8) | [3D]V61-M-12N.stp | ||||
| V61-M-16N | ” Male NPT | 19.94 (0.785) | 79.25 (3.12) | 38.1 (1-1/2) | [3D]V61-M-16N-100-S.stp | ||||
