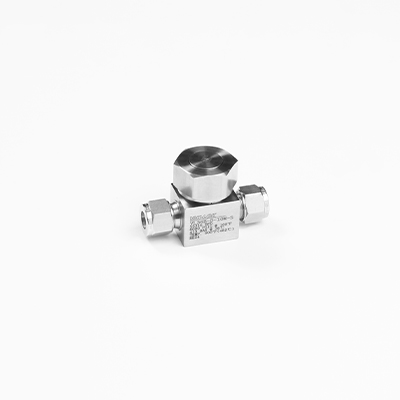

Check Valves
Valves / Check & Relief Valves / VL36
| VL36 | |||||||||||||
| Complete Ordering Number | End Connection | Orifice | Cv | Dimensions mm (in.) | Download | ||||||||
| mm | inch | L | H | H1 | Hex | ||||||||
| VL36A- | D4T-S | 1/4 in. DK-Lok | 4 | 0.156 | 0.3 | 61.0 (2.40) | 37.3 (1.47) | 9.9 (.39) | 7/8 | [3D]VL36A-D-4T.stp | |||
| D6M-S | 6 mm DK-Lok | [3D]VL36A-D-6M.stp | |||||||||||
| F2N-S | 1/8 in. Female NPT | 50.8 (2.00) | [3D]VL36A-F-2N.stp | ||||||||||
| F4N-S | 1/4 in. Female NPT | 46.0 (1.81) | [3D]VL36A-F-4N.stp | ||||||||||
| SW4T-S | 1/4 in. Tube Socket Weld | [3D]VL36A-SW-4T.stp | |||||||||||
| VL36B- | D6T-S | 3/8 in. DK-Lok | 6.4 | 0.25 | 0.64 | 71.9(2.83) | 47.0 (1.85) | 12.7 (.50) | 1 1/4 | [3D]VL36B-D-6T.stp | |||
| F4N-S | 1/4 in. Female NPT | 57.2 (2.25) | [3D]VL36B-F-4N.stp | ||||||||||
| SW6T-S | 3/8 in. Tube Socket Weld | [3D]VL36B-SW6T.stp | |||||||||||
| SW8T-S | 1/2 in. Tube Socket Weld | [3D]VL36B-SW8T.stp | |||||||||||
| VL36C- | D8T-S | 1/2 in. DK-Lok | 11.1 | 0.437 | 2.2 | 99.6 (3.92) | 62.0 (2.44) | 15.7 (.62) | 1 1/2 | [3D]VL36C-D-8T.stp | |||
| D12T-S | 3/4 in. DK-Lok | [3D]VL36C-D-12T.stp | |||||||||||
| F6N-S | 3/8 in. Female NPT | 79.2(3.12) | [3D]VL36C-F-6N.stp | ||||||||||
| F8N-S | 1/2 in. Female NPT | [3D]VL36C-F-8N.stp | |||||||||||
| SW8T-S | 1/2 in. Tube Socket Weld | 79.5 (3.13) | [3D]VL36C-SW-8T.stp | ||||||||||
