VH36

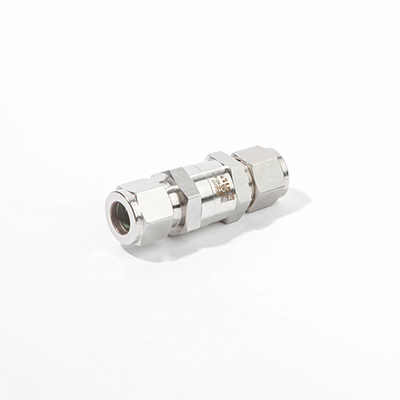

VH36

Check Valves

Valves / Check & Relief Valves / VH36

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download
VH36 Series Basic Ordering Number
Basic Ordering NumberEnd ConnectionsCvDimensions mm (in.)Pressure Rating psig (bar)Download
LL1Hh
VH36A-D-2T-1/8 in. DK-Lok0.6757.7 (2.27)26.4 (1.04)11.11 (7/16)11/166000 (413)[3D]VH36A-D-2T.stp
D-4T-1/4 in. DK-Lok61.7 (2.43)26.4 (1.04)14.29 (9/16)[3D]VH36A-D-4T.stp
D-6M-6 mm DK-Lok61.7 (2.43)26.4 (1.04)14[3D]VH36A-D-6M.stp
F-4N-1/4 in. Female NPT54.1 (2.13)--[3D]VH36A-F-4N.stp
M-2N-1/8 in. Male NPT45.5 (1.79)26.4 (1.04)-[3D]VH36A-M-2N.stp
M-4N-1/4 in. Male NPT55.1 (2.17)26.4 (1.04)-[3D]VH36A-M-4N.stp
VH36B-D-6T-3/8 in. DK-Lok1.869.9 (2.75)31.2 (1.23)17.46 (11/16)16000 (413)[3D]VH36B-D-6T.stp
D-8T-1/2 in. DK-Lok75.2 (2.96)31.2 (1.23)22.22 (7/8)1[3D]VH36B-D-8T.stp
D-8M-8 mm DK-Lok68.6 (2.70)31.2 (1.23)161[3D]VH36B-D-8M.stp
D-10M-10 mm DK-Lok71.1 (2.80)31.2 (1.23)191[3D]VH36B-D-10M.stp
D-12M-12 mm DK-Lok75.2 (2.96)31.2 (1.23)221[3D]VH36B-D-12M.stp
F-6N-3/8 in. Female NPT64.8 (2.55)--15300 (365)[3D]VH36B-F-6N.stp
F-8N-1/2 in. Female NPT77.0 (3.03)--1-1/164900 (337)[3D]VH36B-F-8N.stp
M-6N-3/8 in. Male NPT59.9 (2.36)31.2 (1.23)-16000 (413)[3D]VH36B-M-6N.stp
M-8N-1/2 in. Male NPT69.3 (2.73)31.2 (1.23)-1[3D]VH36B-M-8N.stp
VH36C-D-12T-3/4 in. DK-Lok4.789.4 (3.52)45.2 (1.78)28.58 (1-1/8)1-5/85000 (344)[3D]VH36C-D-12T.stp
D-16T-1 in. DK-Lok98.6 (3.88)45.5 (1.79)38.1 (1-1/2)4700 (323)[3D]VH36C-D-16T.stp
D-22M-22 mm DK-Lok88.4 (3.48)45.5 (1.79)324900 (337)[3D]VH36C-D-22M.stp
D-25M-25 mm Dk-Lok98.6 (3.88)45.5 (1.79)404600 (316)[3D]VH36C-D-25M.stp
F-12N-3/4 in. Female NPT82.0 (3.23)82.0 (3.23)-4600 (316)[3D]VH36C-F-12N.stp
F-16N-1 in. Female NPT97.3 (3.83)97.3 (3.83)-4400 (303)[3D]VH36C-F-16N.stp
M-12N-3/4 in. Male NPT83.6 (3.29)45.5 (1.79)-5000 (344)[3D]VH36C-M-12N.stp
M-16N-1 in. Male NPT93.2 (3.67)45.7 (1.80)-[3D]VH36C-M-16N.stp
VCH36 Series Basic Ordering Number
Basic Ordering NumberEnd ConnectionsCvDimensions mm (in.)Pressure Rating psig (bar)Download
LL1Hh
VCH36A-D-2T-1/8 in. DK-Lok0.6757.7 (2.27)26.4 (1.04)11.11 (7/16)11/166000 (413)[3D]VCH36A-D-2T.stp
D-4T-1/4 in. DK-Lok61.7 (2.43)26.4 (1.04)14.29 (9/16)[3D]VCH36A-D-4T.stp
D-6M-6 mm DK-Lok61.7 (2.43)26.4 (1.04)14[3D]VCH36A-D-6M.stp
F-4N-1/4 in. Female NPT54.1 (2.13)--[3D]VCH36A-F-4N.stp
M-2N-1/8 in. Male NPT45.5 (1.79)26.4 (1.04)-
M-4N-1/4 in. Male NPT55.1 (2.17)26.4 (1.04)-[3D]VCH36A-M-4N.stp
VCH36B-D-6T-3/8 in. DK-Lok1.869.9 (2.75)31.2 (1.23)17.46 (11/16)16000 (413)[3D]VCH36B-D-6T.stp
D-8T-1/2 in. DK-Lok75.2 (2.96)31.2 (1.23)22.22 (7/8)1
D-8M-8 mm DK-Lok68.6 (2.70)31.2 (1.23)161[3D]VCH36B-D-8M.stp
D-10M-10 mm DK-Lok71.1 (2.80)31.2 (1.23)191[3D]VCH36B-D-10M.stp
D-12M-12 mm DK-Lok75.2 (2.96)31.2 (1.23)221[3D]VCH36B-D-12M.stp
F-6N-3/8 in. Female NPT64.8 (2.55)--15300 (365)[3D]VCH36B-F-6N.stp
F-8N-1/2 in. Female NPT77.0 (3.03)--1-1/164900 (337)[3D]VCH36B-F-8N.stp
M-6N-3/8 in. Male NPT59.9 (2.36)31.2 (1.23)-16000 (413)
M-8N-1/2 in. Male NPT69.3 (2.73)31.2 (1.23)-1[3D]VCH36B-M-8N.stp
VCH36C-D-12T-3/4 in. DK-Lok4.789.4 (3.52)45.2 (1.78)28.58 (1-1/8)1-5/85000 (344)[3D]VCH36C-D-12T.stp
D-16T-1 in. DK-Lok98.6 (3.88)45.5 (1.79)38.1 (1-1/2)4700 (323)[3D]VCH36C-D-16T.stp
D-22M-22 mm DK-Lok88.4 (3.48)45.5 (1.79)324900 (337)[3D]VCH36C-D-22M.stp
D-25M-25 mm Dk-Lok98.6 (3.88)45.5 (1.79)404600 (316)[3D]VCH36C-D-25M.stp
F-12N-3/4 in. Female NPT82.0 (3.23)82.0 (3.23)-4600 (316)[3D]VCH36C-F-12N.stp
F-16N-1 in. Female NPT97.3 (3.83)97.3 (3.83)-4400 (303)[3D]VCH36C-F-16N.stp
M-12N-3/4 in. Male NPT83.6 (3.29)45.5 (1.79)-5000 (344)
M-16N-1 in. Male NPT93.2 (3.67)45.7 (1.80)-[3D]VCH36C-M-16N3.stp
