Check Valves

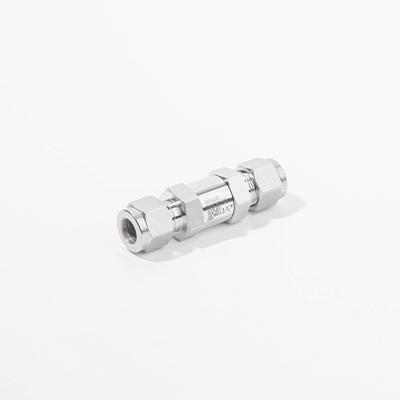

Valves / Check & Relief Valves / V33
| V33 | ||||||||||||
| Basic Ordering | End Connections | Orifice mm (in.) | Cv | Dimensions mm (in.) | Download | |||||||
| Number | Inlet | Outlet | h-Hex | H-Hex | L | I | ||||||
| V33A- | D-2T- | 1/8 in. DK-Lok | 4.8 (0.19) | 0.16 | 15.88 (5/8) | 11.11 (7/16) | 55.60 (2.19) | 25.00 (0.98) | [3D]V33A-D-2T.stp | |||
| M-2N- | 1/8 in. Male NPT | 0.47 | - | 44.40 (1.75) | - | [3D]V33A-M-2N.stp | ||||||
| F-2N- | 1/8 in. Female NPT | - | 46.50 (1.83) | 25.00 (0.98) | [3D]V33A-F-2N.stp | |||||||
| D-4T- | 1/4 in. DK-Lok | 14.29 (9/16) | 60.00 (2.36) | [3D]V33A-D-4T.stp | ||||||||
| D-6M- | 6 mm DK-Lok | 14 | [3D]V33A-D-6M.stp | |||||||||
| MD-4N4T- | 1/4 in. Male NPT | 1/4 in. DK-Lok | 14.29 (9/16) | 56.40 (2.22) | [3D]V33A-MD-4N4T.stp | |||||||
| M-4N- | 1/4 in. Male NPT | - | 53.40 (2.10) | [3D]V33A-M-4N.stp | ||||||||
| V33B- | F-4N- | 1/4 in. Female NPT | 7.1 (0.28) | 1.48 | 19.05 (3/4) | - | 56.80 (2.24) | - | [3D]V33B-F-4N.stp | |||
| D-6T- | 3/8 in. DK-Lok | 17.46 (11/16) | 65.50 (2.58) | 27.10 (1.07) | [3D]V33B-D-6T.stp | |||||||
| D-10M- | 10 mm DK-Lok | 19 | [3D]V33B-D-10M.stp | |||||||||
| M-6N- | 3/8 in. Male NPT | - | 55.50 (2.19) | [3D]V33B-M-6N.stp | ||||||||
| V33C- | F-6N- | 3/8 in. Female NPT | 10.0 (0.39) | 1.7 | 22.22 (7/8) | - | 63.80 (2.51) | - | [3D]V33C-F-6N.stp | |||
| D-8T- | 1/2 in. DK-Lok | 22.22 (7/8) | 80.20 (3.16) | 36.20 (1.43) | [3D]V33C-D-8T.stp | |||||||
| D-12M- | 12 mm DK-Lok | 22 | [3D]V33C-D-12M.stp | |||||||||
| M-8N- | 1/2 in. Male NPT | - | 74.40 (2.93) | [3D]V33C-M-8N.stp | ||||||||
| V33D- | F-8N- | 1/2 in. Female NPT | 13.5 (0.53) | 2.6 | 28.58 (1-1/8) | - | 84.70 (3.33) | - | [3D]V33D-F-8N.stp | |||
| D-10T- | 5/8 in. DK-Lok | 25.40 (1) | 91.80 (3.61) | 48.10 (1.89) | [3D]V33D-D-10T.stp | |||||||
| V33E- | D-12T- | 3/4 in. DK-Lok | 16.0 (0.63) | 5.2 | 31.75 (1-1/4) | 28.58(1-1/8) | 110.70 (4.35) | 66.1 (2.6) | [3D]V33E-D-12T.stp | |||
| M-12N- | 3/4 in. Male NPT | - | 105.30 (4.15) | [3D]V33E-M-12N.stp | ||||||||
| F-12N- | 3/4 in. Female NPT | - | 103.00 (4.06) | - | [3D]V33E-F-12N.stp | |||||||
| V33F- | D-16T- | 1 in. DK-Lok | 18.0 (0.71) | 8 | 34.93 (1-3/8) | 38.1 (1-1/2) | 120.8 (4.75) | 68 (2.68) | [3D]V33F-D-16T.stp | |||
| M-16N- | 1 in. Male NPT | - | 115.8 (4.56) | [3D]V33F-M-16N.stp | ||||||||
| F-16N- | 1 in. Female NPT | 41.28 (1-5/8) | - | 111 (4.37) | [3D]V33F-F-16N.stp | |||||||
| VP33 Series One-Piece Check Valves | ||||||||||||
| Basic Ordering Number | End Connections | Cv | Dimensions mm (in.) | Download | ||||||||
| Inlet | Outlet | L | Hex. | |||||||||
| VP33A- | M-4N- | 1/4 in. Male NPT | 0.35 | 41 (1.62) | 14.28 (9/16) | [3D]VP33A-M-4N.stp | ||||||
| M-4R- | 1/4 in. ISO Male Tapered | [3D]VP33A-M-4R.stp | ||||||||||
| F-4N- | 1/4 in. Female NPT | 61 (2.41) | 19.05 (3/4) | [3D]VP33A-F-4N.stp | ||||||||
| F-4R- | 1/4 in. ISO Female Tapered | 64 (2.54) | [3D]VP33A-F-4R.stp | |||||||||
| MF-4N- | 1/4 in. Male NPT | 1/4 in. Female NPT | 44 (1.75) | [3D]VP33A-MF-4N.stp | ||||||||
| FM-4N- | 1/4 in. Female NPT | 1/4 in. Male NPT | 58 (2.28) | [3D]VP33A-FM-4N.stp | ||||||||
| VP33B- | M-8N- | 1/2 in. Male NPT | 1.2 | 58 (2.28) | 22.22 (7/8) | [3D]VP33B-M-8N.stp | ||||||
| F-8N- | 1/2 in. Female NPT | 94 (3.71) | 26.98 (1-1/16) | [3D]VP33B-F-8N.stp | ||||||||
| MF-8N- | 1/2 in. Male NPT | 1/2 in. Female NPT | 72 (2.83) | [3D]VP33B-MF-8N.stp | ||||||||
