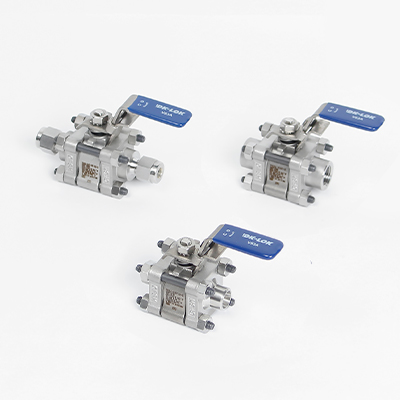

Swing-Out Ball Valves
Valves / Ball & Plug Valves / V83
| Tube Fitting End Connection | |||||||||||||||||
| Basic Ordering number | End Connection | Orifice | Cv | Dimension mm(in.) | Download | ||||||||||||
| mm | in. | L | L1 | H | H1 | H2 | A | B | |||||||||
| Fractional DK-Lok | |||||||||||||||||
| V83A-D4T- | 1/4 in. | 4.8 | 0.188 | 1.2 | 80.8 (3.18) | 40.40 (1.59) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | [3D]V83A-D4T.stp | |||||
| V83A-D6T- | 3/8 in. | 7.1 | 0.281 | 3.8 | [3D]V83A-D-6T.stp | ||||||||||||
| V83B-D8T- | 1/2 in. | 10.4 | 0.411 | 7.5 | 103.8 (4.09) | 51.90 (2.04) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-D8T.stp | |||||
| V83B-D12T- | 3/4 in. | 13.1 | 0.516 | 13.6 | [3D]V83B-D12T.stp | ||||||||||||
| V83C-D16T- | 1 in. | 22.2 | 0.875 | 40 | 136.7 (5.38) | 68.35 (2.69) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-D-16T.stp | |||||
| Metric DK-Lok | |||||||||||||||||
| V83A-D6M- | 6 mm | 4.8 | 0.188 | 1.2 | 80.8 (3.18) | 40.40 (1.59) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | [3D]V83A-D-6M.stp | |||||
| V83A-D8M- | 8 mm | 6.4 | 0.25 | 2.5 | [3D]V83A-D8M.stp | ||||||||||||
| V83A-D10M- | 10 mm | 7.1 | 0.281 | 3.8 | [3D]V83A-D-10M.stp | ||||||||||||
| V83B-D12M- | 12 mm | 10.4 | 0.411 | 7.5 | 103.8 (4.09) | 51.90 (2.04) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-D12M.stp | |||||
| V83C-D25M- | 25 mm | 22.2 | 0.875 | 40 | 136.7 (5.38) | 68.35 (2.69) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-D-25M.stp | |||||
| Female Pipe Thread End Connection | |||||||||||||||||
| Basic Ordering number | End Connection | Orifice | Cv | Dimension mm(in.) | Download | ||||||||||||
| mm | in. | L | L1 | H | H1 | H2 | A | B | |||||||||
| Female NPT Ends | |||||||||||||||||
| V83A-F2N- | 1/8 in. | 7.1 | 0.281 | 3.8 | 55.4 (2.18) | 27.70 (1.09) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | ||||||
| V83A-F4N- | 1/4 in. | [3D]V83A-F-4N.stp | |||||||||||||||
| V83B-F6N- | 3/8 in. | 13.1 | 0.516 | 12 | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-F6N.stp | |||||
| V83B-F8N- | 1/2 in. | [3D]V83B-F8N.stp | |||||||||||||||
| V83C-F12N- | 3/4 in. | 22.2 | 0.875 | 31 | 92.0 (3.62) | 46.00 (1.81) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-F-12N.stp | |||||
| V83C-F16N- | 1 in. | 38 | [3D]V83C-F16N.stp | ||||||||||||||
| Female ISO Tapered Ends | |||||||||||||||||
| V83A-F4R- | 1/4 in. | 7.1 | 0.281 | 3.8 | 55.4 (2.18) | 27.70 (1.09) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | [3D]V83A-F-4R.stp | |||||
| V83B-F8R- | 1/2 in. | 13.1 | 0.516 | 12 | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-F8R.stp | |||||
| V83C-F12R- | 3/4 in. | 22.2 | 0.875 | 31 | 92.0 (3.62) | 46.00 (1.81) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-F-12R.stp | |||||
| V83C-F16R- | 1 in. | 38 | 114.3 (4.50) | 57.15 (2.25) | [3D]V83C-F-16R.stp | ||||||||||||
| Tube and Pipe Socket Weld End Connection | |||||||||||||||||
| Basic Ordering number | End Connection | Orifice | Cv | Dimension mm(in.) | Download | ||||||||||||
| mm | in. | OD | X | D | L | L1 | H | H1 | H2 | A | B | ||||||
| Tube Socket Weld | |||||||||||||||||
| V83A-SW4T- | 1/4 in. | 4.8 | 0.188 | 1.2 | 6.50 (0.26) | 13.70 (0.54) | 7.1 (0.28) | 55.4 (2.18) | 27.70 (1.09) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | [3D]V83A-SW4T.stp | ||
| V83A-SW6T- | 3/8 in. | 7.1 | 0.281 | 3.8 | 9.70 (0.38) | 17.10 (0.67) | 7.9 (0.31) | [3D]V83A-SW6T.stp | |||||||||
| V83B-SW8T- | 1/2 in. | 10.4 | 0.411 | 7.5 | 12.90 (0.51) | 21.30 (0.84) | 9.7 (0.38) | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-SW8T.stp | ||
| V83B-SW12T- | 3/4 in. | 13.1 | 0.516 | 13.6 | 19.20 (0.76) | 26.70 (1.05) | 11.2 (0.44) | [3D]V83B-SW12T.stp | |||||||||
| V83C-SW16T- | 1 in. | 22.2 | 0.875 | 40 | 25.65 (1.01) | 33.40 (1.31) | 16.0 (0.63) | 92.0 (3.62) | 46.00 (1.81) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-SW16T.stp | ||
| Pipe Socket Weld | |||||||||||||||||
| V83B-SW8P- | 1/2 in. | 13.1 | 0.516 | 15 | 21.80 (0.86) | 31.20 (1.23) | 9.7 (0.38) | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-SW8P.stp | ||
| V83C-SW12P- | 3/4 in. | 22.2 | 0.875 | 36 | 27.20 (1.07) | 42.16 (1.66) | 12.7 (0.50) | 92.0 (3.62) | 46.00 (1.81) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-SW12P.stp | ||
| V83C-SW16P- | 1 in. | 42 | 33.90 (1.33) | 45.30 (1.78) | [3D]V83C-SW16P.stp | ||||||||||||
| Pipe Butt Weld End Connection | |||||||||||||||||
| Basic Ordering number | End Connection | Orifice | Cv | Dimension mm(in.) | Download | ||||||||||||
| mm | in. | OD | ID | L | L1 | H | H1 | H2 | A | B | |||||||
| Schedule 10 | |||||||||||||||||
| V83A-W4P10- | 1/4 in. | 7.1 | 0.271 | 1.2 | 13.70 (0.54) | 10.40 (0.41) | 52.4 (2.06) | 26.20 (1.03) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | [3D]V83A-W4P10.stp | |||
| V83B-W8P10- | 1/2 in. | 13.1 | 0.516 | 15 | 21.30 (0.84) | 17.10 (0.67) | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | [3D]V83B-W8P10.stp | |||
| V83C-W12P10- | 3/4 in. | 22.2 | 0.875 | 36 | 26.67 (1.05) | 22.45 (0.88) | 92.0 (3.62) | 46.00 (1.81) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-W12P10.stp | |||
| V83C-W16P10- | 1 in. | 40 | 33.40 (1.31) | 27.90 (1.10) | 88.9 (3.50) | 44.45 (1.75) | [3D]V83C-W16P10.stp | ||||||||||
| Schedule 40 | |||||||||||||||||
| V83A-W4P40- | 1/4 in. | 7.1 | 0.271 | 1.2 | 13.70 (0.54) | 9.20 (0.36) | 52.4 (2.06) | 26.20 (1.03) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | ||||
| V83B-W8P40- | 1/2 in. | 13.1 | 0.516 | 15 | 21.30 (0.84) | 15.80 (0.62) | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | ||||
| V83C-W12P40- | 3/4 in. | 22.2 | 0.875 | 36 | 26.67 (1.05) | 20.93 (0.82) | 92.0 (3.62) | 46.00 (1.81) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-W12P40.stp | |||
| V83C-W16P40- | 1 in. | 40 | 33.40 (1.31) | 26.60 (1.05) | 88.9 (3.50) | 44.45 (1.75) | [3D]V83C-W16P40.stp | ||||||||||
| Schedule 80 | |||||||||||||||||
| V83A-W4P80- | 1/4 in. | 7.1 | 0.271 | 1.2 | 13.70 (0.54) | 7.70 (0.30) | 52.4 (2.06) | 26.20 (1.03) | 47.7 (1.88) | 31.8 (1.25) | 16.75 (0.66) | 57.2 (2.25) | 33.0 (1.30) | ||||
| V83A-W6P80- | 3/8 in. | 7.1 | 0.281 | 3.8 | 17.10 (0.67) | 10.70 (0.42) | [3D]V83A-W6P80.stp | ||||||||||
| V83B-W8P80- | 1/2 in. | 10.4 | 0.411 | 7.5 | 21.30 (0.84) | 13.90 (0.55) | 68.9 (2.71) | 34.45 (1.36) | 64.8 (2.55) | 44.2 (1.74) | 22.25 (0.88) | 111.0 (4.37) | 44.5 (1.75) | ||||
| V83B-W12P80- | 3/4 in. | 13.1 | 0.516 | 13.6 | 26.70 (1.05) | 18.80 (0.74) | |||||||||||
| V83C-W16P80- | 1 in. | 22.2 | 0.875 | 40 | 33.40 (1.31) | 23.90 (0.94) | 88.9 (3.50) | 44.45 (1.75) | 79.0 (3.11) | 61.9 (2.44) | 31.00 (1.22) | 149.4 (5.88) | 62.0 (2.44) | [3D]V83C-W16P80.stp | |||
