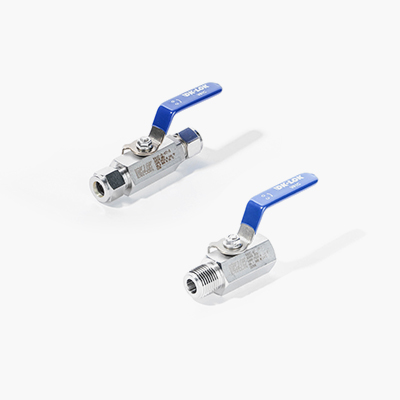

V81

Ball Valves

Valves / Ball & Plug Valves / V81

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Basic Ordering Number		End Connections Inlet / Outlet	Orifice mm (in.)	Cv	Dimensions mm(in.)									Download
Basic Ordering Number		End Connections Inlet / Outlet	Orifice mm (in.)	Cv	L	H	HEX	A	A1	A2	H1	H2	H3	Download
V81A-	D-6M-	6mm DK-Lok	5 (0.2)	1.25	79 (3.11)	27.6 (1.09)	17 (11/16)	59.5 (2.34)	30.5 (1.20)	41.8 (1.65)	23.5 (0.93)	33.8 (1.33)	35.6 (1.4)	[3D]V81A-D-6M.stp
	D-4T-	1/4 in.DK-Lok		1.25	79 (3.11)
	F-4N-	1/4 in. Female NPT		1.35	41.9 (1.65)									[3D]V81A-F-4N.stp
	MF-4N-	1/4 in. M/F NPT		1.35	52.4 (2.06)
V81B-	D-10M-	10mmDK-Lok	7.5 (0.3)	2.6	91.7 (3.61)	36.5 (1.44)	20.64 (13/16)	81 (3.19)	42 (1.65)	44.5 (1.75)	30 (1.18)	38.3 (1.5)	39.5 (1.56)	[3D]V81B-D-10M.stp
	D-6T-	3/8 in.DK-Lok		2.5	91.3 (3.59)									[3D]V81B-D-6T.stp
	F-6N-	3/8 in. Female NPT		2.6	47 (1.85)									[3D]V81B-F-6N.stp
	MF-6N-	3/8 in. M/F NPT		2.6	53.5 (2.1)
V81C-	D-12M-	12mmDK-Lok	9 (0.35)	9.25	99.2 (3.9)	39.7 (1.56)	27 (1-1/16)	81 (3.19)	46 (1.81)	46.5 (1.83)	35.7 (1.41)	43.5 (1.71)	44.7 (1.76)	[3D]V81C-D-12M.stp
	D-8T-	1/2 in.DK-Lok		9.25	101 (3.98)									[3D]V81C-D-8T.stp
	F-8N-	1/2 in. Female NPT		9.25	56.15 (2.21)
	MF-8N-	1/2 in.M/F-NPT		9.25	66.6 (2.62)
	WF-15A8N-	1/2 in.Welding/F-NPT		9.25	95.0 (3.74)
V81D-	D-16M-	16mmDK-Lok	12.5 (0.49)	10.6	107 (4.24)	44.85 (1.76)	32 (1-1/4)	102.5 (4.04)	49.5 (1.95)	56 (2.2)	38.1 (1.50)	47.2 (1.86)	-	[3D]V81D-D-16M.stp
	D-10T-	5/8 in.DK-Lok		10.6	108 (4.25)									[3D]V81D-D-10T.stp
	F-12N-	3/4 in.Female NPT		12.65	63 (2.48)									[3D]V81D-F-12N.stp
	D-12T-	3/4 in.DK-Lok		12.65	107 (4.22)									[3D]V81D-D-12T.stp
	MF-12N-	3/4 in.M/F-NPT		12.65	75.9 (2.99)
	WF-20A12N-	3/4 in.Welding/F-NPT		12.65	100 (3.93)
	D-16T-													[3D]V81D-D-16T.stp
V81E-	D-16T-	1 in.DK-Lok	16 (0.63)	17.35	133 (5.23)	49.75 (1.95)	38 (1-1/2)	102.5 (4.04)	68 (2.68)	70.1 (2.76)	45 (1.77)	53.7 (2.11)	-
	F-16N-	1 in. Female NPT		17.35	78.1 (3.07)									[3D]V81E-F-16N.stp
	WF-25A16N-	1 in. Welding/F-NPT		17.35	115 (4.53)
V81F-	F-20N-	1 1/4 in. Female NPT	21 (0.83)	-	89 (3.50)	65 (2.56)	50 (2)	141 (5.55)
V81G-	F-24N-	1 1/2 in.Female NPT	24 (0.94)	-	95 (3.74)	68 (2.68)	55 (2-3/16)	148 (5.83)
V81H-	F-32N-	2 in. Female NPT	32 (1.26)	-	110 (4.33)	80 (3.15)	69.8 (2-3/4)	154 (6.06)	-	-	-	-	-
