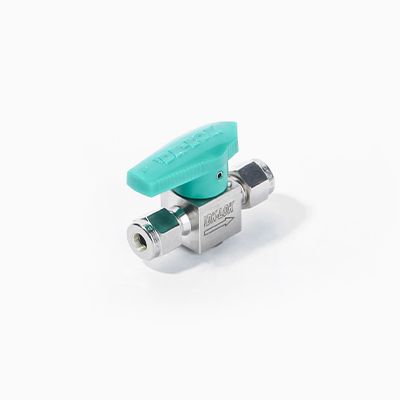

Plug Valves
Valves / Ball & Plug Valves / V23
| Basic Ordering Number | End Connections | Dimensions mm (inches) | Download | ||||||||||||
| Inlet | Outlet H | A | B | C | D | E | F | G | H | ||||||
| V23A- | D-2T- | 1/8 in. DK-Lok | 50.5 (1.99) | 19.8 (0.78) | 47.8 (1.88) | 38.6 (1.52) | 29.0 (1.14) | 9.4 (0.37) | 11.7 (0.46) | 19.1 (0.75) | [3D]V23A-D-2T.stp | ||||
| D-4T- | 1/4 in. DK-Lok | 55.1 (2.17) | [3D]V23A-D-4T.stp | ||||||||||||
| D-6T- | 3/8 in. DK-Lok | 58.2 (2.29) | [3D]V23A-D-6T.stp | ||||||||||||
| D-6M- | 6mm DK-Lok | 55.1 (2.17) | [3D]V23A-D-6M.stp | ||||||||||||
| M-2N- | 1/8 in. Male NPT | 38.9 (1.53) | [3D]V23A-M-2N.stp | ||||||||||||
| M-4N- | 1/4 in. Male NPT | 48.3 (1.90) | [3D]V23A-M-4N.stp | ||||||||||||
| MD-4N4T- | 1/4 in. Male NPT | 1/4 in. DK-Lok | 51.7 (2.03) | [3D]V23A-MD-4N4T.stp | |||||||||||
| MF-4N- | 1/4 in. Male NPT | 1/4 in. female NPT | 50.8 (2.00) | [3D]V23A-MF-4N.stp | |||||||||||
| F-2N- | 1/8 in. Female NPT | 45.2 (1.78) | [3D]V23A-F-2N.stp | ||||||||||||
| F-4N- | 1/4 in. Female NPT | 53.1 (2.09) | [3D]V23A-F-4N.stp | ||||||||||||
| F-4R- | 1/4 in. Female ISO Tapered | 56.1 (2.21) | [3D]V23A-F-4R.stp | ||||||||||||
| V23B- | D-6T- | 3/8 in. DK-Lok | 67.6 (2.66) | 29.0 (1.14) | 63.2 (2.49) | 54.1 (2.13) | 38.1 (1.50) | 14.2 (0.56) | 16.8 (0.66) | 28.4 (1.12) | [3D]V23B-D-6T.stp | ||||
| D-8T- | 1/2 in. DK-Lok | 73.2 (2.88) | [3D]V23B-D-8T.stp | ||||||||||||
| D-8M- | 8mm DK-Lok | 67.6 (2.66) | [3D]V23B-D-8M.stp | ||||||||||||
| D-10M- | 10mm DK-Lok | 68.1 (2.68) | [3D]V23B-D-10M.stp | ||||||||||||
| D-12M- | 12mm DK-Lok | 75.2 (2.96) | [3D]V23B-D-12M.stp | ||||||||||||
| M-8N- | 1/2 in. Male NPT | 67.1 (2.64) | [3D]V23B-M-8N.stp | ||||||||||||
| F-6N- | 3/8 in. Female NPT | 60.5 (2.38) | [3D]V23B-F-6N.stp | ||||||||||||
| F-8N- | 1/2 in. Female NPT | 73.2 (2.88) | [3D]V23B-F-8N.stp | ||||||||||||
| F-8R- | 1/2 in. Female ISO Tapered | 79.8 (3.14) | [3D]V23B-F-8R.stp | ||||||||||||
