Do Series
Female Connector
Fittings / DO Series O-Ring Face Seal Fittings / DOGFC

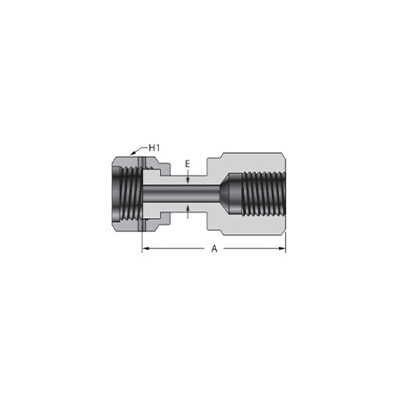

| Part No | DO Size | NPT Size | Dimensions, in. (mm) | Pressure Rating Psig (bar) | Download | |||
| A | E | H | H1 | |||||
| DOGFC4-4N | 1/4 | 1/4 | 1.57 (39.9) | 0.18 (4.6) | 3/4 | 11/16 | 6 600 (454) | [3D]DOGFC4-4N.stp |
| DOGFC8-6N | 1/2 | 3/8 | 1.73 (43.9) | 0.40 (10.2) | 7/8 | 1 | 5 300 (365) | |
| DOGFC8-8N | 1/2 | 1/2 | 1.96 (49.8) | 0.40 (10.2) | 1 1/16 | 1 | 4 900 (337) | [3D]DOGFC8-8N.stp |
| DOGFC12-12N | 3/4 | 3/4 | 2.12 (53.8) | 0.62 (15.7) | 1 5/16 | 1 1/2 | 4 000 (275) | [3D]DOGFC12-12N.stp |
| DOGFC16-16N | 1 | 1 | 2.29 (58.2) | 0.87 (22.1) | 1 5/8 | 1 3/4 | 3 000 (206) | |
