Tube to Male Pipe

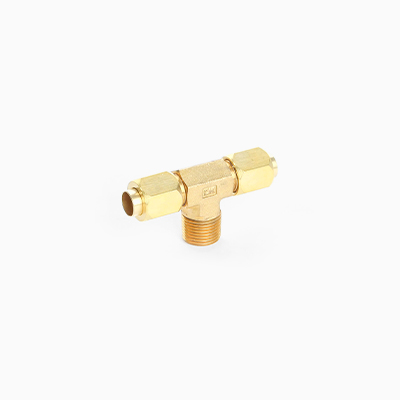

Male Branch Tee
Fittings / DK-Lok K Series JIC Tube Fittings / KTBM
| Part No. | Tube O.D. | T (NPT) | U (UNF) | E | D | L | L1 | L2 | h (HEX) | H (HEX) | Download | |
| Inch | Metric | |||||||||||
| KTBM2T-2N | 1/8" | 3 | 1/8” | 5/16”-24 | 1.6 | 4.8 | 27.4 | 19.6 | 18.3 | 11.1 | 9.5 | [3D]KTBM2T-2N.stp |
| KTBM3T-2N | 3/16” | 4 | 1/8” | 3/8”-24 | 3.2 | 4.8 | 30.5 | 21.1 | 18.3 | 11.1 | 11.1 | |
| KTBM4T-2N | 1/4" | 6 | 1/8” | 7/16”-20 | 4.4 | 4.8 | 31.7 | 22.6 | 19.8 | 11.1 | 14.2 | [3D]KTBM4T-2N.stp |
| KTBM5T-2N | 5/16” | 8 | 1/8” | 1/2”-20 | 6 | 4.8 | 34.5 | 24.1 | 19.8 | 14.2 | 15.8 | |
| KTBM6T-4N | 3/8” | 10 | 1/4” | 9/16"-18 | 7.5 | 7 | 38.8 | 26.9 | 27.7 | 14.2 | 17.4 | [3D]KTBM6T-4N.stp |
| KTBM8T-6N | 1/2” | 12 | 3/8” | 3/4”-16 | 9.9 | 10.3 | 44.5 | 31.8 | 31 | 19.1 | 22.2 | [3D]KTBM8T-6N.stp |
| KTBM10T-8N | 5/8” | 16 | 1/2” | 7/8”-14 | 12.3 | 13.5 | 53.4 | 36.8 | 37.3 | 22.2 | 25.4 | [3D]KTBM10T-8N.stp |
| KTBM12T-12N | 3/4” | 18, 20 | 3/4” | 1 1/16”-12 | 15.5 | 18 | 57.7 | 42.2 | 40.4 | 27 | 31.7 | [3D]KTBM12T-12N.stp |
| KTBM14T-12N | 7/8” | 22 | 3/4” | 1 3/16”-12 | 18 | 18 | 63.3 | 45.7 | 42.9 | 33.3 | 34.9 | |
| KTBM16T-16N | 1” | 25 | 1” | 1 5/16”-12 | 21.5 | 23.8 | 65 | 46 | 50 | 33.3 | 38.1 | [3D]KTBM16T-16N.stp |
| KTBM20T-20N | 1-1/4” | 32 | 1-1/4” | 1 5/8”-12 | 27.5 | 31.7 | 70.8 | 52.3 | 60.5 | 41.2 | 50 | |
| KTBM24T-24N | 1-1/2” | 38 | 1-1/2” | 1 7/8”-12 | 33.3 | 38 | 85.9 | 59.2 | 67.1 | 47.6 | 57.2 | |
| KTBM32T-32N | 2” | 50 | 2” | 2 1/2”-12 | 45 | 49 | 105.2 | 77.7 | 76.2 | 63.5 | 75 | |
