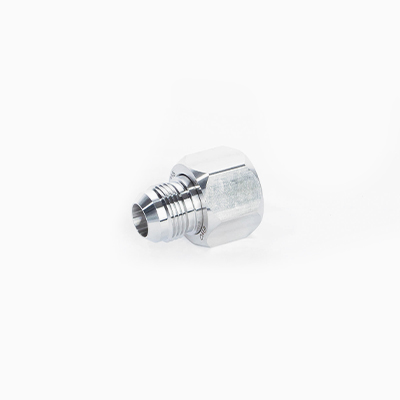

Tube Port to Tube Port
Fitting Port Reducer
Fittings / DK-Lok K Series JIC Tube Fittings / KPR
| Part No. | Reducing Tube O.D | U (UNF) | E | L | Download |
| KPR6T-4T | 3/8" X 1/4" | 7/16"-20 | 4.4 | 24.6 | |
| KPR8T-4T | 1/2" X 1/4" | 7/16"-20 | 4.4 | 25.4 | [3D]KPR8T-4T.stp |
| KPR8T-6T | 1/2" X 3/8" | 9/16"-18 | 7.5 | 25.4 | [3D]KPR8T-6T.stp |
| KPR10T-4T | 5/8" X 1/4" | 7/16"-20 | 4.4 | 26.2 | [3D]KPR10T-4T.stp |
| KPR10T-6T | 5/8" X 3/8" | 9/16"-18 | 7.5 | 26.2 | |
| KPR12T-4T | 3/4" X 1/4" | 7/16"-20 | 4.4 | 27.7 | [3D]KPR12T-4T.stp |
| KPR12T-6T | 3/4" X 3/8" | 9/16"-18 | 7.5 | 27.7 | [3D]KPR12T-6T.stp |
| KPR12T-8T | 3/4" X 1/2" | 3/4"-16 | 10 | 30.2 | [3D]KPR12T-8T.stp |
| KPR16T-12T | 1" X 3/4" | 1-1/16"-12 | 15.5 | 37.3 | [3D]KPR16T-12T.stp |
| KPR20T-12T | 1-1/4" X 3/4" | 1-1/16"-12 | 15.5 | 38.3 | |
| KPR20T-16T | 1-1/4" X 1" | 1-5/16"-12 | 21.5 | 40.3 | [3D]KPR20T-16T.stp |
| KPR24T-20T | 1-1/2" X 1-1/4" | 1 5/8"-12 | 27.5 | 42.9 | [3D]KPR24T-20T.stp |
