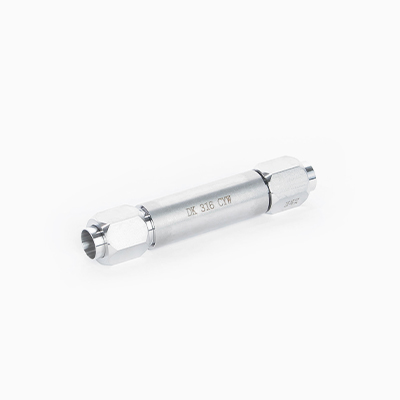

Weld Bulkhead Union
Fittings / DK-Lok K Series JIC Tube Fittings / KBUW
| Part No. | Tube O.D. | U (UNF) | E | D | L | L1 | H (HEX) | Download | |
| Inch | Metric | ||||||||
| KBUW-2T | 1/8" | 3 | 5/16”-24 | 1.6 | 11 | 85.6 | 70 | 9.5 | |
| KBUW-3T | 3/16" | 4 | 3/8”-24 | 3.2 | 11 | 88.8 | 70 | 11.1 | |
| KBUW-4T | 1/4" | 6 | 7/16”-20 | 4.4 | 14 | 98.2 | 80 | 14.2 | [3D]KBUW-4T.stp |
| KBUW-5T | 5/16" | 8 | 1/2”-20 | 6 | 16 | 120.8 | 100 | 15.8 | |
| KBUW-6T | 3/8" | 10 | 9/16”-18 | 7.5 | 17 | 123.8 | 100 | 17.4 | [3D]KBUW-6T.stp |
| KBUW-8T | 1/2" | 12 | 3/4”-16 | 9.9 | 22 | 125.4 | 100 | 22.2 | |
| KBUW-10T | 5/8" | 16 | 7/8”-14 | 12.3 | 25 | 143.2 | 110 | 25.4 | [3D]KBUW-10T.stp |
| KBUW-12T | 3/4" | 18, 20 | 1 1/16”-12 | 15.5 | 30 | 151 | 120 | 31.7 | |
| KBUW-14T | 7/8" | 22 | 1 3/16”-12 | 18 | 32 | 165.2 | 130 | 34.9 | |
| KBUW-16T | 1" | 25 | 1 5/16”-12 | 21.5 | 40 | 168 | 130 | 38.1 | |
| KBUW-20T | 1-1/4" | 32 | 1 5/8”-12 | 27.5 | 46 | 177 | 140 | 50 | |
| KBUW-24T | 1-1/2" | 38 | 1 7/8”-12 | 33.3 | 50 | 193.4 | 140 | 57.2 | |
| KBUW-32T | 2" | 50 | 2 1/2”-12 | 45 | 70 | 205 | 150 | 75 | |
