Tube to Tube Union

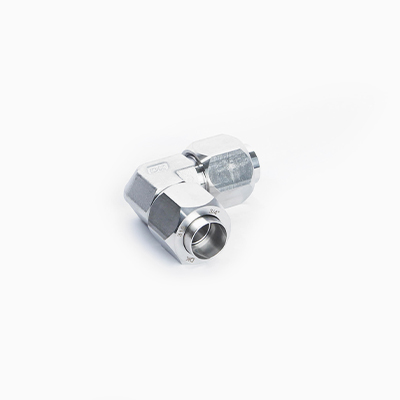

Union Elbow
Fittings / DK-Lok K Series JIC Tube Fittings / KL
| Part No. | Tube O.D. | U (UNF) | E | L | L1 | H (HEX) | H (HEX) | Download | |
| Inch | Metric | ||||||||
| KL-2T | 1/8" | 3 | 5/16”-24 | 1.6 | 27.4 | 19.6 | 11.1 | 9.5 | [3D]KL-2T.stp |
| KL-3T | 3/16” | 4 | 3/8”-24 | 3.2 | 30.5 | 21.1 | 11.1 | 11.1 | |
| KL-4T | 1/4" | 6 | 7/16”-20 | 4.4 | 31.7 | 22.6 | 11.1 | 14.2 | [3D]KL-4T.stp |
| KL-5T | 5/16” | 8 | 1/2”-20 | 6 | 34.5 | 24.1 | 14.2 | 15.8 | |
| KL-6T | 3/8” | 10 | 9/16”-18 | 7.5 | 38.8 | 26.9 | 14.2 | 17.4 | [3D]KL-6T.stp |
| KL-8T | 1/2” | 12 | 3/4”-16 | 9.9 | 44.5 | 31.8 | 19.1 | 22.2 | [3D]KL-8T.stp |
| KL-10T | 5/8” | 16 | 7/8”-14 | 12.3 | 53.4 | 36.8 | 22.2 | 25.4 | [3D]KL-10T.stp |
| KL-12T | 3/4” | 18, 20 | 1 1/16”-12 | 15.5 | 57.7 | 42.2 | 27 | 31.7 | [3D]KL-12T.stp |
| KL-14T | 7/8” | 22 | 1 3/16”-12 | 18 | 63.3 | 45.7 | 33.3 | 34.9 | [3D]KL-14T.stp |
| KL-16T | 1” | 25 | 1 5/16”-12 | 21.5 | 65 | 46 | 33.3 | 38.1 | [3D]KL-16T.stp |
| KL-20T | 1-1/4” | 32 | 1 5/8”-12 | 27.5 | 70.8 | 52.3 | 41.2 | 50 | [3D]KL-20T.stp |
| KL-24T | 1-1/2” | 38 | 1 7/8”-12 | 33.3 | 85.9 | 59.2 | 47.6 | 57.2 | [3D]KL-24T.stp |
| KL-32T | 2” | 50 | 2 1/2”-12 | 45 | 105.2 | 77.7 | 63.5 | 75 | |
