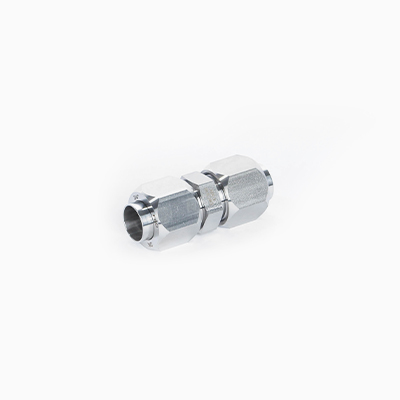

Tube to Tube Union
Union
Fittings / DK-Lok K Series JIC Tube Fittings / KU
| Part No. | Tube O.D. | U (UNF) | E | L | L1 | H (HEX) | H (HEX) | Download | |
| Inch | Metric | ||||||||
| KU-2T | 1/8" | 3 | 5/16”-24 | 1.6 | 45.3 | 29.7 | 11.1 | 9.5 | [3D]KU-2T.stp |
| KU-3T | 3/16” | 4 | 3/8”-24 | 3.2 | 50 | 31.2 | 11.1 | 11.1 | [3D]KU-3T.stp |
| KU-4T | 1/4" | 6 | 7/16”-20 | 4.4 | 53 | 34.8 | 12.7 | 14.2 | [3D]KU-4T.stp |
| KU-5T | 5/16” | 8 | 1/2”-20 | 6 | 55.6 | 34.8 | 14.2 | 15.8 | [3D]KU-5T.stp |
| KU-6T | 3/8” | 10 | 9/16”-18 | 7.5 | 59.6 | 35.8 | 15.8 | 17.4 | [3D]KU-6T.stp |
| KU-8T | 1/2” | 12 | 3/4”-16 | 9.9 | 66.5 | 41.1 | 20.6 | 22.2 | [3D]KU-8T.stp |
| KU-10T | 5/8” | 16 | 7/8”-14 | 12.3 | 81 | 47.8 | 23.8 | 25.4 | [3D]KU-10T.stp |
| KU-12T | 3/4” | 18, 20 | 1 1/16”-12 | 15.5 | 85.9 | 54.9 | 28.5 | 31.7 | [3D]KU-12T.stp |
| KU-14T | 7/8” | 22 | 1 3/16”-12 | 18 | 91.3 | 56.1 | 31.7 | 34.9 | [3D]KU-14T.stp |
| KU-16T | 1” | 25 | 1 5/16”-12 | 21.5 | 95.2 | 57.2 | 34.9 | 38.1 | [3D]KU-16T.stp |
| KU-20T | 1-1/4” | 32 | 1 5/8”-12 | 27.5 | 98.7 | 61.7 | 46 | 50 | [3D]KU-20T.stp |
| KU-24T | 1-1/2” | 38 | 1 7/8”-12 | 33.3 | 123.2 | 69.8 | 50 | 57.2 | [3D]KU-24T.stp |
| KU-32T | 2” | 50 | 2 1/2”-12 | 45 | 141.4 | 86.4 | 70 | 75 | [3D]KU-32T.stp |
