Tube to Male

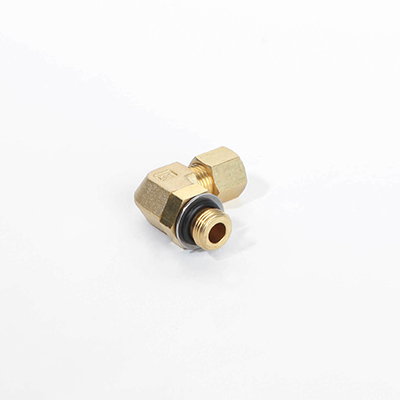

O-Seal Male Elbow
Fittings / Bite type Fittings - JIS / BOLM
| Designations | Tube O.D. D | (PF) T | E | E1 | Width across flat | i | l1 | ℓ | Approx | Download | |||
| h | H1 | H | L1 | L | |||||||||
| BOLM06-01G | 6 | 1/8 | 4 | 4 | 14 | 14 | 14 | 7 | 10 | 20 | 30 | 30.5 | [3D]BOLM06-01G.stp |
| BOLM08-02G | 8 | 1/4 | 6 | 7 | 17 | 19 | 17 | 7 | 12 | 23 | 34 | 33.5 | |
| BOLM10-02G | 10 | 1/4 | 8 | 7 | 17 | 19 | 19 | 7 | 12 | 23 | 35 | 34.5 | |
| BOLM12-02G | 12 | 1/4 | 10 | 7 | 19 | 19 | 22 | 7 | 12 | 24 | 36 | 35.5 | [3D]BOLM12-02G.stp |
| BOLM12-03G | 12 | 3/8 | 10 | 9 | 19 | 22 | 22 | 7 | 12 | 24 | 36 | 35.5 | |
| BOLM12-04G | 12 | 1/2 | 10 | 12 | 24 | 27 | 22 | 7 | 16 | 24 | 46 | 35.5 | [3D]BOLM12-04G.stp |
| BOLM15-03G | 15 | 3/8 | 12 | 9 | 24 | 22 | 27 | 7.5 | 12 | 29 | 40 | 41.5 | |
| BOLM15-04G | 15 | 1/2 | 12 | 12 | 24 | 27 | 27 | 7.5 | 16 | 29 | 46 | 41.5 | [3D]BOLM15-04G.stp |
| BOLM16-04G | 16 | 1/2 | 13 | 12 | 24 | 27 | 30 | 7.5 | 16 | 32 | 46 | 44.5 | [3D]BOLM16-04G.stp |
| BOLM18-04G | 18 | 1/2 | 14 | 12 | 30 | 27 | 32 | 8 | 16 | 32 | 52 | 44.5 | |
| BOLM20-06G | 20 | 3/4 | 17 | 16 | 30 | 36 | 36 | 8 | 17 | 33 | 52 | 45.5 | [3D]BOLM20-06G.stp |
| BOLM22-06G | 22 | 3/4 | 18 | 16 | 32 | 36 | 36 | 9 | 17 | 34 | 52 | 46.5 | |
| BOLM25-06G | 25 | 3/4 | 20 | 16 | 36 | 36 | 41 | 10 | 17 | 36 | 60 | 49.5 | [3D]BOLM25-06G.stp |
| BOLM25-08G | 25 | 1 | 20 | 22 | 36 | 41 | 41 | 10 | 21 | 36 | 62 | 49.5 | [3D]BOLM25-08G.stp |
| BOLM28-08G | 28 | 1 | 22 | 22 | 41 | 41 | 46 | 10 | 21 | 41 | 62 | 55 | [3D]BOLM28-08G.stp |
| BOLM30-08G | 30 | 1 | 25 | 22 | 41 | 41 | 46 | 10 | 21 | 41 | 66 | 55.5 | |
| BOLM30-10G | 30 | 1-1/4 | 25 | 31 | 41 | 50 | 46 | 10 | 21 | 44 | 66 | 58.5 | [3D]BOLM30-10G.stp |
| BOLM32-10G | 32 | 1-1/4 | 26 | 31 | 46 | 50 | 50 | 11 | 21 | 46 | 66 | 60.5 | |
| BOLM35-10G | 35 | 1-1/4 | 28 | 31 | 46 | 50 | 55 | 11 | 21 | 46 | 66 | 63 5 | |
| BOLM38-12G | 38 | 1-1/2 | 32 | 36 | 50 | 55 | 60 | 12 | 21 | 50 | 73 | 69.5 | |
