Tube to Male

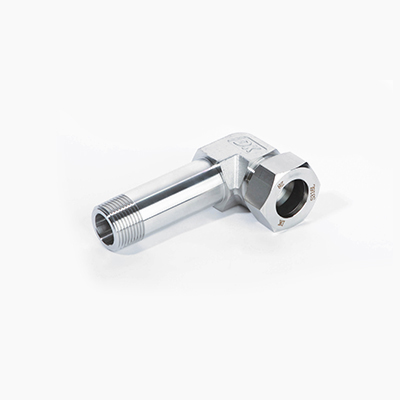

Long Male Elbow
Fittings / Bite type Fittings - JIS / BLLM
| Designations | Tube O.D. D | (PT) T | E | E1 | Base Gauge length a | Width across flat | i | ℓ | Approx | Download | ||
| h | H | L | L1 | |||||||||
| BLLM06-01R | 6 | 1/8 | 4 | 4 | 3.97 | 14 | 14 | 7 | 20 | 30.5 | 36 | |
| BLLM08-02R | 8 | 1/4 | 6 | 7 | 6.01 | 17 | 17 | 7 | 23 | 33.5 | 43 | |
| BLLM10-02R | 10 | 1/4 | 8 | 7 | 6.01 | 17 | 19 | 7 | 23 | 34.5 | 46 | |
| BLLM12-02R | 12 | 1/4 | 10 | 7 | 6.01 | 19 | 22 | 7 | 24 | 35.5 | 52 | |
| BLLM12-03R | 12 | 3/8 | 10 | 9 | 6.35 | 19 | 22 | 7 | 24 | 35.5 | 53 | |
| BLLM15-03R | 15 | 3/8 | 12 | 9 | 6.35 | 22 | 27 | 7.5 | 29 | 41.5 | 61.5 | |
| BLLM15-04R | 15 | 1/2 | 12 | 12 | 8.16 | 24 | 27 | 7.5 | 29 | 41.5 | 67 | [3D]BLLM15-04R.stp |
| BLLM16-04R | 16 | 1/2 | 13 | 12 | 8.16 | 24 | 30 | 7.5 | 32 | 44.5 | 70 | |
| BLLM18-04R | 18 | 1/2 | 14 | 12 | 8.16 | 27 | 32 | 8 | 32 | 44.5 | 77 | |
| BLLM20-06R | 20 | 3/4 | 17 | 16 | 9.53 | 30 | 36 | 8 | 33 | 45.5 | 82.5 | |
| BLLM22-06R | 22 | 3/4 | 18 | 16 | 9.53 | 32 | 36 | 9 | 34 | 46.5 | 83.5 | |
| BLLM25-06R | 25 | 3/4 | 20 | 16 | 9.53 | 36 | 41 | 10 | 36 | 49.5 | 90.5 | |
| BLLM25-08R | 25 | 1 | 20 | 22 | 10.39 | 36 | 41 | 10 | 36 | 49.5 | 91.5 | |
| BLLM28-08R | 28 | 1 | 22 | 22 | 10.39 | 41 | 46 | 10 | 41 | 55 | 104.5 | [3D]BLLM28-08R.stp |
| BLLM30-10R | 30 | 1-1/4 | 25 | 31 | 12.7 | 46 | 46 | 10 | 46 | 60.5 | 104.5 | [3D]BLLM30-10R.stp |
| BLLM32-10R | 32 | 1-1/4 | 26 | 31 | 12.7 | 46 | 50 | 11 | 46 | 60.5 | 104.5 | |
| BLLM35-10R | 35 | 1-1/4 | 28 | 31 | 12.7 | 46 | 55 | 11 | 46 | 63.5 | 121.5 | |
