BLM

Tube to Male

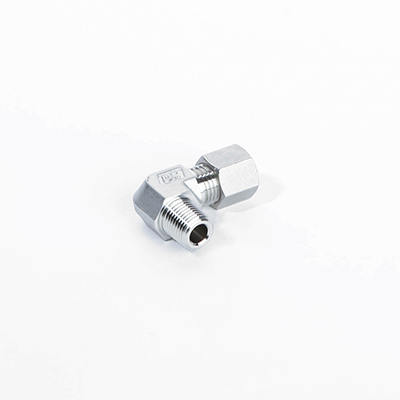

Male Elbow

Fittings / Bite type Fittings - JIS / BLM

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Designations	Tube O.D. D			(PT) T	E	E1	Base Gauge length a	Width across flat		i	ℓ	Approx		Download
Designations	Tube O.D. D			(PT) T	E	E1	Base Gauge length a	h	H	i	ℓ	L	L1	Download
BLM06-01R		6		1/8	4	4	3.97	14	14	7	20	30.5	14	[3D]BLM06-01R.stp
BLM06-02R		6		1/4	4	7	6.01	17	14	7	23	33.5	17	[3D]BLM06-02R.stp
BLM08-01R		8		1/8	6	4	3.97	17	17	7	23	33.5	16	[3D]BLM08-01R.stp
BLM08-02R		8		1/4	6	7	6.01	17	17	7	23	33.5	18	[3D]BLM08-02R.stp
BLM10-02R		10		1/4	8	7	6.01	17	19	7	23	34.5	19	[3D]BLM10-02R.stp
BLM10-03R		10		3/8	8	9	6.35	19	19	7	24	35.5	19.5	[3D]BLM10-03R.stp
BLM10-04R		10		1/2	8	12	8.16	24	19	7	29	40.5	26	[3D]BLM10-04R.stp
BLM12-02R		12		1/4	10	7	6.01	19	22	7	24	35.5	20	[3D]BLM12-02R.stp
BLM12-03R		12		3/8	10	9	6.35	19	22	7	24	35.5	20.5	[3D]BLM12-03R.stp
BLM12-04R		12		1/2	10	12	8.16	24	22	7	29	40.5	26	[3D]BLM12-04R.stp
BLM15-03R		15		3/8	12	9	6.35	24	27	7.5	29	41.5	23.5	[3D]BLM15-03R.stp
BLM15-04R		15		1/2	12	12	8.16	24	27	7.5	29	41.5	26	[3D]BLM15-04R.stp
BLM16-03R		16		3/8	13	9	6.35	27	30	7.5	32	44.5	25.5
BLM16-04R		16		1/2	13	12	8.16	27	30	7.5	32	44.5	27	[3D]BLM16-04R.stp
BLM18-03R		18		3/8	14	9	6.35	27	32	8	32	44.5	27.5
BLM18-04R		18		1/2	14	12	8.16	27	32	8	32	44.5	30	[3D]BLM18-04R.stp
BLM20-04R		20		1/2	17	12	8.16	30	36	8	33	45.5	32	[3D]BLM20-04R.stp
BLM20-06R		20		3/4	17	16	9.53	30	36	8	33	45.5	30.5	[3D]BLM20-06R.stp
BLM22-04R		22		1/2	18	12	8.16	32	36	9	34	46.5	32
BLM22-06R		22		3/4	18	16	9.53	32	36	9	34	46.5	32.5	[3D]BLM22-06R.stp
BLM25-06R		25		3/4	20	16	9.53	36	41	10	36	49.5	33.5	[3D]BLM25-06R.stp
BLM25-08R		25		1	20	22	10.39	36	41	10	36	49.5	35.5	[3D]BLM25-08R.stp
BLM28-06R		28		3/4	22	16	9.53	41	46	10	41	55	37.5
BLM28-08R		28		1	22	22	10.39	41	46	10	41	55	39.5
BLM30-08R		30		1	25	22	10.39	41	46	10	41	55.5	39.5	[3D]BLM30-08R.stp
BLM30-10R		30		1-1/4	25	31	12.7	46	46	10	46	60.5	42.5	[3D]BLM30-10R.stp
BLM32-10R		32		1-1/4	26	31	12.7	46	50	11	46	60.5	43.5
BLM35-10R		35		1-1/4	28	31	12.7	46	55	11	46	63.5	45.5
BLM38-12R		38		1-1/2	32	36	12.7	50	60	12	50	69.5	48 5	[3D]BLM38-12R.stp
BLM40-12R		40		1-1/2	32	36	12.7	55	60	12	55	74.5	49.5
BLM42-12R		42		1-1/2	34	36	12.7	55	60	12	55	74.5	49.5
BLM06A-01R	1/8		10.5	1/8	8	4	3.97	17	19	7	23	34.5	17	[3D]BLM06A-01R.stp
BLM06A-02R	1/8		10.5	1/4	8	7	6.01	17	19	7	23	34.5	19
BLM08A-02R	1/4		13.8	1/4	11	7	6.01	22	24	7.5	28	40	22
BLM08A-03R	1/4		13.8	3/8	11	9	6.35	22	24	7.5	28	40	22.5	[3D]BLM08A-03R.stp
BLM10A-03R	3/8		17.3	3/8	14	9	6.35	27	32	8	32	44.5	27.5	[3D]BLM10A-03R.stp
BLM10A-04R	3/8		17.3	1/2	14	12	8.16	27	32	8	32	44.5	30	[3D]BLM10A-04R.stp
BLM15A-04R	1/2		21.7	1/2	18	12	8.16	32	36	9	34	46.5	32	[3D]BLM15A-04R.stp
BLM15A-06R	1/2		21.7	3/4	18	16	9.53	32	36	9	34	46.5	32.5
BLM20A-06R	3/4		21.2	3/4	22	16	9.53	41	46	10	41	55	37.5	[3D]BLM20A-06R.stp
BLM20A-08R	3/4		27.2	1	22	22	10.39	41	46	10	41	55	39.5	[3D]BLM20A-08R.stp
BLM25A-08R	1		34	1	28	22	10.39	46	55	11	46	63.5	44.5
BLM25A-10R	1		34	1-1/4	28	31	12.7	46	55	11	46	63.5	44.5
BLM32A-10R	1-1/4		42.7	1-1/4	34	31	12.7	60	65	12	57	77.5	51.5
BLM32A-12R	1-1/4		42.7	1-1/2	34	36	12.7	60	75	12	57	77.5	51.5
BLM40A-12R	1-1/2		48.6	1-1/2	40	36	12.7	65	75	12	62	83.5	57.5
BLM40A-16R	1-1/2		48.6	2	40	46	15.88	65	75	12	62	83.5	58
