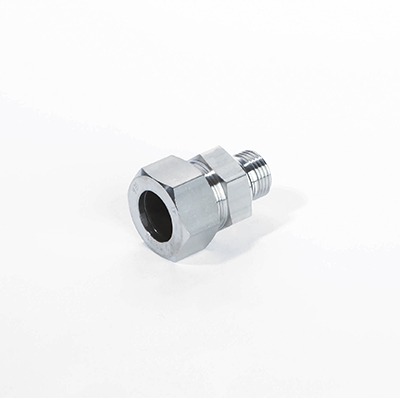

Tube to Male
Male Connector (For O-ring)

Fittings / Bite type Fittings - JIS / BOM

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Designations	Tube O.D. D			(PF) T	E	Width across flat		i	A	l1	ℓ	Approx	Download
Designations	Tube O.D. D			(PF) T	E	H1	H	i	A	l1	ℓ	L	Download
BOM06-01G		6		1/8	4	14	14	7	14	8	28	30.5	[3D]BOM06-01G.stp
BOM06-02G		6		1/4	4	19	14	7	19	12	33	31.5	[3D]BOM06-02G.stp
BOM08-01G		8		1/8	4	17	17	7	14	8	28	30.5
BOM08-02G		8		1/4	6	19	17	7	19	12	33	31.5	[3D]BOM08-02G.stp
BOM10-02G		10		1/4	6	19	19	7	19	12	33	32.5	[3D]BOM10-02G.stp
BOM10-03G		10		3/8	8	22	19	7	22	12	34	33.5	[3D]BOM10-03G.stp
BOM12-02G		12		1/4	6	19	22	7	19	12	33	32.5
BOM12-03G		12		3/8	8	22	22	7	22	12	34	33.5	[3D]BOM12-03G.stp
BOM12-04G		12		1/2	10	27	22	7	27	14	39	36.5	[3D]BOM12-04G.stp
BOM15-03G		15		3/8	8	24	27	7.5	22	12	37	37.5	[3D]BOM15-03G.stp
BOM15-04G		15		1/2	12	27	27	7.5	27	14	41	39.5
BOM16-04G		16		1/2	12	27	30	7.5	27	14	41	39.5
BOM18-04G		18		1/2	12	27	32	8	27	14	41	39.5
BOM20-06G		20		3/4	16	36	36	8	36	16	46	42.5	[3D]BOM20-06G.stp
BOM22-06G		22		3/4	16	36	36	9	36	16	46	42.5
BOM25-06G		25		3/4	16	36	41	10	36	16	46	43 5
BOM25-08G		25		1	20	41	41	10	41	18	50	45.5	[3D]BOM25-08G.stp
BOM28-08G		28		1	22	41	46	10	41	18	52	48	[3D]BOM28-08G.stp
BOM30-08G		30		1	22	41	46	10	41	18	52	48.5
BOM30-10G		30		1-1/4	25	50	46	10	50	20	57	51.5
BOM32-10G		32		1-1/4	26	50	50	11	50	20	57	51.5
BOM35-10G		35		1-1/4	28	50	55	11	50	20	57	54.5	[3D]BOM35-10G.stp
BOM38-12G		38		1-1/2	32	55	60	12	55	21	58	56.5
BOM40-12G		40		1-1/2	32	55	60	12	55	21	62	60.5
BOM42-12G		42		1-1/2	34	55	60	12	55	21	62	60.5
BOM06A-01G	1/8		10.5	1/8	4	17	19	7	14	8	29	32.5
BOM06A-02G	1/8		10.5	1/4	6	19	19	7	19	12	33	32.5
BOM08A-02G	1/4		13.8	1/4	6	22	24	7.5	19	12	36	36
BOM08A-03G	1/4		13.8	3/8	8	22	24	7.5	22	12	36	36
BOM10A-03G	3/8		17.3	3/8	8	27	32	8	22	12	38	38.5
BOM10A-04G	3/8		17.3	1/2	12	27	32	8	27	14	41	39.5
BOM15A-04G	1/2		21.7	1/2	12	32	36	9	27	14	43	41.5	[3D]BOM15A-04G.stp
BOM15A-06G	1/2		21.7	3/4	16	36	36	9	36	16	46	42.5	[3D]BOM15A-06G.stp
BOM20A-06G	3/4		27.2	3/4	16	41	46	10	36	16	50	48	[3D]BOM20A-06G.stp
BOM20A-08G	3/4		27.2	1	22	41	46	10	41	18	52	48	[3D]BOM20A-08G.stp
BOM25A-08G	1		34	1	22	46	55	11	41	18	54	53.5	[3D]BOM25A-08G.stp
BOM25A-10G	1		34	1-1/4	28	50	55	11	50	20	57	54.5
BOM32A-10G	1-1/4		42.7	1-1/4	31	60	65	12	50	20	63	62.5	[3D]BOM32A-10G.stp
BOM32A-12G	1-1/4		42.7	1-1/2	34	60	65	12	55	21	64	62.5
BOM40A-12G	1-1/2		48.6	1-1/2	36	65	75	12	55	21	65	65.5
BOM40A-16G	1-1/2		48.6	2	40	75	75	12	75	25	73	69.5
