Tube to Male

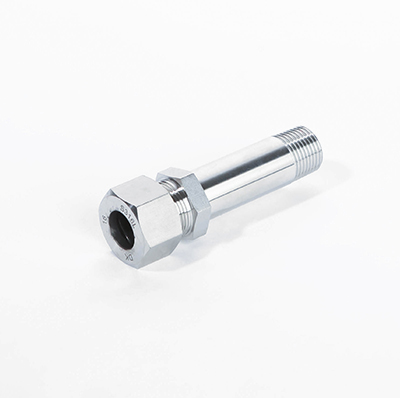

Long Male Connector
Fittings / Bite type Fittings - JIS / BLMC
| Designations | Tube O.D. D | (PT) T | E | Basic Gauge length a | Width across flat | i | ℓ | Approx | Download | |||
| H1 | H | L | ||||||||||
| BLMC06-01R | 6 | 1/8 | 4 | 3.97 | 14 | 14 | 7 | 63 | 69.5 | |||
| BLMC08-02R | 8 | 1/4 | 6 | 6.01 | 17 | 17 | 7 | 70 | 74.5 | |||
| BLMC10-02R | 10 | 1/4 | 7 | 6.01 | 17 | 19 | 7 | 71 | 76.5 | [3D]BLMC10-02R.stp | ||
| BLMC10-03R | 10 | 3/8 | 8 | 6.35 | 19 | 19 | 7 | 72 | 77 | |||
| BLMC12-02R | 12 | 1/4 | 7 | 6.01 | 19 | 22 | 7 | 71 | 76.5 | [3D]BLMC12-02R.stp | ||
| BLMC12-03R | 12 | 3/8 | 9 | 6.35 | 19 | 22 | 7 | 72 | 77 | [3D]BLMC12-03R.stp | ||
| BLMC15-03R | 15 | 3/8 | 9 | 6.35 | 24 | 27 | 7.5 | 81 | 87 | |||
| BLMC15-04R | 15 | 1/2 | 12 | 8.16 | 24 | 27 | 7.5 | 86 | 90.5 | [3D]BLMC15-04R.stp | ||
| BLMC16-04R | 16 | 1/2 | 12 | 8.16 | 27 | 30 | 7.5 | 86 | 90.5 | [3D]BLMC16-04R.stp | ||
| BLMC18-04R | 18 | 1/2 | 12 | 8.16 | 27 | 32 | 8 | 86 | 90.5 | |||
| BLMC20-06R | 20 | 3/4 | 16 | 9.53 | 30 | 36 | 8 | 92 | 95 | |||
| BLMC22-06R | 22 | 3/4 | 16 | 9.53 | 32 | 36 | 9 | 93 | 96 | |||
| BLMC25-08R | 25 | 1 | 20 | 10.39 | 36 | 41 | 10 | 99 | 102 | |||
| BLMC28-08R | 28 | 1 | 22 | 10.39 | 41 | 46 | 10 | 104 | 107.5 | |||
| BLMC30-10R | 30 | 1-1/4 | 25 | 12.7 | 46 | 46 | 10 | 109 | 111 | |||
| BLMC32-10R | 32 | 1-1/4 | 26 | 12.7 | 46 | 50 | 11 | 110 | 112 | |||
| BLMC06A-02R | 1/8 | 10.5 | 1/4 | 7 | 6.01 | 17 | 19 | 7 | 71 | 76.5 | ||
| BLMC08A-03R | 1/4 | 13.8 | 3/8 | 9 | 6.35 | 22 | 24 | 7.5 | 81 | 86.5 | ||
| BLMC10A-03R | 3/8 | 17.3 | 3/8 | 9 | 6.35 | 27 | 32 | 8 | 81 | 87 | [3D]BLMC10A-03R.stp | |
| BLMC15A-06R | 1/2 | 21.7 | 3/4 | 16 | 9.53 | 32 | 36 | 9 | 93 | 96 | ||
| BLMC20A-08R | 3/4 | 27.2 | 1 | 22 | 10.39 | 41 | 46 | 10 | 104 | 107.5 | ||
