Tube to Tube

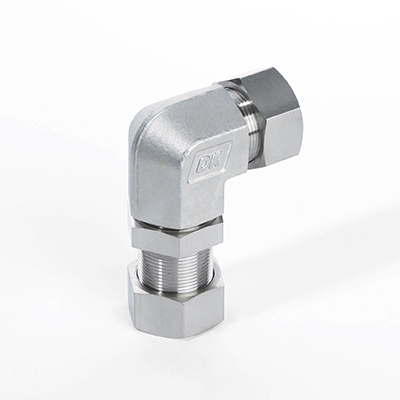

Bulkhead Elbow
Fittings / Bite type Fittings - JIS / BBL
| Designations | Tube O.D. D | E | Width across flat | i | ℓ | Approx | Panel Hole Drill Size N | Max.Panel Thickness S | Download | |||
| h | H1 | H | L1 | L | ||||||||
| BBL-06 | 6 | 4 | 17 | 17 | 14 | 7 | 45 | 33.5 | 55.5 | 12.5 | 13 | [3D]BBL-06.stp |
| BBL-08 | 8 | 6 | 19 | 19 | 17 | 7 | 46 | 34.5 | 56.5 | 14.5 | 13 | [3D]BBL-08.stp |
| BBL-10 | 10 | 8 | 22 | 22 | 19 | 7 | 48 | 37.5 | 59.5 | 16.5 | 13 | [3D]BBL-10.stp |
| BBL-12 | 12 | 10 | 24 | 24 | 22 | 7 | 49 | 38.5 | 60.5 | 18.5 | 13 | [3D]BBL-12.stp |
| BBL-15 | 15 | 12 | 27 | 27 | 27 | 7.5 | 57 | 43.5 | 69.5 | 22.5 | 15 | [3D]BBL-15.stp |
| BBL-16 | 16 | 13 | 30 | 30 | 30 | 7.5 | 59 | 45.5 | 71.5 | 24.5 | 15 | [3D]BBL-16.stp |
| BBL-18 | 18 | 14 | 32 | 32 | 32 | 8 | 63 | 45.5 | 75.5 | 26.5 | 15 | [3D]BBL-18.stp |
| BBL-20 | 20 | 17 | 36 | 36 | 36 | 8 | 65 | 45.5 | 77.5 | 28.5 | 15 | |
| BBL-22 | 22 | 18 | 36 | 36 | 36 | 9 | 65 | 48.5 | 77.5 | 30.5 | 15 | [3D]BBL-22.stp |
| BBL-25 | 25 | 20 | 41 | 41 | 41 | 10 | 68 | 52.5 | 81.5 | 35.5 | 15 | |
| BBL-28 | 28 | 22 | 46 | 46 | 46 | 10 | 70 | 55 | 84 | 38.5 | 15 | [3D]BBL-28.stp |
| BBL-30 | 30 | 25 | 46 | 46 | 46 | 10 | 74 | 60.5 | 88.5 | 40.5 | 15 | |
