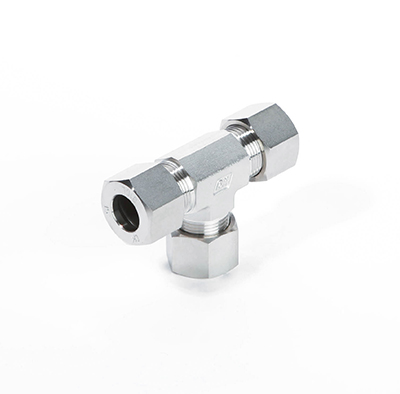

Union Tee
Fittings / Bite type Fittings - JIS / BT
| Designations | Tube O.D. D | E | Width across flat | i | ℓ | Approx | Download | |||
| h | H | L | ||||||||
| BT-06 | 6 | 4 | 14 | 14 | 7 | 20 | 30.5 | [3D]BT-06.stp | ||
| BT-08 | 8 | 6 | 17 | 17 | 7 | 23 | 33.5 | [3D]BT-08.stp | ||
| BT-10 | 10 | 8 | 17 | 19 | 7 | 23 | 34.5 | [3D]BT-10.stp | ||
| BT-12 | 12 | 10 | 19 | 22 | 7 | 24 | 35.5 | [3D]BT-12.stp | ||
| BT-15 | 15 | 12 | 24 | 27 | 7.5 | 29 | 41.5 | [3D]BT-15.stp | ||
| BT-16 | 16 | 13 | 27 | 30 | 7.5 | 32 | 44.5 | [3D]BT-16.stp | ||
| BT-18 | 18 | 14 | 27 | 32 | 8 | 32 | 44.5 | [3D]BT-18.stp | ||
| BT-20 | 20 | 17 | 30 | 36 | 8 | 33 | 45.5 | [3D]BT-20.stp | ||
| BT-22 | 22 | 18 | 32 | 36 | 9 | 34 | 46.5 | [3D]BT-22.stp | ||
| BT-25 | 25 | 20 | 36 | 41 | 10 | 36 | 49.5 | [3D]BT-25.stp | ||
| BT-28 | 28 | 22 | 41 | 46 | 10 | 41 | 55 | |||
| BT-30 | 30 | 25 | 41 | 46 | 10 | 41 | 55.5 | [3D]BT-30.stp | ||
| BT-32 | 32 | 26 | 46 | 50 | 11 | 45 | 59.5 | |||
| BT-35 | 35 | 28 | 46 | 55 | 11 | 46 | 63.5 | |||
| BT-38 | 38 | 32 | 50 | 60 | 12 | 50 | 69.5 | |||
| BT-40 | 40 | 32 | 55 | 60 | 12 | 55 | 74.5 | |||
| BT-42 | 42 | 34 | 55 | 60 | 12 | 55 | 74.5 | |||
| BT-06A | 1/8 | 10.5 | 8 | 17 | 19 | 7 | 23 | 34.5 | [3D]BT-06A.stp | |
| BT-08A | 1/4 | 13.8 | 11 | 22 | 24 | 7.5 | 28 | 40 | [3D]BT-08A.stp | |
| BT-10A | 3/8 | 17.3 | 14 | 27 | 32 | 8 | 32 | 44.5 | [3D]BT-10A.stp | |
| BT-15A | 1/2 | 21.7 | 18 | 32 | 36 | 9 | 34 | 46.5 | [3D]BT-15A.stp | |
| BT-20A | 3/4 | 27.2 | 22 | 41 | 46 | 10 | 41 | 55 | [3D]BT-20A.stp | |
| BT-25A | 1 | 34 | 28 | 46 | 55 | 11 | 46 | 63.5 | [3D]BT-25A.stp | |
| BT-32A | 1-1/4 | 42.7 | 34 | 60 | 65 | 12 | 57 | 77.5 | [3D]BT-32A.stp | |
| BT-40A | 1-1/2 | 48.6 | 40 | 65 | 75 | 12 | 62 | 83.5 | ||
