Tube to Tube

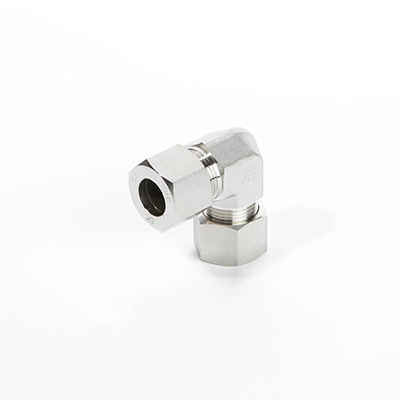

Union Elbow
Fittings / Bite type Fittings - JIS / BL
| Designations | Tube O.D. D | E | Width across flat | i | ℓ | Approx | Download | ||||
| h | H | L | |||||||||
| BL-06 | 6 | 4 | 14 | 14 | 7 | 20 | 30.5 | [3D]BL-06.stp | |||
| BL-08 | 8 | 6 | 17 | 17 | 7 | 23 | 33.5 | [3D]BL-08.stp | |||
| BL-10 | 10 | 8 | 17 | 19 | 7 | 23 | 34.5 | [3D]BL-10.stp | |||
| BL-12 | 12 | 10 | 19 | 22 | 7 | 24 | 35.5 | [3D]BL-12.stp | |||
| BL-15 | 15 | 12 | 24 | 27 | 7.5 | 29 | 41.5 | [3D]BL-15.stp | |||
| BL-16 | 16 | 13 | 27 | 30 | 7.5 | 32 | 44.5 | [3D]BL-16.stp | |||
| BL-18 | 18 | 14 | 27 | 32 | 8 | 32 | 44.5 | [3D]BL-18.stp | |||
| BL-20 | 20 | 17 | 30 | 36 | 8 | 33 | 45.5 | [3D]BL-20.stp | |||
| BL-22 | 22 | 18 | 32 | 36 | 9 | 34 | 46.5 | [3D]BL-22.stp | |||
| BL-25 | 25 | 20 | 36 | 41 | 10 | 36 | 49.5 | [3D]BL-25.stp | |||
| BL-28 | 28 | 22 | 41 | 46 | 10 | 41 | 55 | [3D]BL-28.stp | |||
| BL-30 | 30 | 25 | 41 | 46 | 10 | 41 | 55.5 | [3D]BL-30.stp | |||
| BL-32 | 32 | 26 | 46 | 50 | 11 | 45 | 59.5 | ||||
| BL-35 | 35 | 28 | 46 | 55 | 11 | 46 | 63.5 | ||||
| BL-38 | 38 | 32 | 50 | 60 | 12 | 50 | 69.5 | ||||
| BL-40 | 40 | 32 | 55 | 60 | 12 | 55 | 74.5 | ||||
| BL-42 | 42 | 34 | 55 | 60 | 12 | 55 | 74.5 | [3D]BL-42.stp | |||
| BL-06A | 1/8 | 10.5 | 8 | 17 | 19 | 7 | 23 | 34.5 | [3D]BL-06A.stp | ||
| BL-08A | 1/4 | 13.8 | 11 | 22 | 24 | 7.5 | 28 | 40 | [3D]BL-08A.stp | ||
| BL-10A | 3/8 | 17.3 | 14 | 27 | 32 | 8 | 32 | 44.5 | [3D]BL-10A.stp | ||
| BL-15A | 1/2 | 21.7 | 18 | 32 | 36 | 9 | 34 | 46.5 | [3D]BL-15A.stp | ||
| BL-20A | 3/4 | 27.2 | 22 | 41 | 46 | 10 | 41 | 55 | [3D]BL-20A.stp | ||
| BL-25A | 1 | 34 | 28 | 46 | 55 | 11 | 46 | 63.5 | [3D]BL-25A.stp | ||
| BL-32A | 1-1/4 | 42.7 | 34 | 60 | 65 | 12 | 57 | 77.5 | [3D]BL-32A.stp | ||
| BL-40A | 1-1/2 | 48.6 | 40 | 65 | 75 | 12 | 62 | 83.5 | |||
