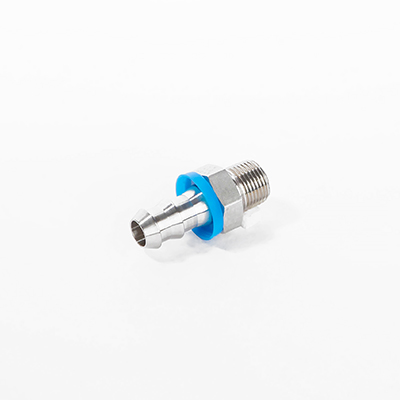

Male Connectors
Fittings / Push-On Hose Fittings / DPHM
| Male Connectors | |||||||
| Part No. | End Connections | Dimensions in. (mm) | Download | ||||
| Hose Nominal Sizes | Male Pipe Thread | Blue Cap OD | Body Hex | A | B | ||
| DPHM 4-4N-S | 1/4 | 1/4 NPT | 0.68 (17.4) | 9/16 | 1.68 (42.7) | 0.92 (23.4) | [3D]DPHM4-4N.stp |
| DPHM 6-4N-S | 3/8 | 0.84 (21.5) | 11/16 | 1.80 (45.7) | 0.93 (23.7) | [3D]DPHM6-4N.stp | |
| DPHM 6-6N-S | 3/8 NPT | 11/16 | [3D]DPHM6-6N.stp | ||||
| DPHM 8-8N-S | 1/2 | 1/2 NPT | 0.98 (24.9) | 7/8 | 2.19 (55.6) | 1.14 (29.1) | [3D]DPHM8-8N.stp |
| DPHM 12-12N-S | 3/4 | 3/4 NPT | 1.26 (32.2) | 1-1/16 | 2.81 (71.4) | 1.15 (29.2) | [3D]DPHM12-12N.stp |
| DPHM 4-4R-S | 1/4 | 1/4 BSPT | 0.68 (17.4) | 9/16 | 1.68 (42.7) | 0.92 (23.4) | [3D]DPHM4-4R.stp |
| DPHM 6-6R-S | 3/8 | 3/8 BSPT | 0.84 (21.5) | 11/16 | 1.80 (45.7) | 0.93 (23.7) | [3D]DPHM6-6R.stp |
| DPHM 8-8R-S | 1/2 | 1/2 BSPT | 0.98 (24.9) | 7/8 | 2.19 (55.6) | 1.14 (29.1) | [3D]DPHM8-8R.stp |
| DPHM 12-12R-S | 3/4 | 3/4 BSPT | 1.26 (32.2) | 1-1/16 | 2.81 (71.4) | 1.15 (29.2) | [3D]DPHM12-12R.stp |
