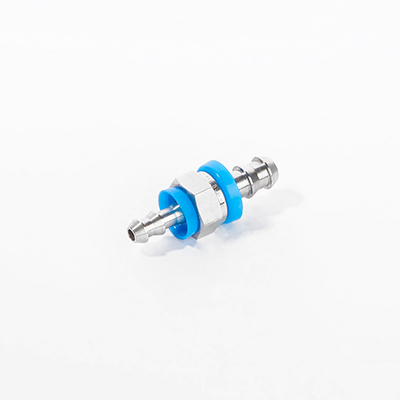

Unions
Fittings / Push-On Hose Fittings / DPHU
| Unions | ||||||
| Part No. | End Connections | Dimensions | Download | |||
| Hose Nominal Sizes | Blue Cap OD | Body Hex | A | B | ||
| inch (mm) | ||||||
| DPHU 4-4-S | 1/4 | 0.68 (17.4) | 9/16 | 2.07 (52.6) | 1.41 (36.0) | [3D]DPHU4-4.stp |
| DPHU 6-6-S | 3/8 | 0.84 (21.5) | 3/4 | 2.25 (57.2) | 1.38 (35.2) | [3D]DPHU6-6.stp |
| DPHU 8-8-S | 1/2 | 0.98 (24.9) | 7/8 | 2.61 (66.3) | 1.56 (39.8) | [3D]DPHU8-8.stp |
| DPHU 12-12-S | 3/4 | 1.26 (32.2) | 1-1/16 | 3.87 (98.4) | 2.21 (56.2) | |
