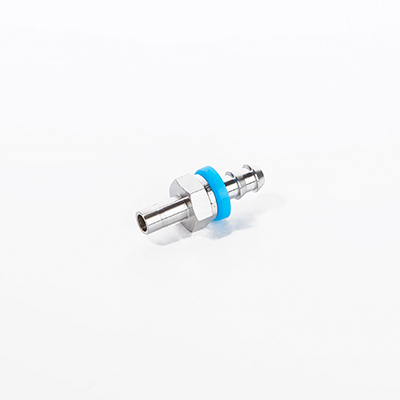

Tube Adapters
Fittings / Push-On Hose Fittings / DPHA
| Tube Adapters | |||||||
| Part No. | End Connections | Dimensions in. (mm) | Download | ||||
| Hose Nominal Sizes | DK-Lok Tube Adapter | Blue Cap OD | Body Hex | A | B | ||
| DPHA 4-4T-S | 1/4 | 1/4 | 0.68 (17.4) | 9/16 | 1.93 (49.0) | 1.17 (29.7) | [3D]DPHA8-8T.stp |
| DPHA 6-6T-S | 3/8 | 3/8 | 0.84 (21.5) | 3/4 | 2.03 (51.6) | 1.16 (29.5) | [3D]DPHA12-12T.stp |
| DPHA 8-8T-S | 1/2 | 1/2 | 0.98 (24.9) | 7/8 | 2.47 (62.7) | 1.42 (36.1) | |
| DPHA 12-12T-S | 3/4 | 3/4 | 1.26 (32.2) | 1-1/16 | 3.14 (79.8) | 1.48 (37.6) | [3D]DPHA4-8M.stp |
| DPHA 4-6M-S | 1/4 in. | 6 mm | 0.68 (17.4) | 9/16 | 1.93 (49.0) | 1.17 (29.7) | |
| DPHA 4-8M-S | 8 mm | 0.68 (17.4) | 9/16 | 1.97 (50.1) | 1.16 (29.5) | [3D]DPHA6-10M.stp | |
| DPHA 6-8M-S | 3/8 in. | 0.84 (21.5) | 3/4 | 2.0 (50.9) | 1.18 (30.0) | [3D]DPHA8-12M.stp | |
| DPHA 6-10M-S | 10 mm | 0.84 (21.5) | 3/4 | 2.03 (51.6) | 1.16 (29.5) | [3D]DPHA12-18M.stp | |
| DPHA 8-12M-S | 1/2 in. | 12 mm | 0.98 (24.9) | 7/8 | 2.47 (62.7) | 1.42 (36.1) | |
| DPHA 12-18M-S | 3/4 in. | 18 mm | 1.26 (32.2) | 1-1/16 | 3.14 (79.8) | 1.48 (37.6) | |
