DMCB

Tube to Male Pipe

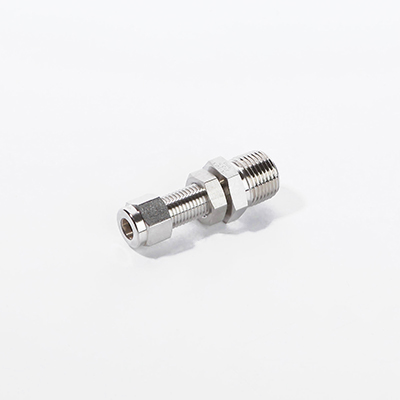

Bulkhead Male Connector

Fittings / Tube Fittings / DMCB

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Connects fractional tube to female NPT thread
Part No.	Tube O.D. D		T NPT	TE Min.	Width across flat						A	ℓ	ℓ1	L	L1	Panel Hole Drill size	Panel Max Thickness	Download
	Tube O.D. D				h		h1		H
	in.	mm			in.	mm	in.	mm	in.	mm
DMCB2-2N	1/8	3.17	1/8	2.28	1/2	12.7	1/2	12.7	7/16	11.11	12.7	39.87	24.63	46.48	31.24	8.33	12.7	[3D]DMCB2-2N.stp
DMCB4-2N	1/4	6.35	1/8	4.82	5/8	15.87	5/8	15.87	9/16	14.28	15.24	42.16	26.16	49.53	33.52	11.5	10.16	[3D]DMCB4-2N.stp
DMCB4-4N	1/4	6.35	1/4	4.82	5/8	15.87	5/8	15.87	9/16	14.28	15.24	45.97	26.16	53.34	33.52	11.5	10.16	[3D]DMCB4-4N.stp
DMCB4-6N	1/4	6.35	3/8	4.8	3/4	19.05	5/8	15.87	9/16	14.28	15.24	45.97	26.16	53.34	33.52	11.5	10.16	[3D]DMCB4-6N.stp
DMCB4-8N	1/4	6.35	1/2	4.8	7/8	22.22	5/8	15.87	9/16	14.28	15.24	53.08	26.16	60.45	33.52	11.5	10.16	[3D]DMCB4-8N.stp
DMCB6-4N	3/8	9.52	1/4	7.11	3/4	19.05	3/4	19.05	11/16	17.46	16.76	50.03	29.46	57.4	36.83	14.68	11.17	[3D]DMCB6-4N.stp
DMCB6-6N	3/8	9.52	3/8	7.11	3/4	19.05	3/4	19.05	11/16	17.46	16.76	50.03	29.46	57.4	36.83	14.68	11.17	[3D]DMCB6-6N.stp
DMCB6-8N	3/8	9.52	1/2	7.11	7/8	22.22	3/4	19.05	11/16	17.46	16.76	56.38	29.46	63.75	36.83	14.68	11.17	[3D]DMCB6-8N.stp
DMCB8-6N	1/2	12.7	3/8	9.39	15/16	23.81	15/16	23.81	7/8	22.22	22.86	53.08	31.75	63.24	41.91	19.44	12.7	[3D]DMCB8-6N.stp
DMCB8-8N	1/2	12.7	1/2	10.41	15/16	23.81	15/16	23.81	7/8	22.22	22.86	58.67	31.75	68.83	41.91	19.44	12.7	[3D]DMCB8-8N.stp
DMCB10-6N	5/8	15.87	3/8	7.93	1-1/16	26.98	1-1/16	26.98	1	25.4	24.38	54.52	32.51	64.68	42.67	22.62	12.7	[3D]DMCB10-6N.stp
DMCB12-12N	3/4	19.05	3/4	15.74	1-3/16	30.16	1-3/16	30.16	1-1/8	28.58	24.38	66.04	37.33	76.2	47.49	25.76	16.76	[3D]DMCB12-12N.stp
DMCB16-16N	1	25.4	1	22.35	1-5/8	41.28	1-5/8	41.28	1-1/2	38.1	31.24	81.02	45.21	93.21	57.4	33.73	19.05	[3D]DMCB16-16N.stp
DMCB20-20N	1-1/4	31.75	1-1/4	27.68	1-7/8	47.63	1-7/8	47.63	1-7/8	47.63	41.14	85.97	47.75	108.07	69.85	41.67	19.05	[3D]DMCB20-20N.stp
DMCB24-24N	1-1/2	38.1	1-1/2	33.9	2-1/4	57.15	2-1/4	57.15	2-1/4	57.15	50.03	93.03	49.27	120.21	76.45	49.61	19.05	[3D]DMCB24-24N.stp
DMCB32-32N	2	50.8	2	45.97	2-3/4	69.85	2-3/4	69.85	3	76.2	67.56	107.29	56.38	144.62	93.71	16.27	19.05	[3D]DMCB32-32N.stp

Connects metric tube to female NPT thread
Part No.	Tube O.D. D	T NPT	TE Min.	Width across flat			A	ℓ	ℓ1	L	L1	Panel Hole Drill size	Panel Max Thickness	Download
Part No.	Tube O.D. D	T NPT	TE Min.	h	h1	H	A	ℓ	ℓ1	L	L1	Panel Hole Drill size	Panel Max Thickness	Download
DMCB6M-2N	6	1/8	4.8	16	16	14	15.3	42.2	26.2	49.6	33.6	11.5	10.2	[3D]DMCB6M-2N.stp
DMCB6M-4N	6	1/4	4.8	16	16	14	15.3	46.2	26.2	53.6	33.6	11.5	10.2	[3D]DMCB6M-4N.stp
DMCB6M-6N	6	3/8	4.8	16	16	14	15.3	46.2	26.2	53.6	33.6	11.5	10.2	[3D]DMCB6M-6N.stp
DMCB6M-8N	6	1/2	4.8	16	16	14	15.3	52.6	26.2	60	33.6	11.5	10.2	[3D]DMCB6M-8N.stp
DMCB8M-6N	8	3/8	6.4	18	18	16	16.2	50	28.6	57.5	36.1	13.1	11.2	[3D]DMCB8M-6N.stp
DMCB10M-4N	10	1/4	7.1	22	22	19	17.2	50	29.4	57.5	37	16.2	11.2	[3D]DMCB10M-4N.stp
DMCB10M-6N	10	3/8	7.9	22	22	19	17.2	50	29.4	57.5	37	16.2	11.2	[3D]DMCB10M-6N.stp
DMCB10M-8N	10	1/2	7.9	22	22	19	17.2	55.9	29.4	63.5	37	16.2	11.2	[3D]DMCB10M-8N.stp
DMCB12M-6N	12	3/8	9.8	24	24	22	22.8	53.3	31.8	63.4	41.9	19.5	12.7	[3D]DMCB12M-6N.stp
DMCB12M-8N	12	1/2	9.8	24	24	22	22.8	58.7	31.8	68.8	41.9	19.5	12.7	[3D]DMCB12M-8N.stp
