DMC

DMC

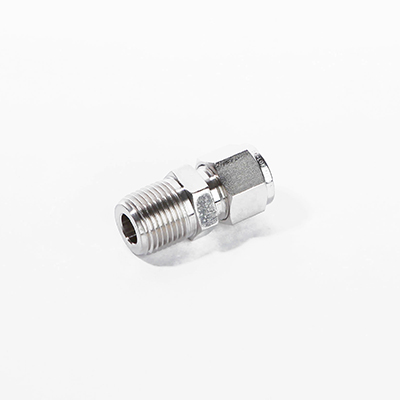

Tube to Male Pipe
Male Connector

Fittings / Tube Fittings / DMC

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download
DMC-N / Connects fractional tube to female NPT thread
Part No.Tube O.D. DT NPTE Min.Width across flatABℓLDownload
hH
in.mmin.mmin.mm
DMC1-1N1/161.591/161.275/167.935/167.938.6310.922023.83[3D]DMC1-1N.stp
DMC1-2N1/161.591/81.277/1611.115/167.938.6310.9222.3526.23[3D]DMC1-2N.stp
DMC1-4N1/161.591/41.279/1614.285/167.938.6310.9227.1730.98[3D]DMC1-4N.stp
DMC2-1N1/83.171/162.287/1611.117/1611.1112.715.2423.1129.71[3D]DMC2-1N.stp
DMC2-2N1/83.171/82.287/1611.117/1611.1112.715.2423.8730.48[3D]DMC2-2N.stp
DMC2-4N1/83.171/42.289/1614.287/1611.1112.715.2428.9535.56[3D]DMC2-4N.stp
DMC2-6N1/83.173/82.2811/1617.467/1611.1112.715.2429.2135.81[3D]DMC2-6N.stp
DMC2-8N1/83.171/22.287/822.227/1611.1112.715.2435.5642.16[3D]DMC2-8N.stp
DMC3-2N3/164.761/83.047/1611.111/212.713.711624.6331.24[3D]DMC3-2N.stp
DMC3-4N3/164.761/43.049/1614.281/212.713.711629.7136.32[3D]DMC3-4N.stp
DMC4-1N1/46.351/164.821/212.79/1614.2815.2417.7825.432.76[3D]DMC4-1N.stp
DMC4-2N1/46.351/84.821/212.79/1614.2815.2417.7825.432.76[3D]DMC4-2N.stp
DMC4-4N1/46.351/44.829/1614.289/1614.2815.2417.7830.4837.84[3D]DMC4-4N.stp
DMC4-6N1/46.353/84.8211/1617.469/1614.2815.2417.7830.9838.35[3D]DMC4-6N.stp
DMC4-8N1/46.351/24.827/822.229/1614.2815.2417.7837.3344.7[3D]DMC4-8N.stp
DMC4-12N1/46.353/44.821-1/1626.989/1614.2815.2417.7838.8646.22[3D]DMC4-12N.stp
DMC5-2N5/167.931/84.829/1614.285/815.8716.2518.5426.6734.03[3D]DMC5-2N.stp
DMC5-4N5/167.931/46.359/1614.285/815.8716.2518.5431.2438.6[3D]DMC5-4N.stp
DMC5-6N5/167.933/86.3511/1617.465/815.8716.2518.5431.7539.11[3D]DMC5-6N.stp
DMC5-8N5/167.931/26.357/822.225/815.8716.2518.5438.1145.6[3D]DMC5-8N.stp
DMC6-2N3/89.521/84.825/815.8711/1617.4616.7619.327.9435.3[3D]DMC6-2N.stp
DMC6-4N3/89.521/47.115/815.8711/1617.4616.7619.332.5139.87[3D]DMC6-4N.stp
DMC6-6N3/89.523/87.1111/1617.4611/1617.4616.7619.332.5139.87[3D]DMC6-6N.stp
DMC6-8N3/89.521/27.117/822.2211/1617.4616.7619.338.8646.22[3D]DMC6-8N.stp
DMC6-12N3/89.523/47.111-1/1626.9811/1617.4616.7619.340.3847.75[3D]DMC6-12N.stp
DMC6-16N3/89.5217.111-3/834.9211/1617.4616.7619.34754.37[3D]DMC6-16N.stp
DMC8-2N1/212.71/84.8213/1620.647/822.2222.8621.8428.738.86[3D]DMC8-2N.stp
DMC8-4N1/212.71/47.1113/1620.647/822.2222.8621.8433.2743.43[3D]DMC8-4N.stp
DMC8-6N1/212.73/89.6513/1620.647/822.2222.8621.8433.2743.43[3D]DMC8-6N.stp
DMC8-8N1/212.71/210.417/822.227/822.2222.8621.8438.8649.02[3D]DMC8-8N.stp
DMC8-12N1/212.73/410.411-1/1626.987/822.2222.8621.8440.3850.54[3D]DMC8-12N.stp
DMC8-16N1/212.7110.411-3/834.927/822.2222.8621.8446.9957.15[3D]DMC8-16N.stp
DMC10-4N5/815.871/46.3515/1623.81125.424.3821.8433.843.96[3D]DMC10-4N.stp
DMC10-6N5/815.873/89.6515/1623.81125.424.3821.8434.0344.19[3D]DMC10-6N.stp
DMC10-8N5/815.871/211.9315/1623.81125.424.3821.8438.8649.02[3D]DMC10-8N.stp
DMC10-12N5/815.873/412.71-1/1626.98125.424.3821.8440.3850.54[3D]DMC10-12N.stp
DMC12-6N3/419.053/89.651-1/1626.981-1/828.5824.3821.8434.0344.19[3D]DMC12-6N.stp
DMC12-8N3/419.051/211.931-1/1626.981-1/828.5824.3821.8440.3850.54[3D]DMC12-8N.stp
DMC12-12N3/419.053/415.741-1/1626.981-1/828.5824.3821.8440.3850.54[3D]DMC12-12N.stp
DMC12-16N3/419.05115.741-3/834.921-1/828.5824.3821.8446.9957.15[3D]DMC12-16N.stp
DMC14-8N7/822.221/211.91-3/1630.161-1/431.7525.921.8440.3850.54[3D]DMC14-8N.stp
DMC14-12N7/822.223/415.741-3/1630.161-1/431.7525.921.8440.3850.54[3D]DMC14-12N.stp
DMC14-16N7/822.22118.281-3/834.921-1/431.7525.921.8446.9957.15[3D]DMC14-16N.stp
DMC16-6N125.43/89.651-3/834.921-1/238.131.2426.4140.352.49[3D]DMC16-6N.stp
DMC16-8N125.41/211.931-3/834.921-1/238.131.2426.4145.2157.4[3D]DMC16-8N.stp
DMC16-12N125.43/415.741-3/834.921-1/238.131.2426.4145.2157.4[3D]DMC16-12N.stp
DMC16-16N125.4122.351-3/834.621-1/238.131.2426.4150.0362.23[3D]DMC16-16N.stp
DMC-N / Connects fractional tube to female NPT thread
Part No.Tube O.D. DT NPTE Min.Width across flatABℓLDownload
hH
in.mmin.mmin.mm
DMC20-16N1-1/431.75122.351-3/444.451-7/847.6341.1438.8655.1177.21[3D]DMC20-16N.stp
DMC20-20N1-1/431.751-1/427.681-3/444.451-7/847.6341.1438.8655.1177.21[3D]DMC20-20N.stp
DMC20-24N1-1/431.751-1/227.681-3/444.451-7/847.6341.1438.8660.5482.64[3D]DMC20-24N.stp
DMC24-16N1-1/238.1122.32-1/853.982-1/457.1550.0345.2159.4286.6[3D]DMC24-16N.stp
DMC24-20N1-1/238.11-1/427.682-1/853.982-1/457.1550.0345.2159.4286.6[3D]DMC24-20N.stp
DMC24-24N1-1/238.11-1/233.92-1/853.982-1/457.1550.0345.2161.7288.9[3D]DMC24-24N.stp
DMC24-32N1-1/238.1233.92-3/469.852-1/457.1550.0345.2162.4299.75[3D]DMC24-32N.stp
DMC32-8N250.81/211.932-3/469.85376.267.5662.7368.4105.73[3D]DMC32-8N.stp
DMC32-20N250.81-1/445.972-3/469.85376.267.5662.7371.4108.73[3D]DMC32-20N.stp
DMC32-24N250.81-1/245.972-3/469.85376.267.5662.7375.5112.83[3D]DMC32-24N.stp
DMC32-32N250.8245.972-3/469.85376.267.5662.7376.2113.53[3D]DMC32-32N.stp
DMC-N / Connects metric tube to female NPT thread
Part No.Tube O.D. DT NPTE Min.Width across flatABℓLDownload
hH
DMC2M-2N21/81.7121212.915.323.930.5[3D]DMC2M-2N.stp
DMC3M-2N31/82.4121212.915.323.129.7[3D]DMC3M-2N.stp
DMC3M-4N31/42.4141212.915.32935.6[3D]DMC3M-4N.stp
DMC4M-2N41/82.4121213.716.124.631.2[3D]DMC4M-2N.stp
DMC4M-4N41/42.4141213.716.129.736.3[3D]DMC4M-4N.stp
DMC6M-2N61/84.8141415.317.725.432.8[3D]DMC6M-2N.stp
DMC6M-4N61/44.8141415.317.730.237.6[3D]DMC6M-4N.stp
DMC6M-6N63/84.8181415.317.73138.4[3D]DMC6M-6N.stp
DMC6M-8N61/24.8221415.317.737.344[3D]DMC6M-8N.stp
DMC8M-2N81/84.8151616.218.626.734.2[3D]DMC8M-2N.stp
DMC8M-4N81/46.4151616.218.631.238.7[3D]DMC8M-4N.stp
DMC8M-6N83/86.4181616.218.631.839.2[3D]DMC8M-6N.stp
DMC8M-8N81/26.4221616.218.637.344.8[3D]DMC8M-8N.stp
DMC10M-2N101/84.8181917.219.528.736.3[3D]DMC10M-2N.stp
DMC10M-4N101/47.1181917.219.533.340.9[3D]DMC10M-4N.stp
DMC10M-6N103/87.9181917.219.533.340.9[3D]DMC10M-6N.stp
DMC10M-8N101/27.9221917.219.538.145.7[3D]DMC10M-8N.stp
DMC10M-12N103/47.9271917.219.538.946.5[3D]DMC10M-12N.stp
DMC12M-2N121/84.8222222.82228.738.8[3D]DMC12M-2N.stp
DMC12M-4N121/47.1222222.82233.343.4[3D]DMC12M-4N.stp
DMC12M-6N123/89.5222222.82233.343.4[3D]DMC12M-6N.stp
DMC12M-8N121/29.5222222.82238.148.2[3D]DMC12M-8N.stp
DMC12M-12N123/49.5272222.82238.949[3D]DMC12M-12N.stp
DMC14M-4N141/46.4242524.4223444.1[3D]DMC14M-4N.stp
DMC14M-6N143/89.5242524.4223444.1[3D]DMC14M-6N.stp
DMC14M-8N141/211.1242524.4223444.1[3D]DMC14M-8N.stp
DMC15M-8N151/211.9242524.42238.949[3D]DMC15M-8N.stp
DMC16M-4N161/47.1242524.4223444.1[3D]DMC16M-4N.stp
DMC16M-6N163/89.5242524.4223444.1[3D]DMC16M-6N.stp
DMC16M-8N161/211.9242524.42238.949[3D]DMC16M-8N.stp
DMC16M-12N163/412.7272524.42238.949[3D]DMC16M-12N.stp
DMC18M-8N181/211.9273024.42240.450.5[3D]DMC18M-8N.stp
DMC18M-12N183/415.1273024.42240.450.5[3D]DMC18M-12N.stp
DMC20M-8N201/211.93032262242.252.3[3D]DMC20M-8N.stp
DMC20M-12N203/415.93032262242.252.3
DMC22M-12N223/415.93032262242.252.3
DMC22M-16N22118.33532262247.857.9[3D]DMC22M-16N.stp
DMC25M-8N251/211.9353831.326.545.257.5
DMC25M-12N253/415.9353831.326.545.257.5
DMC25M-16N25121.8353831.326.55062.3[3D]DMC25M-16N.stp
DMC28M-16N28121.8414636.636.651.672.4[3D]DMC28M-16N.stp
DMC28M-20N281-1/421.8464636.636.652.373.1
DMC30M-20N301-1/426.2465039.639.255.677.2[3D]DMC30M-20N.stp
DMC32M-20N321-1/428.646504241.656.679.6
DMC38M-24N381-1/233.7556049.447.96491.6
DMC-R / Connects fractional tube to female ISO tapered thread
Part No.Tube O.D. DT PTE Min.Width across flatABℓLDownload
hH
in.mmin.mmin.mm
DMC2-2R1/83.171/82.287/1611.117/1611.1112.715.2423.8730.48[3D]DMC2-2R.stp
DMC2-4R1/83.171/42.289/1614.287/1611.1112.715.2428.9535.56[3D]DMC2-4R.stp
DMC4-2R1/46.351/84.821/212.79/1614.2815.2417.7825.432.76[3D]DMC4-2R.stp
DMC4-4R1/46.351/44.829/1614.289/1614.2815.2417.7830.4837.84[3D]DMC4-4R.stp
DMC4-6R1/46.353/84.8211/1617.469/1614.2815.2417.7830.9838.35[3D]DMC4-6R.stp
DMC4-8R1/46.351/24.827/822.229/1614.2815.2417.7837.3344.7[3D]DMC4-8R.stp
DMC5-2R5/167.931/84.829/1614.285/815.8716.2518.5426.6734.03[3D]DMC5-2R.stp
DMC5-4R5/167.931/46.359/1614.285/815.8716.2518.5431.2438.6[3D]DMC5-4R.stp
DMC5-16R5/167.9316.351-3/834.925/815.8716.2518.5446.250
DMC6-2R3/89.521/84.825/815.8711/1617.4616.7619.327.9435.3[3D]DMC6-2R.stp
DMC6-4R3/89.521/47.115/815.8711/1617.4616.7619.332.5139.87[3D]DMC6-4R.stp
DMC6-6R3/89.523/87.1111/1617.4611/1617.4616.7619.332.5139.87[3D]DMC6-6R.stp
DMC6-8R3/89.521/27.117/822.2211/1617.4616.7619.338.8646.22[3D]DMC6-8R.stp
DMC6-12R3/89.523/47.111-1/1626.9811/1617.4616.7619.340.3847.75[3D]DMC6-12R.stp
DMC8-2R1/212.71/84.8213/1620.647/822.2222.8621.8428.738.86[3D]DMC8-2R.stp
DMC8-4R1/212.71/47.1113/1620.647/822.2222.8621.8433.2743.43[3D]DMC8-4R.stp
DMC8-6R1/212.73/89.6513/1620.647/822.2222.8621.8433.2743.43[3D]DMC8-6R.stp
DMC8-8R1/212.71/210.417/822.227/822.2222.8621.8438.8649.02[3D]DMC8-8R.stp
DMC8-12R1/212.73/410.411-1/1626.987/822.2222.8621.8440.3850.54[3D]DMC8-12R.stp
DMC8-16R1/212.7110.411-3/834.927/822.2222.8621.8446.9957.15[3D]DMC8-16R.stp
DMC10-6R5/815.873/89.6515/1623.81125.424.3821.8434.0344.19[3D]DMC10-6R.stp
DMC10-8R5/815.871/211.9315/1623.81125.424.3821.8438.8649.02[3D]DMC10-8R.stp
DMC10-12R5/815.873/412.71-1/1626.98125.424.3821.8440.3850.54[3D]DMC10-12R.stp
DMC12-8R3/419.051/211.931-1/1626.981-1/828.5824.3821.8440.3850.54[3D]DMC12-8R.stp
DMC12-12R3/419.053/415.741-1/1626.981-1/828.5824.3821.8440.3850.54[3D]DMC12-12R.stp
DMC12-16R3/419.05115.741-3/834.921-1/828.5824.3821.8446.9957.15[3D]DMC12-16R.stp
DMC16-12R125.43/415.741-3/834.921-1/238.131.2426.4145.2157.4[3D]DMC16-12R.stp
DMC16-16R125.4122.351-3/834.621-1/238.131.2426.4150.0362.23[3D]DMC16-16R.stp
DMC20-12R1-1/431.753/415.741-3/444.451-7/847.6341.1438.865072.1[3D]DMC20-12R.stp
DMC20-16R1-1/431.75122.351-3/444.451-7/847.6341.1438.8655.1177.21[3D]DMC20-16R.stp
DMC20-20R1-1/431.751-1/427.681-3/444.451-7/847.6341.1438.8655.1177.21[3D]DMC20-20R.stp
DMC32-32R250.8245.972-3/469.85376.267.5662.7376.2113.53[3D]DMC32-32R.stp
DMC-R / Connects metric tube to female ISO tapered thread
Part No.Tube O.D. DT PTE Min.Width across flatABℓLDownload
hH
DMC2M-2R21/81.7121212.915.323.930.5[3D]DMC2M-2R.stp
DMC3M-2R31/82.4121212.915.323.129.7[3D]DMC3M-2R.stp
DMC3M-4R31/42.4141212.915.32935.6[3D]DMC3M-4R.stp
DMC4M-2R41/82.4121213.716.124.631.2[3D]DMC4M-2R.stp
DMC4M-4R41/42.4141213.716.129.736.3[3D]DMC4M-4R.stp
DMC6M-2R61/84.8141415.317.725.432.8[3D]DMC6M-2R.stp
DMC6M-4R61/44.8141415.317.730.237.6[3D]DMC6M-4R.stp
DMC6M-6R63/84.8181415.317.73138.4[3D]DMC6M-6R.stp
DMC6M-8R61/24.8221415.317.737.344[3D]DMC6M-8R.stp
DMC8M-2R81/84.8151616.218.626.734.2[3D]DMC8M-2R.stp
DMC8M-4R81/46.4151616.218.631.238.7[3D]DMC8M-4R.stp
DMC8M-6R83/86.4181616.218.631.839.2[3D]DMC8M-6R.stp
DMC8M-8R81/26.4221616.218.637.344.8[3D]DMC8M-8R.stp
DMC10M-2R101/84.8181917.219.528.736.3[3D]DMC10M-2R.stp
DMC10M-4R101/47.1181917.219.533.340.9[3D]DMC10M-4R.stp
DMC10M-6R103/87.9181917.219.533.340.9[3D]DMC10M-6R.stp
DMC10M-8R101/27.9221917.219.538.145.7[3D]DMC10M-8R.stp
DMC10M-12R103/47.9271917.219.538.946.5[3D]DMC10M-12R.stp
DMC12M-4R121/47.1222222.82233.343.4[3D]DMC12M-4R.stp
DMC12M-6R123/89.5222222.82233.343.4[3D]DMC12M-6R.stp
DMC12M-8R121/29.5222222.82238.148.2[3D]DMC12M-8R.stp
DMC12M-12R123/49.5272222.82238.949[3D]DMC12M-12R.stp
DMC14M-6R143/89.5242524.4223444.1[3D]DMC14M-6R.stp
DMC14M-8R141/211.1242524.4223444.1[3D]DMC14M-8R.stp
DMC15M-6R153/89.5242524.4223444.1[3D]DMC15M-6R.stp
DMC15M-8R151/211.9242524.42238.949[3D]DMC15M-8R.stp
DMC16M-4R161/47.1242524.4223444.1[3D]DMC16M-4R.stp
DMC16M-6R163/89.5242524.4223444.1[3D]DMC16M-6R.stp
DMC16M-8R161/211.9242524.42238.949[3D]DMC16M-8R.stp
DMC16M-12R163/412.7272524.42238.949[3D]DMC16M-12R.stp
DMC18M-8R181/211.9273024.42240.450.5[3D]DMC18M-8R.stp
DMC18M-12R183/415.1273024.42240.450.5[3D]DMC18M-12R.stp
DMC20M-8R201/211.93032262242.252.3
DMC20M-12R203/415.93032262242.252.3
DMC22M-8R221/211.93032262242.252.3
DMC22M-12R223/415.93032262242.252.3
DMC22M-16R22118.33532262247.857.9[3D]DMC22M-16R.stp
DMC25M-8R251/211.9353831.326.545.257.5
DMC25M-12R253/415.9353831.326.545.257.5
DMC25M-16R25121.8353831.326.55062.3[3D]DMC25M-16R.stp
DMC28M-16R28121.8414636.636.651.672.4[3D]DMC28M-16R.stp
DMC28M-20R281-1/421.8464636.636.652.373.1
DMC30M-20R301-1/426.2465039.639.255.677.2
DMC32M-20R321-1/428.646504241.656.679.6
DMC38M-24R381-1/233.7556049.447.96491.6
DMC-G / Connects fractional tube to female ISO tapered thread
Part No.Tube O.D. DT PFE Min.Width across flatABℓℓ1LKDownload
h
in.mmin.mmin.mm
DMC2-2G1/83.171/82.289/1614.287/1611.1112.715.2423.377.1129.9713.8[3D]DMC2-2G.stp
DMC2-4G1/83.171/42.283/419.057/1611.1112.715.2428.711.1835.3118[3D]DMC2-4G.stp
DMC2-6G1/83.173/82.287/822.227/1611.1112.715.2429.7211.1836.2121.8[3D]DMC2-6G.stp
DMC4-2G1/46.351/82.289/1614.289/1614.2815.2417.7824.897.1132.2613.8[3D]DMC4-2G.stp
DMC4-4G1/46.351/44.83/419.059/1614.2815.2417.7830.2311.1837.5918[3D]DMC4-4G.stp
DMC4-6G1/46.353/84.87/822.229/1614.2815.2417.7831.511.1838.8621.8[3D]DMC4-6G.stp
DMC4-8G1/46.351/24.81-1/1626.989/1614.2815.2417.7837.3414.2244.726[3D]DMC4-8G.stp
DMC6-2G3/89.521/84.85/815.8711/1617.4616.7619.326.47.1133.7713.8[3D]DMC6-2G.stp
DMC6-4G3/89.531/44.823/419.0511/1617.4616.7619.331.7511.1839.1218[3D]DMC6-4G.stp
DMC6-6G3/89.533/87.117/822.2211/1617.4616.7619.333.0211.1840.3921.8[3D]DMC6-6G.stp
DMC6-8G3/89.531/27.111-1/1626.9811/1617.4616.7619.338.8614.2246.2326[3D]DMC6-8G.stp
DMC8-4G1/212.71/47.1113/1620.647/822.2222.8621.8432.5111.1842.6718[3D]DMC8-4G.stp
DMC8-6G1/212.73/87.97/822.227/822.2222.8621.8433.0211.1843.1821.8[3D]DMC8-6G.stp
DMC8-8G1/212.71/210.411-1/1626.987/822.2222.8621.8438.8614.2249.0226[3D]DMC8-8G.stp
DMC12-8G3/419.051/211.931-1/1626.981-1/828.5824.3821.8438.8614.2249.0226[3D]DMC12-8G.stp
DMC12-12G3/419.053/415.741-5/1633.331-1/828.5824.3821.8442.6715.7552.8332[3D]DMC12-12G.stp
DMC16-8G125.41/211.931-3/834.921-1/238.131.2426.4143.6914.2255.8826[3D]DMC16-8G.stp
DMC16-12G125.43/415.741-3/834.921-1/238.131.2426.4143.6915.7555.8832[3D]DMC16-12G.stp
DMC16-16G125.4122.351-5/841.271-1/238.131.2426.4147.7518.2959.9439[3D]DMC16-16G.stp
DMC20-20G1-1/431.751-1/427.68250.81-7/847.6341.1438.8651.162073.2649[3D]DMC20-20G.stp
DMC24-24G1-1/238.11-1/234.032-1/457.152-1/457.1550.0345.2157.572284.7554.7[3D]DMC24-24G.stp
DMC-G / Connects metric tube to female ISO tapered thread
Part No.Tube O.D. DT PFE Min.Width across flatABℓℓ1LKDownload
hH
DMC3M-2G31/82.4141212.915.323.47.13013.8[3D]DMC3M-2G.stp
DMC3M-4G31/42.4191212.915.328.711.235.318[3D]DMC3M-4G.stp
DMC4M-2G41/82.4141213.716.124.17.130.713.8[3D]DMC4M-2G.stp
DMC6M-2G61/84141415.317.724.97.132.313.8[3D]DMC6M-2G.stp
DMC6M-4G61/44.8191415.317.730.211.237.618[3D]DMC6M-4G.stp
DMC6M-6G63/84.8221415.317.731.511.238.921.8[3D]DMC6M-6G.stp
DMC6M-8G61/24.8271415.317.737.314.244.726[3D]DMC6M-8G.stp
DMC8M-2G81/84151616.218.625.77.133.213.8[3D]DMC8M-2G.stp
DMC8M-4G81/46.4191616.218.63111.238.513.8[3D]DMC8M-4G.stp
DMC8M-6G83/86.4221616.218.632.311.239.821.8[3D]DMC8M-6G.stp
DMC8M-8G81/26.4271616.218.638.114.245.626[3D]DMC8M-8G.stp
DMC10M-4G101/45.9191917.219.531.811.239.418[3D]DMC10M-4G.stp
DMC10M-6G103/87.9221917.219.53311.240.621.8[3D]DMC10M-6G.stp
DMC10M-8G101/27.9271917.219.538.914.246.526[3D]DMC10M-8G.stp
DMC12M-4G121/45.9222222.82232.511.242.618[3D]DMC12M-4G.stp
DMC12M-6G123/87.9222222.8223311.243.121.8[3D]DMC12M-6G.stp
DMC12M-8G121/29.5272222.82238.914.24926[3D]DMC12M-8G.stp
DMC12M-12G123/49.5352222.82242.715.752.832[3D]DMC12M-12G.stp
DMC15M-8G151/211.9272524.42233.914.24926[3D]DMC15M-8G.stp
DMC16M-6G163/87.9242524.42233.811.243.921.8[3D]DMC16M-6G.stp
DMC16M-8G161/211.9272524.42238.914.24926[3D]DMC16M-8G.stp
DMC18M-8G181/211.9273024.42238.914.24926[3D]DMC18M-8G.stp
DMC18M-12G183/415.1353024.42242.715.752.832[3D]DMC18M-12G.stp
DMC20M-8G201/211.93032262240.414.250.526
DMC20M-12G203/415.93532262242.715.752.832
DMC22M-12G223/415.93532262242.715.752.832[3D]DMC22M-12G.stp
DMC22M-16G22118.34132262245.218.355.339[3D]DMC22M-16G.stp
DMC25M-12G253/415.9353831.326.545.215.757.532[3D]DMC25M-12G.stp
DMC25M-16G25119.8413831.326.547.818.360.139[3D]DMC25M-16G.stp
DMC28M-16G28119.8414636.636.649.318.370.139[3D]DMC28M-16G.stp
DMC28M-20G281-1/421.8504636.636.653.119.873.949
DMC30M-20G301-1/421.8504636.636.653.119.873.949
DMC32M-20G321-1/428.650504241.655.919.878.949
DMC38M-24G381-1/231.8556049.447.961.720.689.354.7[3D]DMC38M-24G.stp
DMC-GB / Connects fractional tube to female ISO parallel thread
Part No.Tube O.D.DT PFE Min.Width across flatABℓℓ1LKDownload
hH
in.mmin.mmin.mm
DMC2-2GB1/83.171/82.289/1614.287/1611.1112.715.2423.377.1129.9713.72[3D]DMC2-2GB.stp
DMC2-4GB1/83.171/42.283/419.057/1611.1112.715.2428.711.1835.3118.03[3D]DMC2-4GB.stp
DMC2-6GB1/83.173/82.287/822.227/1611.1112.715.2429.7211.1836.2121.84[3D]DMC2-6GB.stp
DMC4-2GB1/46.351/82.289/1614.289/1614.2815.2417.7824.897.1132.2613.72[3D]DMC4-2GB.stp
DMC4-4GB1/46.351/44.823/419.059/1614.2815.2417.7830.2311.1837.5918.03[3D]DMC4-4GB.stp
DMC4-6GB1/46.353/84.827/822.229/1614.2815.2417.7831.511.1838.8621.84[3D]DMC4-6GB.stp
DMC4-8GB1/46.351/24.821-1/1626.989/1614.2815.2417.7837.3414.2244.725.91[3D]DMC4-8GB.stp
DMC6-4GB3/89.531/44.823/419.0511/1617.4616.7619.331.7511.1839.1218.03[3D]DMC6-4GB.stp
DMC6-6GB3/89.533/87.117/822.2211/1617.4616.7619.333.0211.1840.3921.84[3D]DMC6-6GB.stp
DMC6-8GB3/89.531/27.111-1/1626.9811/1617.4616.7619.338.8614.2246.2325.91[3D]DMC6-8GB.stp
DMC8-4GB1/212.71/47.1113/1620.647/822.2222.8621.8432.5111.1842.6718.03[3D]DMC8-4GB.stp
DMC8-6GB1/212.73/89.657/822.227/822.2222.8621.8433.0211.1843.1821.84[3D]DMC8-6GB.stp
DMC8-8GB1/212.71/210.411-1/1626.987/822.2222.8621.8438.8614.2249.0225.91[3D]DMC8-8GB.stp
DMC12-8GB3/419.051/211.931-1/1626.981-1/828.5824.3821.8438.8614.2249.0225.91[3D]DMC12-8GB.stp
DMC12-12GB3/419.053/415.741-5/1633.331-1/828.5824.3821.8442.6715.7552.8332[3D]DMC12-12GB.stp
DMC16-8GB125.41/211.931-3/834.921-1/238.131.2426.4143.6914.2255.8825.91[3D]DMC16-8GB.stp
DMC16-16GB125.4122.351-5/841.271-1/238.131.2426.4147.7518.2959.9439.12[3D]DMC16-16GB.stp
DMC20-20GB1-1/431.751-1/427.68250.81-7/847.6341.1438.8651.162073.2649[3D]DMC20-20GB.stp
DMC24-24GB1-1/238.11-1/234.032-1/457.152-1/457.1550.0345.2157.572284.7554.7
DMC-GB / Connects metric tube to female ISO tapered thread
Part No.Tube O.D. DT PFE Min.Width across flatABℓℓ1LKDownload
hH
DMC3M-2GB31/82.4141212.915.323.47.13013.8[3D]DMC3M-2GB.stp
DMC3M-4GB31/42.4191212.915.328.711.235.318[3D]DMC3M-4GB.stp
DMC4M-2GB41/82.4141213.716.124.17.130.713.8[3D]DMC4M-2GB.stp
DMC6M-2GB61/84141415.317.724.97.132.313.8[3D]DMC6M-2GB.stp
DMC6M-4GB61/44.8191415.317.730.211.237.618[3D]DMC6M-4GB.stp
DMC6M-6GB63/84.8221415.317.731.511.238.921.8[3D]DMC6M-6GB.stp
DMC6M-8GB61/24.8271415.317.737.314.244.726[3D]DMC6M-8GB.stp
DMC8M-2GB81/84151616.218.625.77.133.213.8[3D]DMC8M-2GB.stp
DMC8M-4GB81/46.4191616.218.63111.238.513.8[3D]DMC8M-4GB.stp
DMC8M-6GB83/86.4221616.218.632.311.239.821.8[3D]DMC8M-6GB.stp
DMC8M-8GB81/26.4271616.218.638.114.245.626[3D]DMC8M-8GB.stp
DMC10M-4GB101/45.9191917.219.531.811.239.418[3D]DMC10M-4GB.stp
DMC10M-6GB103/87.9221917.219.53311.240.621.8[3D]DMC10M-6GB.stp
DMC10M-8GB101/27.9271917.219.538.914.246.526[3D]DMC10M-8GB.stp
DMC12M-4GB121/45.9222222.82232.511.242.618[3D]DMC12M-4GB.stp
DMC12M-6GB123/87.9222222.8223311.243.121.8[3D]DMC12M-6GB.stp
DMC12M-8GB121/29.5272222.82238.914.24926[3D]DMC12M-8GB.stp
DMC12M-12GB123/49.5352222.82242.715.752.832[3D]DMC12M-12GB.stp
DMC15M-8GB151/211.9272524.42233.914.24926[3D]DMC15M-8GB.stp
DMC16M-6GB163/87.9242524.42233.811.243.921.8[3D]DMC16M-6GB.stp
DMC16M-8GB161/211.9272524.42238.914.24926[3D]DMC16M-8GB.stp
DMC18M-8GB181/211.9273024.42238.914.24926
DMC18M-12GB183/415.1353024.42242.715.752.832
DMC20M-8GB201/211.93032262240.414.250.526
DMC20M-12GB203/415.93532262242.715.752.832
DMC22M-12GB223/415.93532262242.715.752.832
DMC22M-16GB22118.34132262245.218.355.339[3D]DMC22M-16GB.stp
DMC25M-12GB253/415.9353831.326.545.215.757.532
DMC25M-16GB25119.8413831.326.547.818.360.139[3D]DMC25M-16GB.stp
DMC28M-16GB28119.8414636.636.649.318.370.139[3D]DMC28M-16GB.stp
DMC28M-20GB281-1/421.8504636.636.653.119.873.949
DMC30M-20GB301-1/421.8504636.636.653.119.873.949
DMC32M-20GB321-1/428.650504241.655.919.878.949
DMC38M-24GB381-1/231.8556049.447.961.720.689.354.7
DMC-UO / Connects Fractional tube to Female Straight thread
Part No.Tube O.D. DStraight Thread T(U)E Min.Width across flatABℓℓ1LO-Ring Uniform Size NumberDownload
hH
in.mmin.mmin.mm
DMC2-2UO1/83.175/16-242.289/1614.287/1611.1112.715.2426.168.6332.76-11[3D]DMC2-2UO.stp
DMC3-3UO3/164.763/8-243.045/815.871/212.713.711627.689.6534.29-12[3D]DMC3-3UO.stp
DMC4-4UO1/46.357/16-204.823/419.059/1614.2815.2417.7830.9810.4138.35-13[3D]DMC4-4UO.stp
DMC5-5UO5/167.931/2-206.357/822.225/815.8716.2518.5433.2711.1740.64-112[3D]DMC5-5UO.stp
DMC6-6UO3/89.529/16-187.1115/1623.8111/1617.4616.7619.335.0511.9342.41-113[3D]DMC6-6UO.stp
DMC8-8UO1/212.73/4-1610.411-1/828.577/822.2222.8621.8435.8111.9345.97-116[3D]DMC8-8UO.stp
DMC12-12UO3/419.051-1/16-1215.741-1/238.11-1/828.5824.3821.8442.1614.2252.32-121[3D]DMC12-12UO.stp
DMC16-16UO125.41-5/16-1222.351-3/444.451-1/238.131.2426.4145.9714.2258.16-125[3D]DMC16-16UO.stp
DMC-NO / Connects Fractional tube to Female NPT thread
Part No.Tube O.D. DT *(NPT)E Min.Width across flatABℓℓ1LO-Ring Uniform Size NumberDownload
hH
in.mmin.mmin.mm
DMC2-2NO1/83.171/82.283/419.057/1611.1112.715.2426.167.1132.76-13[3D]DMC2-2NO.stp
DMC4-2NO1/46.351/84.823/419.059/1614.2815.2417.7827.687.1135.05-13[3D]DMC4-2NO.stp
DMC4-4NO1/46.351/44.8215/1623.819/1614.2815.2417.7830.989.6538.35-113[3D]DMC4-4NO.stp
DMC6-4NO3/89.521/47.1115/1623.8111/1617.4616.7619.332.519.6539.87-113[3D]DMC6-4NO.stp
DMC6-6NO3/89.523/87.111-1/828.5811/1617.4616.7619.334.0310.4141.4-116[3D]DMC6-6NO.stp
DMC6-8NO3/89.521/27.111-5/1633.3311/1617.4616.7619.339.6213.4646.99-118
DMC8-8NO1/212.71/210.411-5/1633.337/822.2222.8621.8439.6213.4649.78-118[3D]DMC8-8NO.stp
