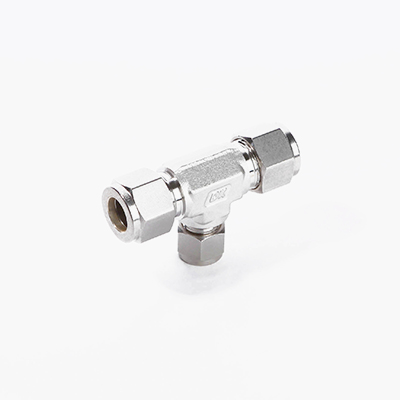

Reducing Union Tee

Fittings / Tube Fittings / DTR

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Connects fractional tube
Part No.	Port 1 D		Port 1 D1		Port 1 D2		E Min.	A	A1	A2	B	B1	B2	Width across flat								ℓ	ℓ1	ℓ1	L	L1	L2	Download
	Port 1 D		Port 1 D1		Port 1 D2									h		H		H1		H2
	in.	mm	in.	mm	in.	mm								in.	mm	in.	mm	in.	mm	in.	mm
DTR4-4-2	1/4	6.35	1/4	6.35	1/8	3.17	2.4	15.24	15.24	12.7	17.78	17.78	15.24	1/2	12.7	9/16	14.28	9/16	14.28	7/16	11.11	19.55	19.55	17.9	26.91	26.91	24.5	[3D]DTR4-4-2.stp
DTR4-4-6	1/4	6.35	1/4	6.35	3/8	9.52	4.8	15.24	15.24	16.76	17.78	17.78	19.3	5/8	15.87	9/16	14.28	9/16	14.28	11/16	17.46	21.92	21.92	23.1	29.28	29.28	30.46	[3D]DTR4-4-6.stp
DTR4-8-8	1/4	6.35	1/2	12.7	1/2	12.7	4.8	15.24	22.86	22.86	17.78	21.84	21.84	13/16	20.64	9/16	14.28	7/8	22.22	7/8	22.22	24.4	25.9	25.9	31.76	36.06	36.06	[3D]DTR4-8-8.stp
DTR6-4-6	3/8	9.52	1/4	6.35	3/8	9.52	4.8	16.76	15.24	16.76	19.3	17.78	19.3	5/8	15.87	11/16	17.46	9/16	14.28	11/16	17.46	23.1	21.92	23.1	30.46	29.28	30.46	[3D]DTR6-4-6.stp
DTR6-6-4	3/8	9.52	3/8	9.52	1/4	6.35	4.8	16.76	16.76	15.24	19.3	19.3	17.78	5/8	15.87	11/16	17.46	11/16	17.46	9/16	14.28	23.1	23.1	21.92	30.46	30.46	29.28	[3D]DTR6-6-4.stp
DTR6-6-8	3/8	9.52	3/8	9.52	1/2	12.7	7.1	16.76	16.76	22.86	19.3	19.3	21.84	13/16	20.64	11/16	17.46	11/16	17.46	7/8	22.22	25.9	25.9	25.9	33.26	33.26	36.06	[3D]DTR6-6-8.stp
DTR8-4-6	1/2	12.7	1/4	6.35	3/8	9.52	4.8	22.86	15.24	16.76	21.84	17.78	19.3	13/16	20.64	7/8	22.22	9/16	14.28	11/16	17.46	25.9	25.9	25.9	36.06	33.26	33.26	[3D]DTR8-4-6.stp
DTR8-4-8	1/2	12.7	1/4	6.35	1/2	12.7	7.1	22.86	15.24	22.86	21.84	17.78	21.84	13/16	20.64	7/8	22.22	9/16	14.28	7/8	22.22	25.9	24.4	25.9	36.06	31.76	36.06	[3D]DTR8-4-8.stp
DTR8-6-6	1/2	12.7	3/8	9.52	3/8	9.52	7.1	22.86	16.76	16.76	21.84	19.3	19.3	13/16	20.64	7/8	22.22	11/16	17.46	11/16	17.46	25.9	25.9	25.9	36.06	33.26	33.26	[3D]DTR8-6-6.stp
DTR8-8-4	1/2	12.7	1/2	12.7	1/4	6.35	4.8	22.86	22.86	15.24	21.84	21.84	17.78	13/16	20.64	7/8	22.22	7/8	22.22	9/16	14.28	25.9	25.9	24.4	36.06	36.06	31.76	[3D]DTR8-8-4.stp
DTR8-8-6	1/2	12.7	1/2	12.7	3/8	9.52	7.1	22.86	22.86	16.76	21.84	21.84	19.3	13/16	20.64	7/8	22.22	7/8	22.22	11/16	17.46	25.9	25.9	25.9	36.06	36.06	33.26	[3D]DTR8-8-6.stp
DTR10-10-6	5/8	15.87	5/8	15.87	3/8	9.52	7.1	24.38	24.38	16.76	21.84	21.84	19.3	15/16	23.81	1	25.4	1	25.4	11/16	17.46	28.7	28.7	28.7	38.86	38.86	36.06	[3D]DTR10-10-6.stp
DTR12-8-12	3/4	19.05	1/2	12.7	3/4	19.05	10.41	24.38	22.86	24.38	21.84	21.84	21.84	1-1/16	26.98	1-1/8	28.57	7/8	22.22	1-1/8	28.57	29.71	29.71	29.71	39.87	39.87	39.87	[3D]DTR12-8-12.stp
DTR12-12-4	3/4	19.05	3/4	19.05	1/4	6.35	4.8	24.38	24.38	15.24	21.84	21.84	17.78	1-1/16	26.98	1-1/8	28.57	1-1/8	28.57	9/16	14.28	29.71	29.71	28.21	39.87	39.87	35.57	[3D]DTR12-12-4.stp
DTR12-12-6	3/4	19.05	3/4	19.05	3/8	9.52	7.1	24.38	24.38	16.76	21.84	21.84	19.3	1-1/16	26.98	1-1/8	28.57	1-1/8	28.57	11/16	17.46	29.71	29.71	29.71	39.87	39.87	35.57	[3D]DTR12-12-6.stp
DTR12-12-8	3/4	19.05	3/4	19.05	1/2	12.7	10.41	24.38	24.38	22.86	21.84	21.84	21.84	1-1/16	26.98	1-1/8	28.57	1-1/8	28.57	7/8	22.22	29.71	29.71	29.71	39.87	39.87	38.37	[3D]DTR12-12-8.stp
DTR12-12-16	3/4	19.05	3/4	19.05	1	25.4	16	24.38	24.38	31.24	21.84	21.84	26.41	1-3/8	34.92	1-1/8	28.57	1-1/8	28.57	1-1/2	38.1	34.43	34.43	36.83	49.02	49.02	45.7	[3D]DTR12-12-16.stp
DTR12-12-20	3/4	19.05	3/4	19.05	1-1/4	31.75	16	24.38	24.38	41.14	21.84	21.84	38.86	1-11/16	42.86	1-1/8	28.57	1-1/8	28.57	1-7/8	47.63	39.41	39.41	44.45	49.57	49.57	66.55	[3D]DTR12-12-20.stp
DTR14-14-8	7/8	22.22	7/8	22.22	1/2	12.7	10.41	25.9	25.9	22.86	21.84	21.84	21.84	1-1/4	31.75	1-1/4	31.75	1-1/4	31.75	7/8	22.22	34.54	34.54	34.54	44.7	44.7	44.7	[3D]DTR14-14-8.stp
DTR16-12-12	1	25.4	3/4	19.05	3/4	19.05	16	31.24	24.38	24.38	26.41	21.84	21.84	1-3/8	34.92	1-1/2	38.1	1-1/8	28.57	1-1/8	28.57	36.83	35.54	35.54	49.02	45.7	45.7	[3D]DTR16-12-12.stp
DTR16-16-4	1	25.4	1	25.4	1/4	6.35	4.8	31.24	31.24	15.24	26.41	26.41	17.78	1-3/8	34.92	1-1/2	38.1	1-1/2	38.1	9/16	14.28	36.83	36.83	33.04	49.02	49.02	40.4	[3D]DTR16-16-4.stp
DTR16-16-6	1	25.4	1	25.4	3/8	9.52	7.1	31.24	31.24	16.76	26.41	26.41	19.3	1-3/8	34.92	1-1/2	38.1	1-1/2	38.1	11/16	17.46	36.83	36.83	34.54	49.02	49.02	41.9	[3D]DTR16-16-6.stp
DTR16-16-8	1	25.4	1	25.4	1/2	12.7	10.41	31.24	31.24	22.86	26.41	26.41	21.84	1-3/8	34.92	1-1/2	38.1	1-1/2	38.1	7/8	22.22	36.83	36.83	34.54	49.02	49.02	44.7	[3D]DTR16-16-8.stp
DTR16-16-12	1	25.4	1	25.4	3/4	19.05	16	31.24	31.24	24.38	26.41	26.41	21.84	1-3/8	34.92	1-1/2	38.1	1-1/2	38.1	1-1/8	28.57	36.83	36.83	35.54	49.02	49.02	45.7	[3D]DTR16-16-12.stp
DTR20-12-12	1 1/4	31.75	3/4	19.05	3/4	19.05	16	41.14	24.38	24.38	38.86	21.84	21.84	1-11/16	42.86	1-7/8	47.63	1-1/8	28.57	1-1/8	28.57	44.45	39.41	39.41	66.55	49.57	49.57	[3D]DTR20-12-12.stp
DTR20-20-12	1 1/4	31.75	1 1/4	31.75	3/4	19.05	16	41.14	41.14	24.38	38.86	38.86	21.84	1-11/16	42.86	1-7/8	47.63	1-7/8	47.63	1-1/8	28.57	44.45	44.45	39.41	66.55	66.55	49.57	[3D]DTR20-20-12.stp
DTR24-20-20	1 1/2	38.1	1 1/4	31.75	1 1/4	31.75	27.69	50.03	41.14	41.14	45.21	38.86	38.86	2	50.8	2-1/4	57.15	1-7/8	47.63	1-7/8	47.63	50.8	49.62	49.62	77.97	71.72	71.72	[3D]DTR24-20-20.stp
DTR24-24-8	1 1/2	38.1	1 1/2	38.1	1/2	12.7	10.41	50.03	50.03	22.86	45.21	45.21	21.84	2	50.8	2-1/4	57.15	2-1/4	57.15	7/8	22.22	50.8	50.8	44.58	77.97	77.97	54.74	[3D]DTR24-24-8.stp
DTR24-24-12	1 1/2	38.1	1 1/2	38.1	3/4	19.05	16	50.03	50.03	24.38	45.21	45.21	21.84	2	50.8	2-1/4	57.15	2-1/4	57.15	1-1/8	28.57	50.8	50.8	44.58	77.97	77.97	54.74	[3D]DTR24-24-12.stp
DTR24-24-16	1 1/2	38.1	1 1/2	38.1	1	25.4	22.3	50.03	50.03	31.24	45.21	45.21	26.41	2	50.8	2-1/4	57.15	2-1/4	57.15	1-1/2	38.1	50.8	50.8	47.75	77.97	77.97	59.94	[3D]DTR24-24-16.stp

Connects metric tube
Part No.	Port 1 D	Port 2 D1	Port 3 D2	E Min.	Width across flat				A	A1	A2	B	B1	B2	ℓ	ℓ1	ℓ1	L	L1	L2	Download
Part No.	Port 1 D	Port 2 D1	Port 3 D2	E Min.	h	H	H1	H2	A	A1	A2	B	B1	B2	ℓ	ℓ1	ℓ1	L	L1	L2	Download
DTR3M-3M-6M	3	3	6	2.4	12.7	12	12	14	12.9	12.9	15.3	15.3	15.3	17.7	18	18	19.6	24.6	24.6	27	[3D]DTR3M-3M-6M.stp
DTR8M-8M-6M	8	8	6	4.8	15	16	16	14	16.2	16.2	15.3	18.6	18.6	17.7	21.3	21.3	20.5	28.8	28.8	28	[3D]DTR8M-8M-6M.stp
DTR10M-10M-6M	10	10	6	4.8	17.4	19	19	14	17.2	17.2	15.3	19.5	19.5	17.7	23.9	23.9	22.4	31.5	31.5	29.8	[3D]DTR10M-10M-6M.stp
DTR10M-10M-12M	10	10	12	7.9	20.6	19	19	22	17.2	17.2	22.8	19.5	19.5	22	25.9	25.9	25.9	33.5	33.5	36	[3D]DTR10M-10M-12M.stp
DTR12M-6M-10M	12	6	10	4.8	20.6	22	14	19	22.8	15.3	17.2	22	17.7	19.5	25.9	24.4	25.9	36	31.8	33.5	[3D]DTR12M-6M-10M.stp
DTR12M-6M-12M	12	6	12	4.8	20.6	22	14	22	22.8	15.3	22.8	22	17.7	22	25.9	24.4	25.9	36	31.8	36	[3D]DTR12M-6M-12M.stp
DTR12M-10M-10M	12	10	10	7.9	20.6	22	19	19	22.8	17.2	17.2	22	19.5	19.5	25.9	25.9	25.9	36	33.5	33.5	[3D]DTR12M-10M-10M.stp
DTR12M-12M-10M	12	12	10	7.9	20.6	22	22	19	22.8	22.8	17.2	22	22	19.5	25.9	25.9	25.9	36	36	33.5	[3D]DTR12M-12M-10M.stp
DTR12M-12M-6M	12	12	6	4.8	20.6	22	22	14	22.8	22.8	15.3	22	22	17.7	25.9	25.9	24.4	36	36	31.8	[3D]DTR12M-12M-6M.stp
DTR15M-15M-12M	15	15	12	9.8	25.4	25	25	22	24.4	24.4	22.8	22	22	22	28.7	28.7	28.7	38.8	38.8	38.8	[3D]DTR15M-15M-12M.stp
DTR16M-16M-12M	16	16	12	9.8	25.4	25	25	22	24.4	24.4	22.8	22	22	22	28.7	28.7	28.7	38.8	38.8	38.8	[3D]DTR16M-16M-12M.stp
DTR18M-18M-12M	18	18	12	9.8	27	30	30	22	24.4	24.4	22.8	22	22	22	29.7	29.7	28.2	39.8	39.8	38.3	[3D]DTR18M-18M-12M.stp
DTR20M-12M-20M	20	12	20	9.8	34.9	32	22	32	26	22.8	26	22	22	22	32.5	32.5	32.5	42.6	42.6	42.6	[3D]DTR20M-12M-20M.stp
DTR20M-20M-6M	20	20	6	4.8	34.9	32	32	14	26	26	15.3	22	22	17.7	32.5	32.5	31	42.6	42.6	38.4	[3D]DTR20M-20M-6M.stp
DTR20M-20M-10M	20	20	10	7.9	34.9	32	32	19	26	26	17.2	22	22	19.5	32.5	32.5	32.5	42.6	42.6	40.1	[3D]DTR20M-20M-10M.stp
DTR20M-20M-12M	20	20	12	9.8	34.9	32	32	22	26	26	22.8	22	22	22	32.5	32.5	32.5	42.6	42.6	42.6	[3D]DTR20M-20M-12M.stp
DTR20M-20M-25M	20	20	25	15.9	34.9	32	32	38	26	26	31.3	22	22	26.5	34.3	34.3	36.8	44.4	44.4	49.1	[3D]DTR20M-20M-25M.stp
DTR20M-20M-32M	20	20	32	15.9	46	32	32	50	26	26	42	22	22	41.6	42.5	42.5	49.3	52.6	52.6	72.3	[3D]DTR20M-20M-32M.stp
DTR22M-22M-12M	22	22	12	9.8	34.9	32	32	22	26	26	22.8	22	22	22	32.5	32.5	32.5	42.6	42.6	42.6	[3D]DTR22M-22M-12M.stp
DTR25M-20M-20M	25	20	20	15.9	34.9	38	32	32	31.3	26	26	26.5	22	22	36.8	34.3	34.3	49.1	44.4	44.4	[3D]DTR25M-20M-20M.stp
DTR25M-25M-10M	25	25	10	7.9	34.9	38	38	19	31.3	31.3	17.2	26.5	26.5	19.5	36.8	36.8	34.3	49.1	49.1	38.9	[3D]DTR25M-25M-10M.stp
DTR25M-25M-12M	25	25	12	9.8	34.9	38	38	22	31.3	31.3	22.8	26.5	26.5	22	36.8	36.8	34.3	49.1	49.1	44.4	[3D]DTR25M-25M-12M.stp
DTR25M-25M-20M	25	25	20	15.9	34.9	38	38	32	31.3	31.3	26	26.5	26.5	22	36.8	36.8	34.3	49.1	49.1	44.4	[3D]DTR25M-25M-20M.stp
DTR32M-32M-20M	32	32	20	15.9	46	38	38	32	42	42	26	41.6	41.6	22	49.3	49.3	42.5	72.3	72.3	52.6	[3D]DTR32M-32M-20M.stp
DTR38M-32M-32M	38	32	32	28.6	50.8	60	38	38	49.4	42	42	47.9	41.6	41.6	56.4	54.7	54.7	84	77.7	77.7	[3D]DTR38M-32M-32M.stp
DTR38M-38M-20M	38	38	20	15.9	50.8	60	60	32	49.4	49.4	26	47.9	47.9	22	56.4	56.4	47.9	84	84	58	[3D]DTR38M-38M-20M.stp
DTR38M-38M-25M	38	38	25	21.8	50.8	60	60	38	49.4	49.4	31.3	47.9	47.9	26.5	56.4	56.4	50.4	84	84	62.7	[3D]DTR38M-38M-25M.stp
