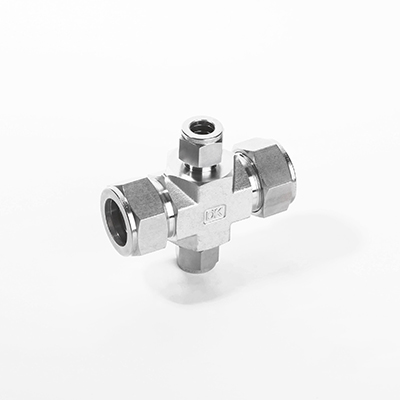

Reducing Union Cross
Fittings / Tube Fittings / DXR
| Connects fractional tube | |||||||||||||||||||
| Part No. | Port 1 | Port 2 | Port 3 | Port 4 | E Min. | Width across flat | A | A1 | B | B1 | ℓ | ℓ1 | L | L1 | Download | ||||
| D | D1 | h | H | H1 | |||||||||||||||
| in. | mm | in. | mm | in. | in. | mm | in. | mm | |||||||||||
| DXR12-12-6-6 | 3/4 | 19.05 | 3/8 | 9.52 | 7.1 | 1-1/16 | 1-1/8 | 28.57 | 11/16 | 17.46 | 24.38 | 16.76 | 21.84 | 19.3 | 29.71 | 29.71 | 39.87 | 37.07 | [3D]DXR12-12-6-6.stp |
| Connects metric tube | |||||||||||||||||||
| Part No. | Port 1 D | Port 2 | Port 3 | Port 4 | E Min. | Width across flat | A | A1 | B | B1 | ℓ | ℓ1 | L | L1 | Download | ||||
| D1 | h | H | H1 | ||||||||||||||||
| DXR16M-6M-6M-6M | 16 | 6 | 4.8 | 25.4 | 25 | 14 | 24.4 | 15.3 | 22 | 17.7 | 28.7 | 27.2 | 38.8 | 34.6 | [3D]DXR16M-6M-6M-6M.stp | ||||
