DLR

Tube to Tube Union

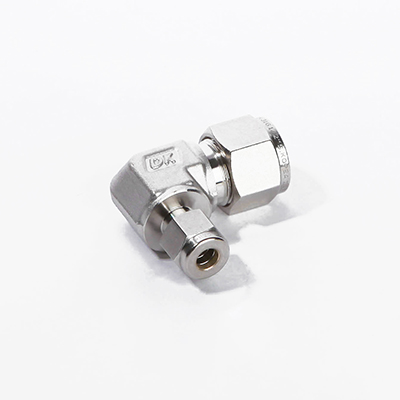

Reducing Union Elbow

Fittings / Tube Fittings / DLR

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Connects fractional tube
Part No.	Tube O.D.				Width across flat						E	E1	A	A1	B	B1	ℓ	ℓ1	L	L1	Download
	D		D1		h		H		H1
	in.	mm	in.	mm	in.	mm	in.	mm	in.	mm
DLR2-1	1/8	3.17	1/16	1.59	3/8	9.52	7/6	11.11	5/16	7.93	2.4	1.3	12.7	8.63	15.24	10.93	15.74	14.2	22.35	18	[3D]DLR2-1.stp
DLR4-2	1/4	6.35	1/8	3.17	1/2	12.7	9/16	14.28	7/6	11.11	4.8	2.4	15.24	12.7	17.78	15.24	19.55	17.9	26.92	24.5	[3D]DLR4-2.stp
DLR6-4	3/8	9.52	1/4	6.35	5/8	15.87	11/16	17.46	9/16	14.28	7.1	4.8	16.76	15.24	19.3	17.78	23.1	21.92	30.47	29.29	[3D]DLR6-4.stp
DLR8-4	1/2	12.7	1/4	6.35	13/16	20.64	7/8	22.22	9/16	14.28	10.41	4.8	22.86	15.24	21.84	17.78	25.9	24.4	36.06	31.77	[3D]DLR8-4.stp
DLR8-6	1/2	12.7	3/8	9.52	13/16	20.64	7/8	22.22	11/16	17.46	10.41	7.1	22.86	16.76	21.84	19.3	25.9	25.9	36.06	33.27	[3D]DLR8-6.stp
DLR12-8	1/2	12.7	3/8	9.52	13/16	20.64	7/8	22.22	11/16	17.46	10.41	7.1	22.86	16.76	21.84	19.3	25.9	25.9	36.06	33.27	[3D]DLR12-8.stp
DLR16-8	1/2	12.7	3/8	9.52	13/16	20.64	7/8	22.22	11/16	17.46	10.41	7.1	22.86	16.76	21.84	19.3	25.9	25.9	36.06	33.27	[3D]DLR16-8.stp
DLR16-12	1/2	12.7	3/8	9.52	13/16	20.64	7/8	22.22	11/16	17.46	10.41	7.1	22.86	16.76	21.84	19.3	25.9	25.9	36.06	33.27	[3D]DLR16-12.stp

Connects metric tube

Part No.

Tube O.D.

Width across flat

E

E1

A

A1

B

B1

ℓ

ℓ1

L

L1

Download

D

D1

h

H

H1

in.

mm

in.

mm

mm

in.

mm

DLR8M-4

8

1/4

6.35

9/16

14.28

16

9/16

14.28

6.4

4.8

16.2

15.24

18.6

17.78

21.3

20.6

28.7

28

[3D]DLR8M-4.stp
