DUR

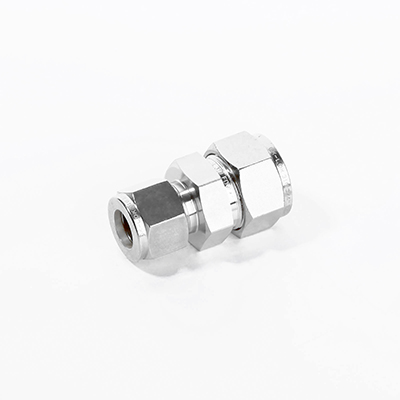

Tube to Tube Union
Reducing Union

Fittings / Tube Fittings / DUR

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Connects fractional tube
Part No.	Tube O.D.				E Min.	Width across flat						A	A1	B	B1	ℓ	L	Download
	D		D1			h		H		H1
	in.	mm	in.	mm		in.	mm	in.	mm	in.	mm
DUR2-1	1/8	3.18	1/16	1.59	1.27	7/16	11.11	7/16	11.11	5/16	7.93	12.7	8.63	15.24	10.92	20.6	30.91	[3D]DUR2-1.stp
DUR3-1	3/16	4.76	1/16	1.59	1.27	7/16	11.11	1/2	12.7	5/16	7.93	13.71	8.63	16	10.92	21.84	32.25	[3D]DUR3-1.stp
DUR3-2	3/16	4.76	1/8	3.17	2.28	7/16	11.11	1/2	12.7	7/16	11.11	13.71	12.7	16	15.24	23.36	36.57	[3D]DUR3-2.stp
DUR4-1	1/4	6.35	1/16	1.59	1.27	1/2	12.7	9/16	14.28	5/16	7.93	15.24	8.63	17.78	10.92	23.11	34.29	[3D]DUR4-1.stp
DUR4-2	1/4	6.35	1/8	3.17	2.28	1/2	12.7	9/16	14.28	7/16	11.11	15.24	12.7	17.78	15.24	24.63	38.6	[3D]DUR4-2.stp
DUR4-3	1/4	6.35	3/16	4.76	3.04	1/2	12.7	9/16	14.28	1/2	12.7	15.24	13.71	17.78	16	25.4	39.37	[3D]DUR4-3.stp
DUR5-2	5/16	7.93	1/8	3.17	2.28	9/16	14.28	5/8	15.87	7/16	11.11	16.25	12.7	18.54	15.24	25.9	39.87	[3D]DUR5-2.stp
DUR5-4	5/16	7.93	1/4	6.35	4.82	9/16	14.28	5/8	15.87	9/16	14.28	16.25	15.24	18.54	17.78	27.43	42.16	[3D]DUR5-4.stp
DUR6-1	3/8	9.52	1/16	1.59	1.27	5/8	15.87	11/16	17.46	5/16	7.93	16.76	8.63	19.3	10.92	25.4	36.57	[3D]DUR6-1.stp
DUR6-2	3/8	9.52	1/8	3.17	2.28	5/8	15.87	11/16	17.46	7/16	11.11	16.76	12.7	19.3	15.24	26.92	40.89	[3D]DUR6-2.stp
DUR6-4	3/8	9.52	1/4	6.35	4.82	5/8	15.87	11/16	17.46	9/16	14.28	16.76	15.24	19.3	17.78	28.44	43.18	[3D]DUR6-4.stp
DUR6-5	3/8	9.52	5/16	7.93	6.35	5/8	15.87	11/16	17.46	5/8	15.87	16.76	16.25	19.3	18.54	29.46	44.19	[3D]DUR6-5.stp
DUR8-2	1/2	12.7	1/8	3.17	2.28	13/16	20.64	7/8	22.22	7/16	11.11	22.86	12.7	21.84	15.24	28.44	45.21	[3D]DUR8-2.stp
DUR8-4	1/2	12.7	1/4	6.35	4.82	13/16	20.64	7/8	22.22	9/16	14.28	22.86	15.24	21.84	17.78	29.46	46.99	[3D]DUR8-4.stp
DUR8-6	1/2	12.7	3/8	9.52	7.11	13/16	20.64	7/8	22.22	11/16	17.46	22.86	16.76	21.84	19.3	30.98	48.51	[3D]DUR8-6.stp
DUR10-6	5/8	15.87	3/8	9.52	7.11	15/16	23.81	1	25.4	11/16	17.46	24.38	16.76	21.84	19.3	31.75	49.27	[3D]DUR10-6.stp
DUR10-8	5/8	15.87	1/2	12.7	10.41	15/16	23.81	1	25.4	7/8	22.22	24.38	22.86	21.84	21.84	31.75	52.07	[3D]DUR10-8.stp
DUR12-4	3/4	19.05	1/4	6.35	4.82	1-1/16	26.98	1-1/8	28.57	9/16	14.48	24.38	15.24	21.84	17.78	31.75	49.27	[3D]DUR12-4.stp
DUR12-6	3/4	19.05	3/8	9.52	7.11	1-1/16	26.98	1-1/8	28.57	11/16	17.46	24.38	16.76	21.84	19.3	33.27	50.8	[3D]DUR12-6.stp
DUR12-8	3/4	19.05	1/2	12.7	10.41	1-1/16	26.98	1-1/8	28.57	7/8	22.22	24.38	22.86	21.84	21.84	33.27	53.59	[3D]DUR12-8.stp
DUR12-10	3/4	19.05	5/8	15.87	12.7	1-1/16	26.98	1-1/8	28.57	1	25.4	24.38	24.38	21.84	21.84	33.27	53.59	[3D]DUR12-10.stp
DUR16-8	1	25.4	1/2	12.7	10.41	1-3/8	34.92	1-1/2	38.1	7/8	22.22	31.24	22.86	26.41	21.84	40.89	63.24	[3D]DUR16-8.stp
DUR20-12	1	25.4	3/4	19.05	15.74	1-3/8	34.92	1-1/2	38.1	1-1/8	28.58	31.24	24.38	26.41	21.84	40.38	62.73	[3D]DUR20-12.stp

Connects metric tube
Part No.	Tube O.D.		E Min.	Width across flat			A	A1	B	B1	ℓ	L	Dowload
Part No.	D	D1	E Min.	h	H	H1	A	A1	B	B1	ℓ	L	Dowload
DUR3M-2M	3	2	1.7	12	12	12	12.9	12.9	15.3	15.3	22.1	35.3	[3D]DUR3M-2M.stp
DUR6M-2M	6	2	1.7	14	14	12	15.3	12.9	17.7	15.3	24.6	38.6	[3D]DUR6M-2M.stp
DUR6M-3M	6	3	2.4	14	14	12	15.3	12.9	17.7	15.3	24.6	38.6	[3D]DUR6M-3M.stp
DUR6M-4M	6	4	2.4	14	14	12	15.3	13.7	17.7	16.1	25.4	39.4	[3D]DUR6M-4M.stp
DUR8M-6M	8	6	4.8	15	16	14	16.2	15.3	18.6	17.7	27.4	42.3	[3D]DUR8M-6M.stp
DUR10M-3M	10	3	2.4	18	19	12	17.2	12.9	19.5	15.3	27.7	41.9	[3D]DUR10M-3M.stp
DUR10M-4M	10	4	2.4	18	19	12	17.2	13.7	19.5	16.1	28.7	42.9	[3D]DUR10M-4M.stp
DUR10M-6M	10	6	4.8	18	19	14	17.2	15.3	19.5	17.7	29.5	44.5	[3D]DUR10M-6M.stp
DUR10M-8M	10	8	6.4	18	19	16	17.2	16.2	19.5	18.6	30	45.1	[3D]DUR10M-8M.stp
DUR12M-6M	12	6	4.8	22	22	14	22.8	15.3	22	17.7	29.5	47	[3D]DUR12M-6M.stp
DUR12M-8M	12	8	6.4	22	22	16	22.8	16.2	22	18.6	30.2	47.8	[3D]DUR12M-8M.stp
DUR12M-10M	12	10	7.9	22	22	19	22.8	17.2	22	19.5	31	48.7	[3D]DUR12M-10M.stp
DUR15M-12M	15	12	9.8	24	25	22	24.4	17.2	22	19.5	31.8	52.5	[3D]DUR15M-12M.stp
DUR16M-10M	16	10	7.9	24	25	19	24.4	17.2	22	19.5	31.8	49.5	[3D]DUR16M-10M.stp
DUR16M-12M	16	12	9.5	24	25	22	24.4	22.8	22	22	31.8	52	[3D]DUR16M-12M.stp
DUR18M-10M	18	10	7.9	27	30	19	24.4	17.2	22	19.5	33	51	[3D]DUR18M-10M.stp
DUR18M-12M	18	12	9.5	27	30	22	24.4	22.8	22	22	33.3	53.5	[3D]DUR18M-12M.stp
DUR25M-18M	25	18	15.1	35	38	30	31.3	24.4	26.5	22	38.6	61	[3D]DUR25M-18M.stp
DUR25M-20M	25	20	15.9	35	38	32	31.3	26	26.5	22	39.9	62.3	[3D]DUR25M-20M.stp
DUR30M-18M	30	18	15.1	46	50	30	39.7	24.4	39.3	22	43.7	75.4	[3D]DUR30M-18M.stp
DUR30M-20M	30	20	15.9	46	50	32	39.7	26	39.3	22	43.7	75.4	[3D]DUR30M-20M.stp
DUR30M-25M	30	25	21.8	46	50	38	39.7	31.3	39.3	26.5	46.2	80.1	[3D]DUR30M-25M.stp
DUR32M-18M	32	18	15.1	46	50	30	42	24.4	41.6	22	44.7	77.8
DUR32M-20M	32	20	15.9	46	50	32	42	26	41.6	22	44.7	77.8	[3D]DUR32M-20M.stp
DUR32M-25M	32	25	21.8	46	50	38	42	31.3	41.6	26.5	47	82.3	[3D]DUR32M-25M.stp
DUR38M-20M	38	20	15.9	55	60	32	49.4	26	47.9	22	49.8	87.5	[3D]DUR38M-20M.stp
DUR38M-25M	38	25	21.8	55	60	38	49.4	31.3	47.9	26.5	52.1	92	[3D]DUR38M-25M.stp
DUR38M-30M	30	30	26.2	55	60	50	49.4	39.7	47.9	39.3	55.4	104.6	[3D]DUR38M-30M.stp
