DT

Tube to Tube Union

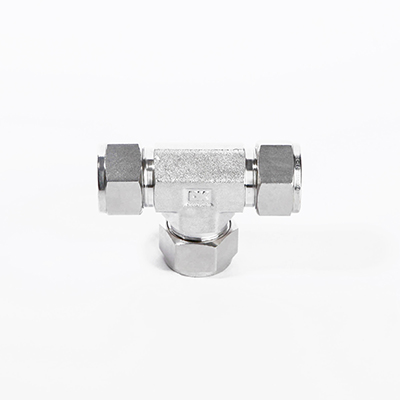

Union Tee

Fittings / Tube Fittings / DT

exclamationPlease log in to download the 3D model. file_exportView Catalog

Product Details / Specifications

downloadLogin required to download

Connects fractional tube
Part No.	Tube O.D. D		E Min.	Width across flat				A	B	ℓ	L	Download
	Tube O.D. D			h		H
	in.	mm		in.	mm	in.	mm
DT-1	1/16	1.59	1.27	3/8	9.52	5/16	7.93	8.63	10.92	14	17.88	[3D]DT-1.stp
DT-2	1/8	3.17	2.28	3/8	9.52	7/16	11.11	12.7	15.24	15.74	22.35	[3D]DT-2.stp
DT-3	3/16	4.76	3.04	1/2	12.7	1/2	12.7	13.71	16	17.78	24.38	[3D]DT-3.stp
DT-4	1/4	6.35	4.82	1/2	12.7	9/16	14.28	15.24	17.78	19.55	26.92	[3D]DT-4.stp
DT-5	5/16	7.93	6.35	9/16	14.28	5/8	15.87	16.25	18.54	21.33	28.7	[3D]DT-5.stp
DT-6	3/8	9.52	7.11	5/8	15.87	11/16	17.46	16.76	19.3	23.11	30.48	[3D]DT-6.stp
DT-8	1/2	12.7	10.41	13/16	20.64	7/8	22.22	22.86	21.84	25.9	36.06	[3D]DT-8.stp
DT-10	5/8	15.87	12.7	15/16	23.81	1	25.4	24.38	21.84	28.7	38.8	[3D]DT-10.stp
DT-12	3/4	19.05	15.74	1-1/16	26.98	1-1/8	28.58	24.38	21.84	29.71	39.87	[3D]DT-12.stp
DT-14	7/8	22.22	18.28	1-3/8	34.92	1-1/4	31.75	25.9	21.84	34.54	44.7	[3D]DT-14.stp
DT-16	1	25.4	22.35	1-3/8	34.92	1-1/2	38.1	31.24	26.41	36.83	49.02	[3D]DT-16.stp
DT-20	1-1/4	31.75	27.68	1-11/16	42.86	1-7/8	47.63	41.14	38.86	44.5	66.54	[3D]DT-20.stp
DT-24	1-1/2	38.1	33.9	2	50.8	2-1/4	57.15	50.03	45.21	50.8	77.97	[3D]DT-24.stp
DT-32	2	50.8	45.97	2-3/4	69.85	3	76.2	67.56	62.73	69.8	107.18	[3D]DT-32.stp

Connects metric tube
Part No.	Tube O.D. D	E Min.	Width across flat				A	B	ℓ	L	Download
Part No.	Tube O.D. D	E Min.	h		H		A	B	ℓ	L	Download
DT-2M	2	1.7	9.5		12		12.9	15.3	15.7	22.3	[3D]DT-2M.stp
DT-3M	3	2.4	9.5		12		12.9	15.3	15.7	22.3	[3D]DT-3M.stp
DT-4M	4	2.4	12.7		12		13.7	16.1	18.8	25.4	[3D]DT-4M.stp
DT-6M	6	4.8	12.7		14		15.3	17.7	19.6	27	[3D]DT-6M.stp
DT-8M	8	6.4	14.3		16		16.2	18.6	21.3	28.8	[3D]DT-8M.stp
DT-10M	10	7.9	17.5		19		17.2	19.5	23.9	31.5	[3D]DT-10M.stp
DT-12M	12	9.5	20.6		22		22.8	22	25.9	36	[3D]DT-12M.stp
DT-15M	15	11.9	25.4		25		24.4	22	28.7	38.8	[3D]DT-15M.stp
DT-16M	16	12.7	25.4		25		24.4	22	28.7	38.8	[3D]DT-16M.stp
DT-18M	18	15.1	27		30		24.4	22	29.7	39.8	[3D]DT-18M.stp
DT-20M	20	15.9	34.92		32		26	22	32.5	42.6	[3D]DT-20M.stp
DT-22M	22	18.3	34.92		32		26	22	32.5	42.6	[3D]DT-22M.stp
DT-25M	25	21.8	34.92		38		31.3	26.5	36.8	49.1	[3D]DT-25M.stp
DT-28M	28	21.8	41		46		36.6	36.6	43.2	64	[3D]DT-28M.stp
DT-32M	32	28.6	46		50		42	41.6	49.3	72.3	[3D]DT-32M.stp
DT-38M	38	33.7	50.8		60		49.4	47.9	56.4	84	[3D]DT-38M.stp
DT-42M	42	36.8	60		65		49.3	47.2	55	82.5
DT-50M	50	45.2	70		76		67.2	62.5	69.9	107
